Description

Price

1

CYLINDER HEAD ASSY

8ES-11101-02-00

$1,562.99

2

GUIDE, INTAKE VALVE

5JW-11133-10-00

$75.99

3

CIRCLIP(1AA)

93440-09141-00

$2.29

4

PLUG, STRAIGHT SCREW

90340-27001-00

$19.99

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

. BOLT, FLANGE

90105-06026-00

Unavailable

7

BOLT, FLANGE

95022-08012-00

$12.49

8

GASKET

90430-08119-00

$6.62

9

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

10

BOLT, WITH WASHER

90119-10004-00

$12.49

11

COVER, CYLINDER HEAD 1

8GM-11191-00-00

Unavailable

12

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

13

GASKET, HEAD COVER 1

8ES-11193-00-00

Unavailable

14

PLUG, OIL

3Y1-15363-10-00

$18.49

15

O-RING (646)

93210-19123-00

Unavailable

16

PIPE, BREATHER 1

8GM-11166-00-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

BOLT(4BP)

90109-066F0-00

Unavailable

19

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

20

GASKET, CYLINDER HEAD 1

8ES-11181-00-00

Unavailable

21

BOLT, SOCKET

91317-06065-00

Unavailable

22

PIPE, OIL 1

8ES-13416-00-00

Unavailable

23

CLIP

90467-100A1-00

Unavailable

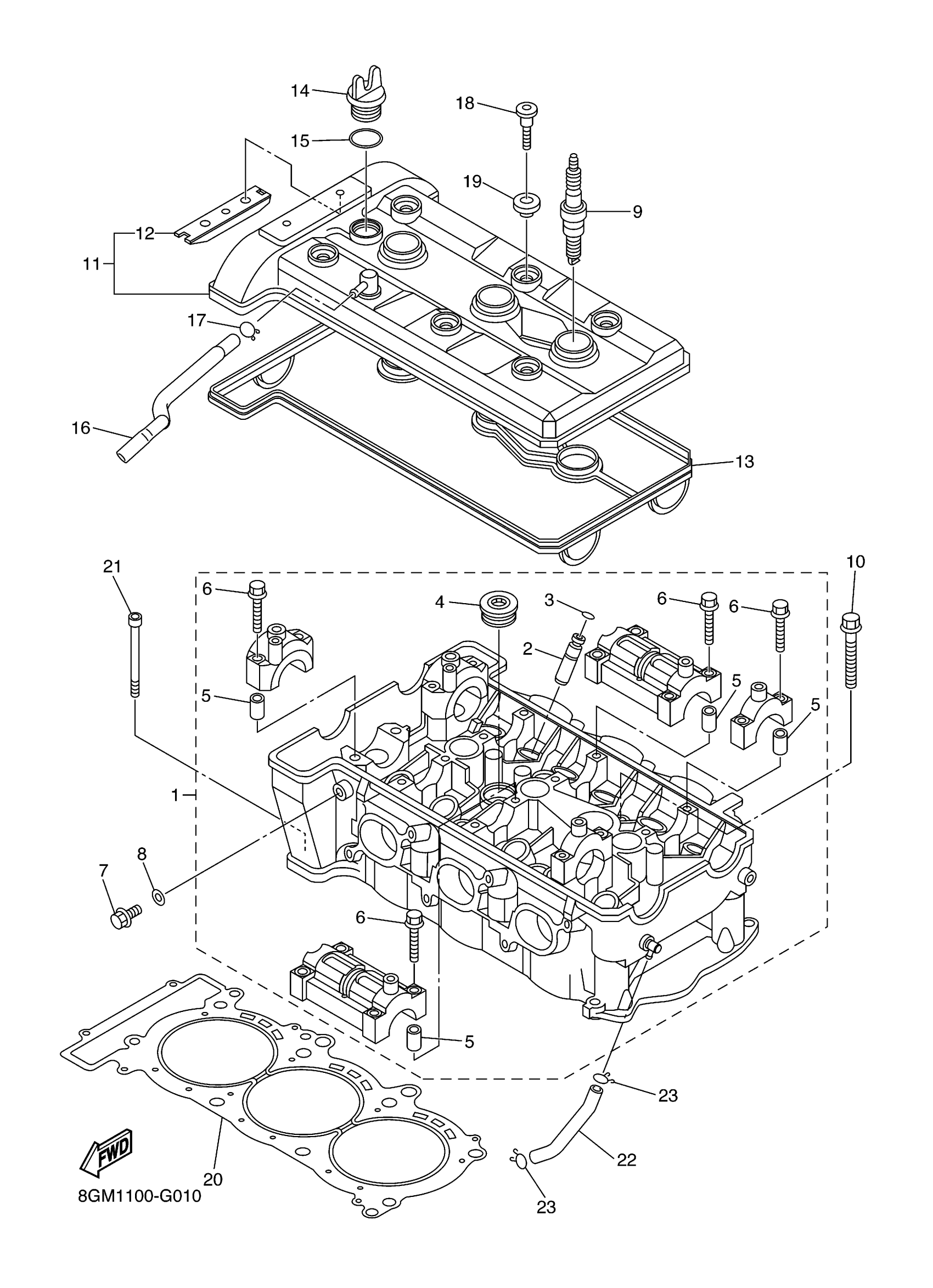

Yamaha RS90RXB (RS VECTOR) 8GM1 2008 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

GUIDE, INTAKE VALVE

CIRCLIP(1AA)

PLUG, STRAIGHT SCREW

PIN, DOWEL(3XW)

. BOLT, FLANGE

BOLT, FLANGE

GASKET

CR8E NGK SPLUG 4PK

BOLT, WITH WASHER

COVER, CYLINDER HEAD 1

GUIDE, STOPPER 2

GASKET, HEAD COVER 1

PLUG, OIL

O-RING (646)

PIPE, BREATHER 1

CLIP

BOLT(4BP)

RUBBER, MOUNT 1

GASKET, CYLINDER HEAD 1

BOLT, SOCKET

PIPE, OIL 1

CLIP
