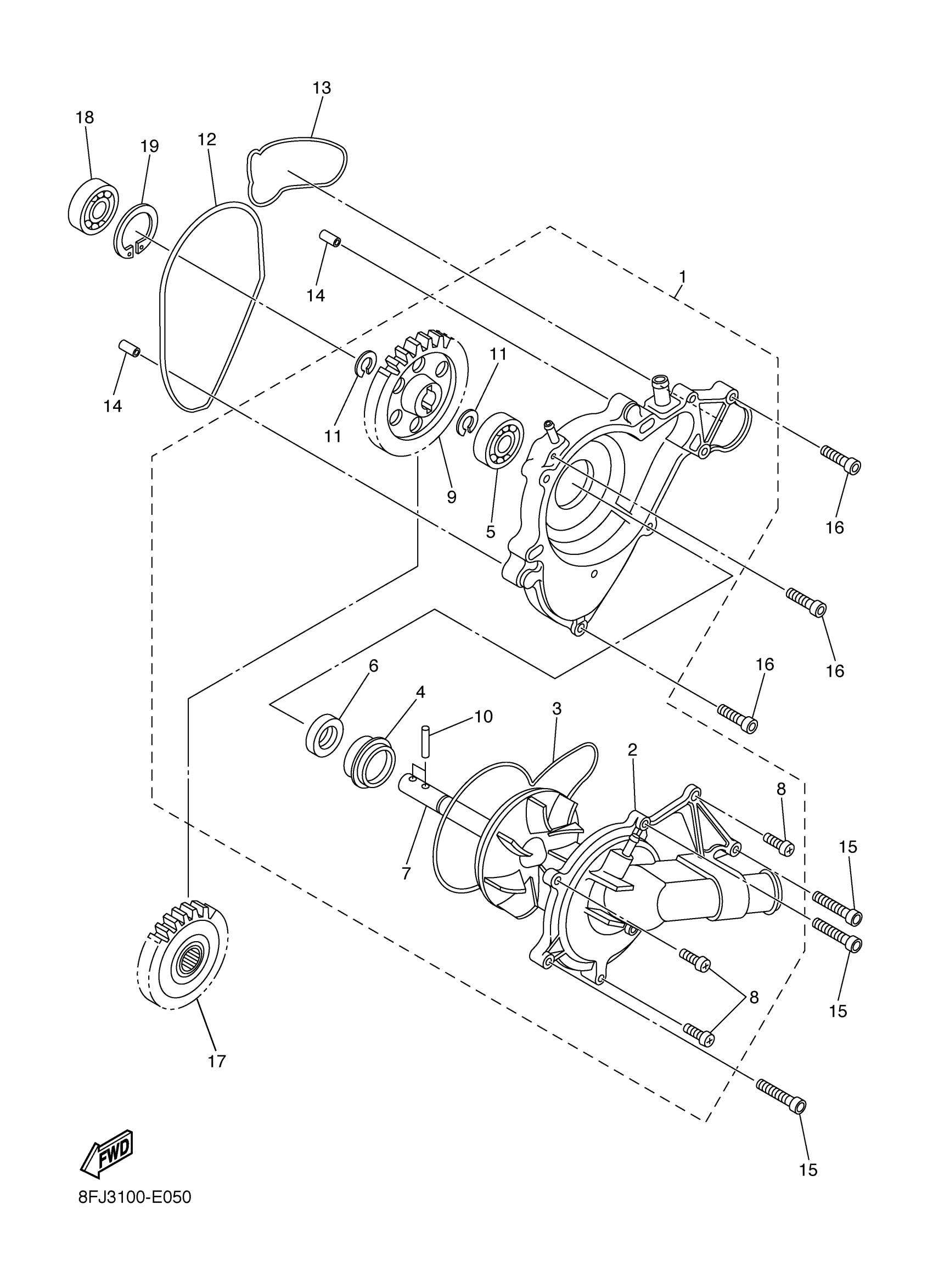

Yamaha RS90RW (VECTOR ER) 8FJ5 2007 WATER PUMP Diagram

WATER PUMP ASSY

8ES-12420-02-00

$370.99

COVER, HOUSING

8ES-12422-00-00

Unavailable

GASKET, HOUSING COVER 1

8ES-12427-00-00

$17.49

SEAL, MECHANICAL

8ES-12438-00-00

$45.99

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

$11.49

IMPELLER SHAFT ASSY

8ES-12450-01-00

$37.99

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

GEAR, IMPELLER SHAFT

8ES-12459-01-00

Unavailable

PIN, DOWEL (409)

93604-16092-00

$3.18

CIRCLIP(2R6)

99001-08600-00

$8.49

GASKET

8ES-12435-00-00

$15.49

GASKET

8ES-12434-00-00

$4.63

PIN, DOWEL

99530-08012-00

Unavailable

BOLT,SOCKET

91317-06040-00

$3.76

BOLT,SOCKET

91317-06025-00

Unavailable

GEAR, DRIVE

8ES-12436-00-00

Unavailable

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

CIRCLIP(2FL)

93420-26077-00

Unavailable
