2007 Yamaha Vector ER (RS90RW) Frame 1 Diagram

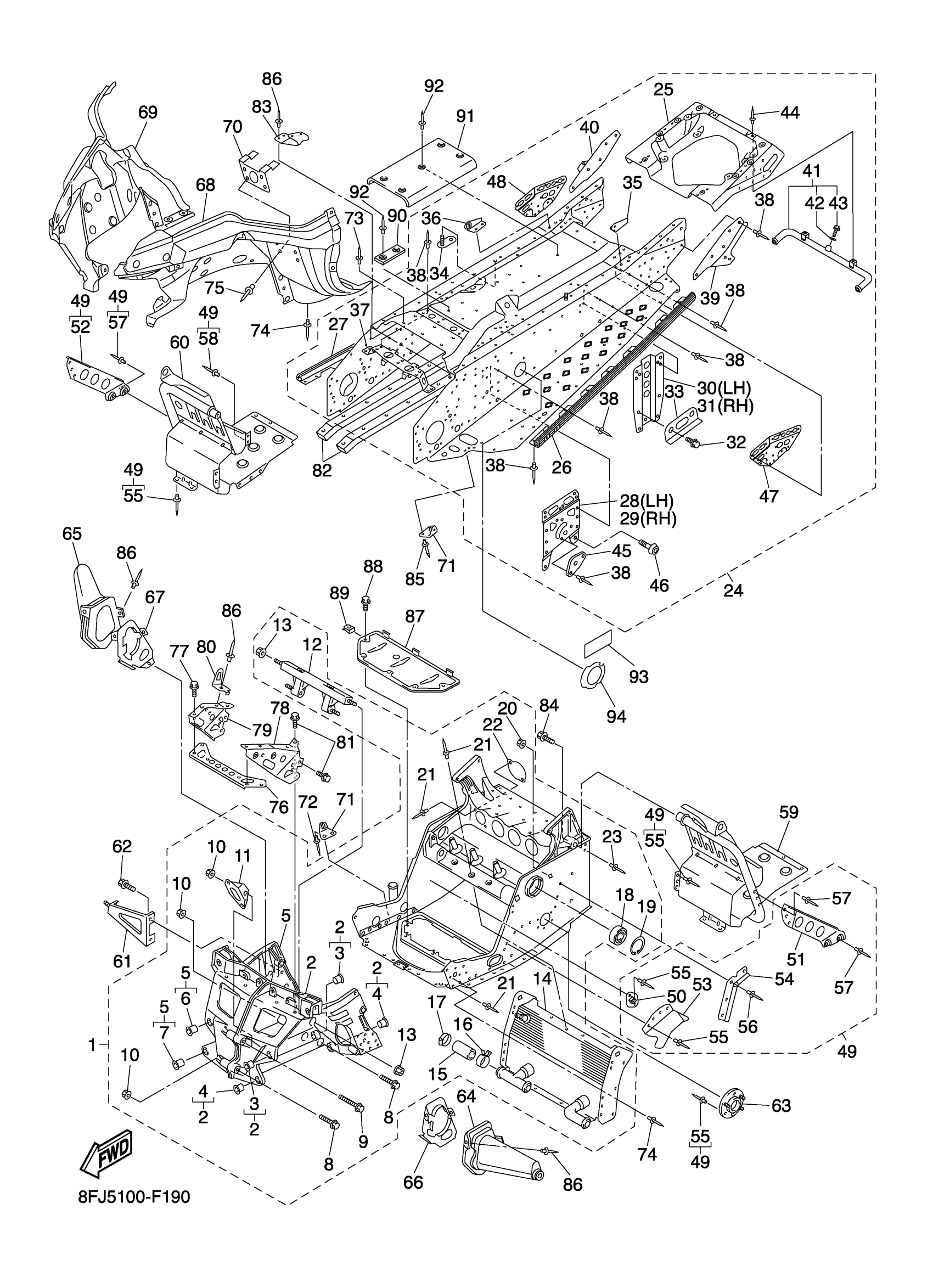

Find the part on the Frame 1 diagram for your 2007 Yamaha Vector ER (RS90RW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FRAME COMP.
8ES-21940-01-00
5
BULKHEAD 2
8FA-W2198-20-00
14
HEAT EXCHANGER ASSY
8FA-12440-00-00
17
HOSE CLAMP ASSY
90450-35001-00
24
REAR FRAME COMP.
8FJ-21950-01-00
28
. BRACKET, MAIN TRACK 1
8FU-21943-00-00
29
BRACKET, MAIN TRACK 2
8FU-21953-00-00
30
BRACKET, RR.TRACK SUSPENTION 1
8FP-21944-00-00
40
PATCH 4
8FU-21964-00-00
46
BOLT, BUTTON
92014-10020-00
48
REINFORCEMENT, SUB FRAME 2
8FP-21938-00-00
49
FRAME CONNECTION KIT
8FK-W2195-10-00
53
COVER 2
8FU-2198G-00-00
68
FRAME UNDER 1
8ES-2196A-20-00
69
FRAME, UNDER 2
8FA-2196E-21-00
75
RIVET, BLIND
90267-47200-00
83
BRACKET 7
8FU-2197N-00-00
87
PROTECTOR, FRAME
8FA-2197E-01-00
