Description

Price

1

IGNITOR UNIT ASSY

8ET-82305-20-00

Unavailable

2

BRACKET, UNIT

8ES-85991-00-00

$13.49

3

BOLT, FLANGE

95817-06016-00

$2.75

4

BOLT, FLANGE

95817-06010-00

$4.73

5

IGNITION COIL ASSY

8ES-82310-00-00

$159.99

6

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

$373.99

7

BOLT, FLANGE

95817-06025-00

Unavailable

8

WIRE HARNESS ASSY

8ES-82590-10-00

Unavailable

8

WIRE HARNESS ASSY

8GF-82590-10-00

Unavailable

9

FUSE

5JJ-82151-20-00

$7.99

10

. FUSE (10A)

67F-82151-40-00

Unavailable

11

FUSE (15A)

67F-82151-50-00

Unavailable

12

. FUSE (3A)

67F-82151-30-00

Unavailable

13

CLAMP(4FM)

90464-15195-00

$4.41

14

CLAMP(4FM)

90464-15195-00

$4.41

15

CLAMP

90464-13077-00

Unavailable

16

RELAY ASSY

5DM-81950-01-00

Unavailable

17

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

18

MAIN SWITCH ASSY

8FJ-82510-00-00

Unavailable

19

SENSOR, SPEED

8FP-83755-01-00

Unavailable

20

NUT, NYLON

95717-08300-00

Unavailable

21

HOUSING, FRONT AXLE

8EK-47551-00-00

Unavailable

22

BUZZER

8CW-83383-00-00

Unavailable

23

BOLT(3JK)

97027-05020-00

Unavailable

24

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

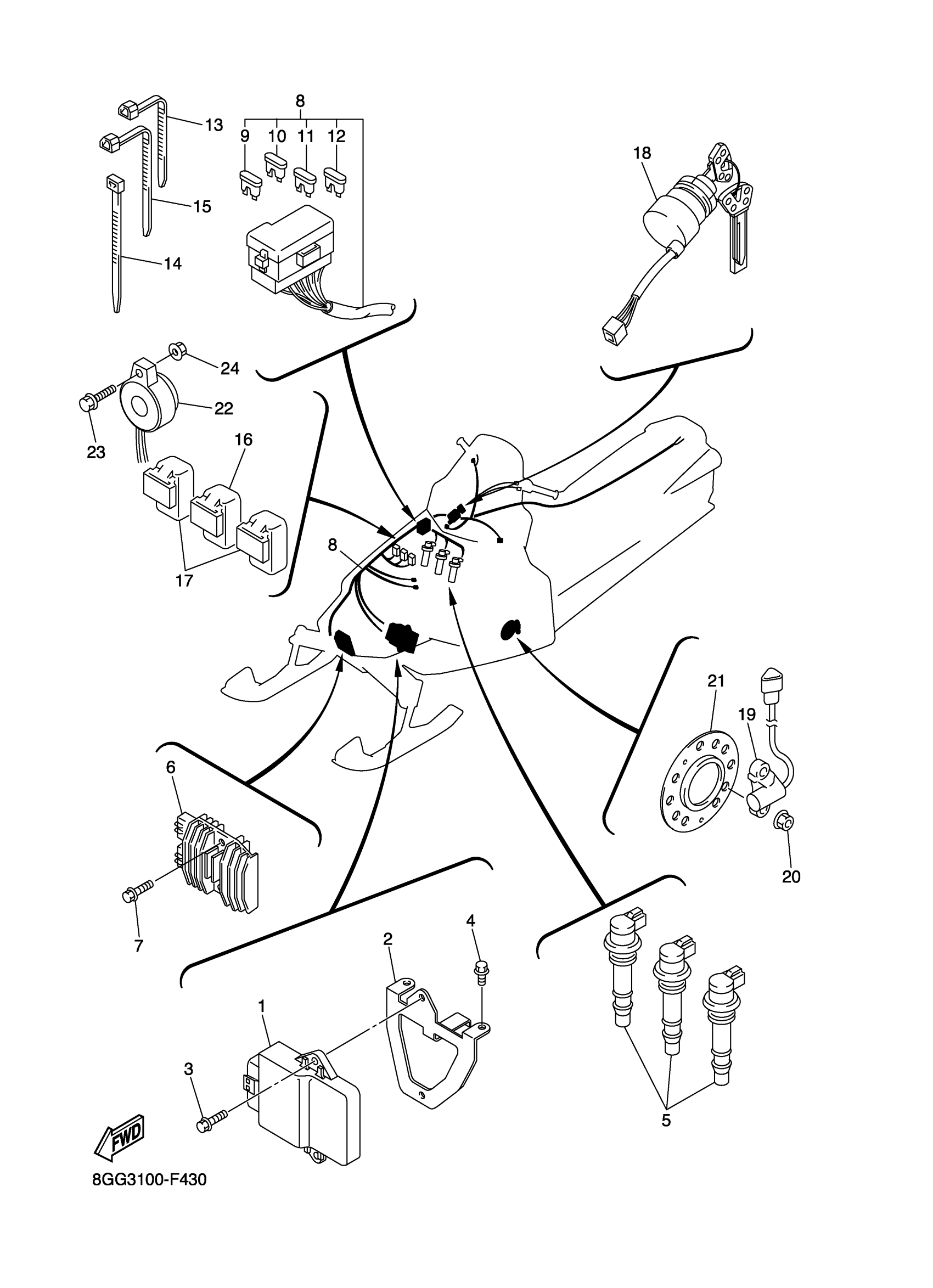

Yamaha RS90RW (VECTOR ER) 8FJ5 2007 ELECTRICAL 1 Diagram

IGNITOR UNIT ASSY

BRACKET, UNIT

BOLT, FLANGE

BOLT, FLANGE

IGNITION COIL ASSY

RECTIFIER & REGULATOR ASSY

BOLT, FLANGE

WIRE HARNESS ASSY

WIRE HARNESS ASSY

FUSE

. FUSE (10A)

FUSE (15A)

. FUSE (3A)

CLAMP(4FM)

CLAMP(4FM)

CLAMP

RELAY ASSY

RELAY ASSY (8DM-11)

MAIN SWITCH ASSY

SENSOR, SPEED

NUT, NYLON

HOUSING, FRONT AXLE

BUZZER

BOLT(3JK)

NUT, FLANGE(3GM)
