2006 Yamaha Vector ER (RS90RL) Windshield Diagram

← All diagrams

Find the part on the Windshield diagram for your 2006 Yamaha Vector ER (RS90RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

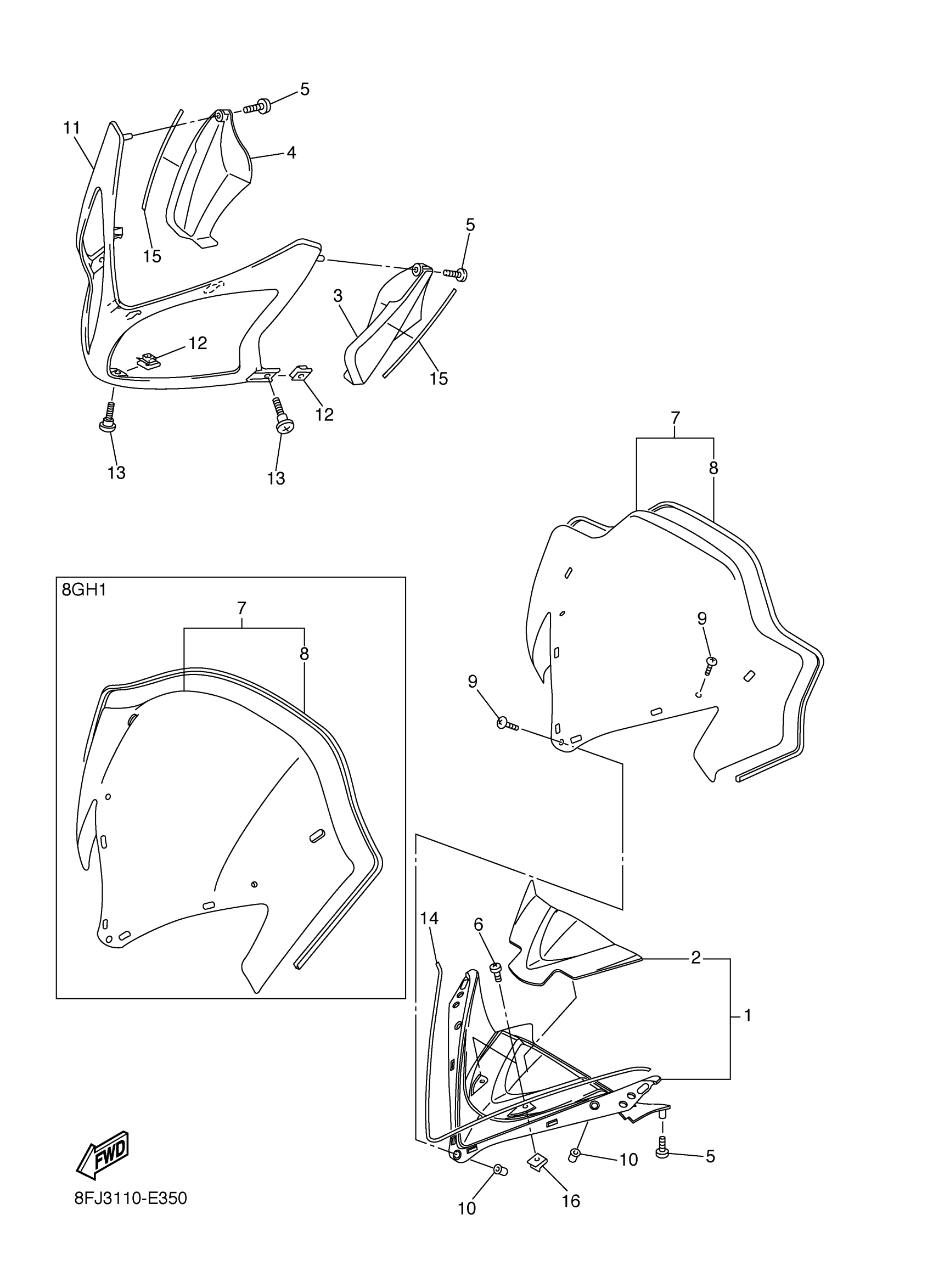

2006 Yamaha Vector ER (RS90RL) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8ES-W7725-00-00

1

$350.58

In stock

1

COVER, HEADLIGHT

8FA-77251-01-00

1

$230.71

In stock

2

DAMPER 1

8ES-77198-00-00

—

$93.40

In stock

3

PLATE 1

8FA-77185-00-00

1

$46.40

In stock

4

PLATE 2

8FA-77186-00-00

1

$46.37

In stock

5

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

6

SCREW, BINDING

98907-06014-00

1

$5.60

In stock

7

WINDSHIELD, CLR W/BLK

SMA-8FA96-30-BK

1
Out of stock

7

WINDSHIELD COMP.

8FJ-K7210-20-00

1
Out of stock

7

WINDSHIELD LOW BLACK

SMA-8GF96-10-BK

1
Out of stock

8

. TRIM, UPPER

8FJ-K7213-00-00

1
Out of stock

8

.. TRIM, UPPER

8GF-K7213-00-00

1
Out of stock

9

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

10

NUT(1KT)

90179-05523-00

1

$4.33

In stock

11

FAIRING

8FA-77231-A1-33

1
Out of stock

12

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

13

SCREW, BINDING

90154-06009-00

—

$2.92

In stock

14

TRIM, LOWER

8FA-77214-00-00

—

$2.92

In stock

15

TRIM 3

8FA-77215-00-00

—

$1.54

In stock

16

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock
