2006 Yamaha Vector ER (RS90RL) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2006 Yamaha Vector ER (RS90RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

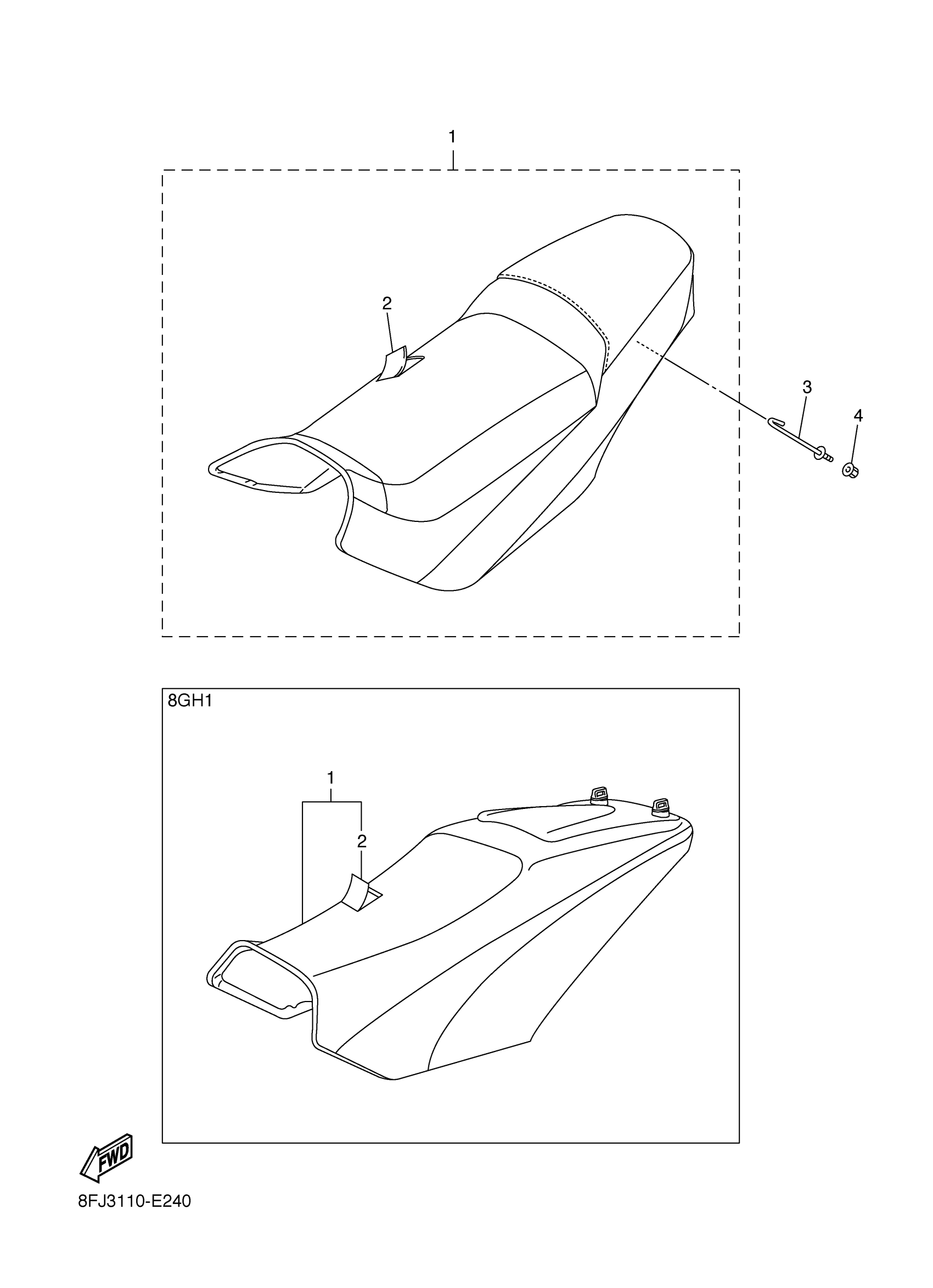

2006 Yamaha Vector ER (RS90RL) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSY (DEEP PURPLISH BLUE METALLIC C)

8ES-24710-40-00

1
Out of stock

1

SINGLE SEAT ASSY (SILVER METALLIC 1)

8ES-24710-50-00

1
Out of stock

1

SINGLE SEAT ASSY

8GF-24710-02-00

1

$1,141.99

In stock

1

SINGLE SEAT ASSY

8GF-24710-11-00

1
Out of stock

2

. SEAT COVER COMP (DEEP PURPLISH BLUE METALLIC C)

8ES-2470F-40-00

1
Out of stock

2

SEAT COVER COMP.

8ES-2470F-50-00

—

$345.34

In stock

2

SEAT COVER COMP.

8FP-2470F-00-00

—

$327.09

In stock

2

SEAT COVER COMP.

8FP-2470F-10-00

—

$404.29

In stock

3

HOOK, SEAT

8FA-24755-00-00

1

$6.45

In stock

4

NUT,SELF-LOCKING

95607-06200-00

1

$10.25

In stock
