2006 Yamaha Vector ER (RS90RL) SKI Diagram

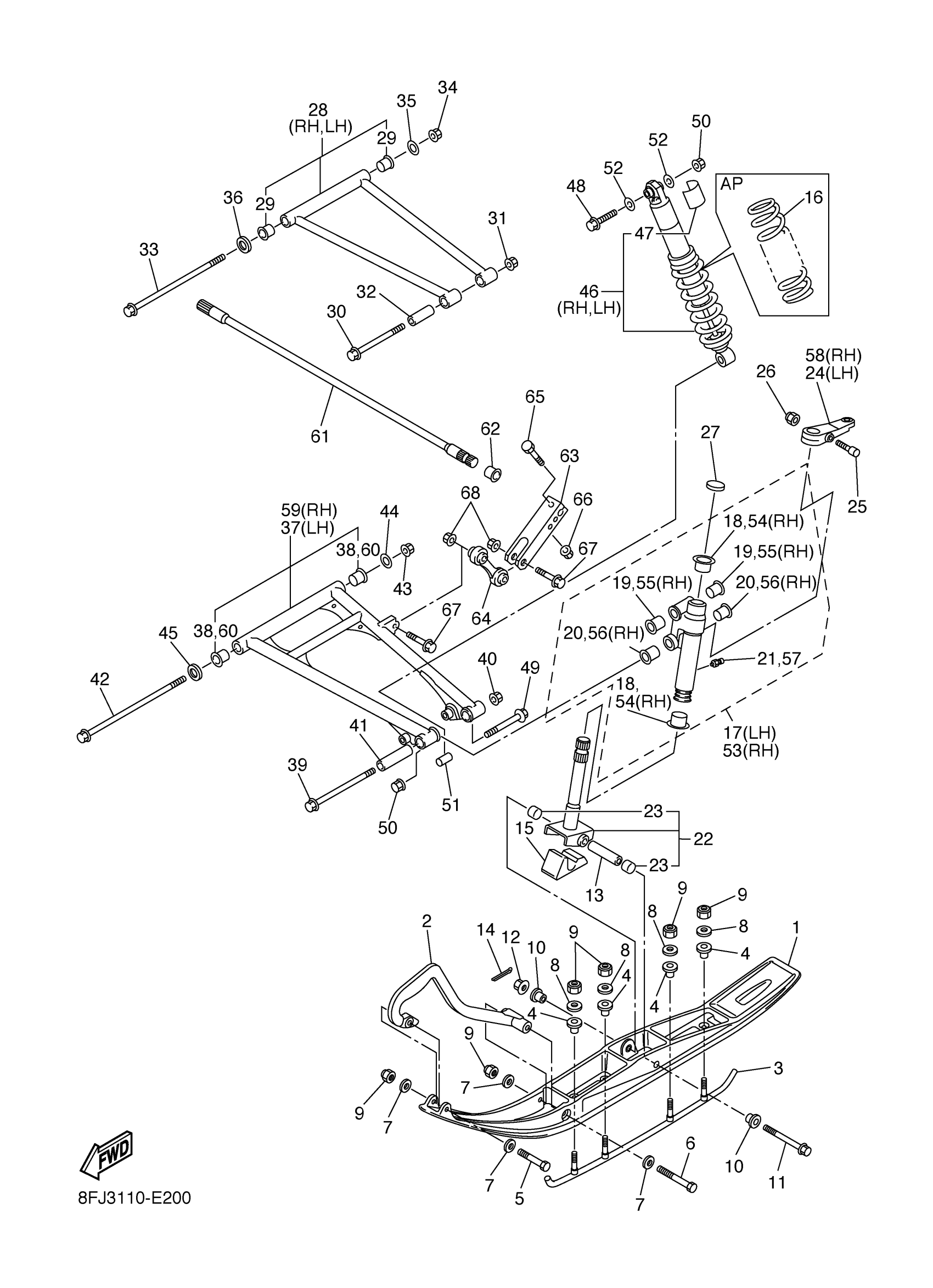

Find the part on the SKI diagram for your 2006 Yamaha Vector ER (RS90RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SKI 1
8ES-23711-00-BK
2
BLUE 8DM HANDLE PLASTIC
8DM-23712-00-BU
2
REINFORCE, HANDLE YELLOW
8DM-23712-00-YL
2
RED 8DM HANDLE PLASTIC
8DM-23712-00-RD
3
SKI RUNNER KIT
SMA-F3731-EK-00
10
. COLLAR 1
8EX-F3754-00-00
16
SPRING ASSY 1
8ES-23760-10-00
17
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-00-00
28
FRONT UPPER ARM COMP. (LEFT)
8JA-23540-30-00
37
FRONT LOWER ARM COMP. (LEFT)
8JA-23570-00-00
37
FRONT LOWER ARM COMP. (LEFT)
8JA-23570-50-00
46
ABSORBER ASSY 1
8GH-F376A-00-00
53
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-00-00
67
BOLT, FLANGE(4FM)
95814-08030-00
