2006 Yamaha Vector Er (RS90RL) Alternate Ski Diagram

← All diagrams

Find the part on the Alternate Ski diagram for your 2006 Yamaha Vector Er (RS90RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

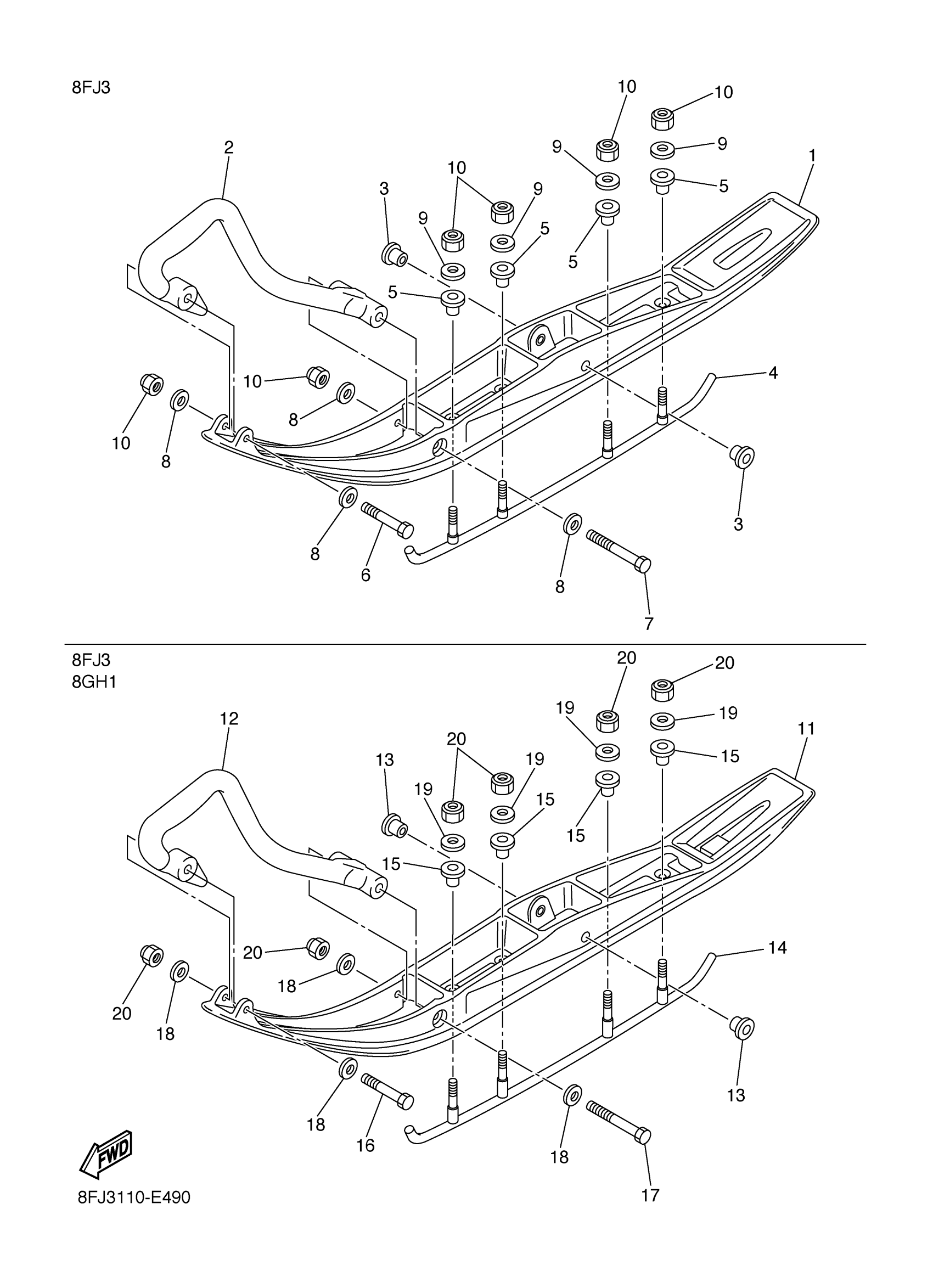

2006 Yamaha Vector Er (RS90RL) Alternate Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1, BLACK

8EX-23711-00-BK

1
Out of stock

2

BLUE 8DM HANDLE PLASTIC

8DM-23712-00-BU

1
Out of stock

2

RED 8DM HANDLE PLASTIC

8DM-23712-00-RD

1
Out of stock

3

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

4

SKI RUNNER KIT

SMA-F3731-EK-00

1
Out of stock

5

BUSH, SKI 1

8EK-F3751-00-00

1
Out of stock

6

BOLT, HEXAGON

97017-08055-00

1
Out of stock

7

BOLT, HEXAGON

97027-08100-00

1
Out of stock

8

WASHER, PLATE (3L7)

90201-08784-00

1
Out of stock

9

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

10

NUT, NYLON

95717-08300-00

1
Out of stock

11

SKI 1, BLACK

8FE-23711-00-BK

1
Out of stock

12

BLUE 8DM HANDLE PLASTIC

8DM-23712-00-BU

1
Out of stock

12

REINFORCE, HANDLE YELLOW

8DM-23712-00-YL

1
Out of stock

12

RED 8DM HANDLE PLASTIC

8DM-23712-00-RD

1
Out of stock

13

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

14

RUNNER

8EN-23731-00-XX

1
Out of stock

15

BUSH, SKI 1

8EK-F3751-00-00

1
Out of stock

16

BOLT, HEXAGON

97017-08055-00

1
Out of stock

17

BOLT, HEXAGON

97027-08100-00

1
Out of stock

18

WASHER, PLATE (3L7)

90201-08784-00

1
Out of stock

19

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

20

NUT, NYLON

95717-08300-00

1
Out of stock
