2006 Yamaha Vector ER (RS90RL) Electrical 2 Diagram

← All diagrams

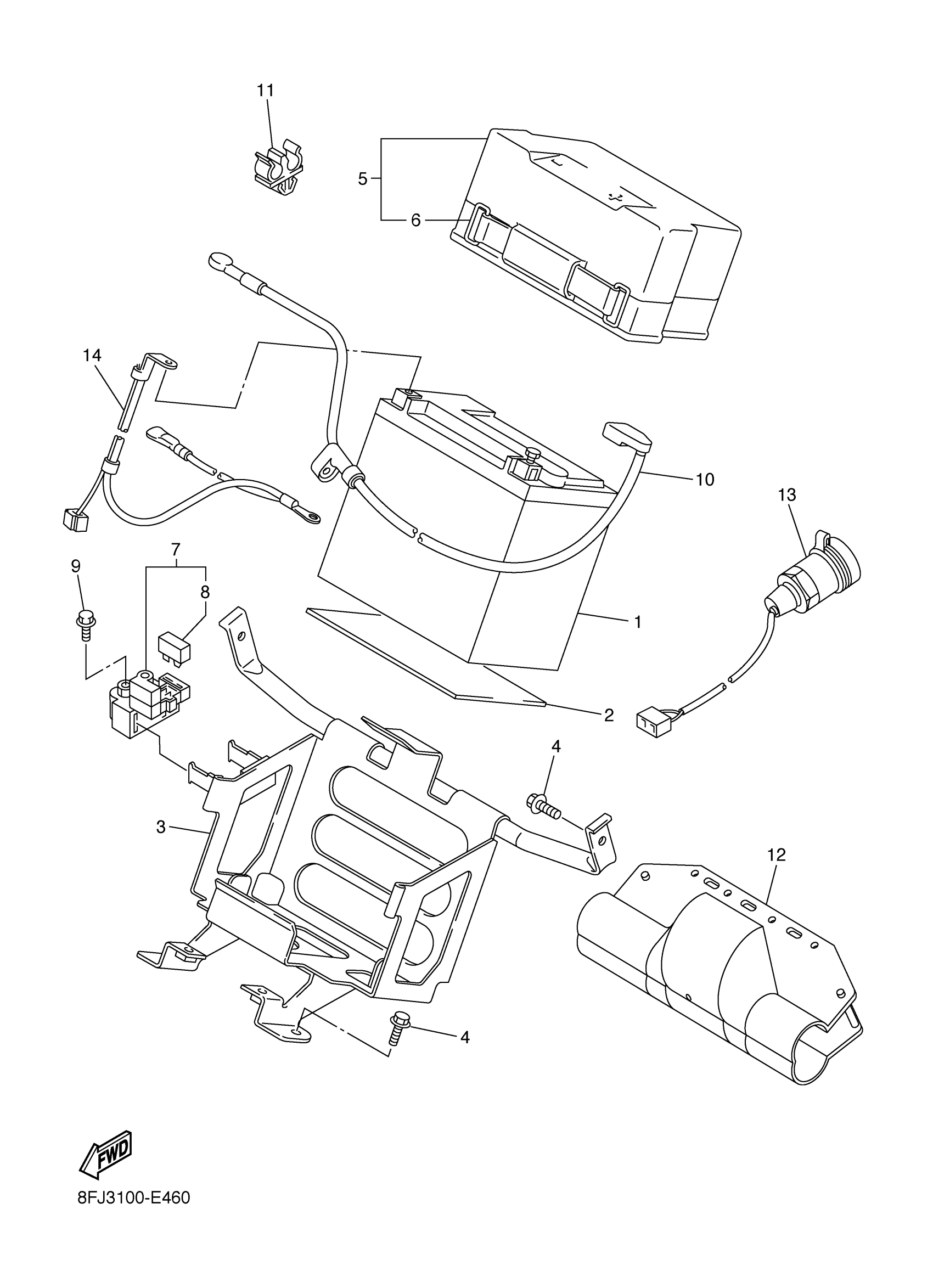

Find the part on the Electrical 2 diagram for your 2006 Yamaha Vector ER (RS90RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha Vector ER (RS90RL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$165.99

In stock

2

SEAT, BATTERY

8FA-82122-00-00

—

$6.11

In stock

3

BRACKET, BATTERY

8ES-2199G-00-00

—

$111.51

In stock

4

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

5

COVER, BATTERY

8FA-82129-00-00

1

$36.38

In stock

6

BAND, BATTERY

8DM-82131-10-00

1

$12.75

In stock

7

1

$128.29

In stock

8

FUSE (12V 30A)

1AE-82151-00-00

1
Out of stock

9

BOLT, SMALL FLANGE

95027-06008-00

1

$5.60

In stock

10

WIRE, PLUS LEAD

8FA-82115-01-00

1
Out of stock

11

CLAMP(87A)

90464-08126-00

1
Out of stock

12

COVER

8FP-8252U-00-00

—

$16.38

In stock

13

TERMINAL COMP.

8FP-8254B-00-00

—

$148.14

In stock

14

WIRE, MINUS LEAD

8ES-82116-01-00

1
Out of stock
