- RS90RK (RS Vector ER) 8FJ1 2005
TRACK SUSPENSION 2

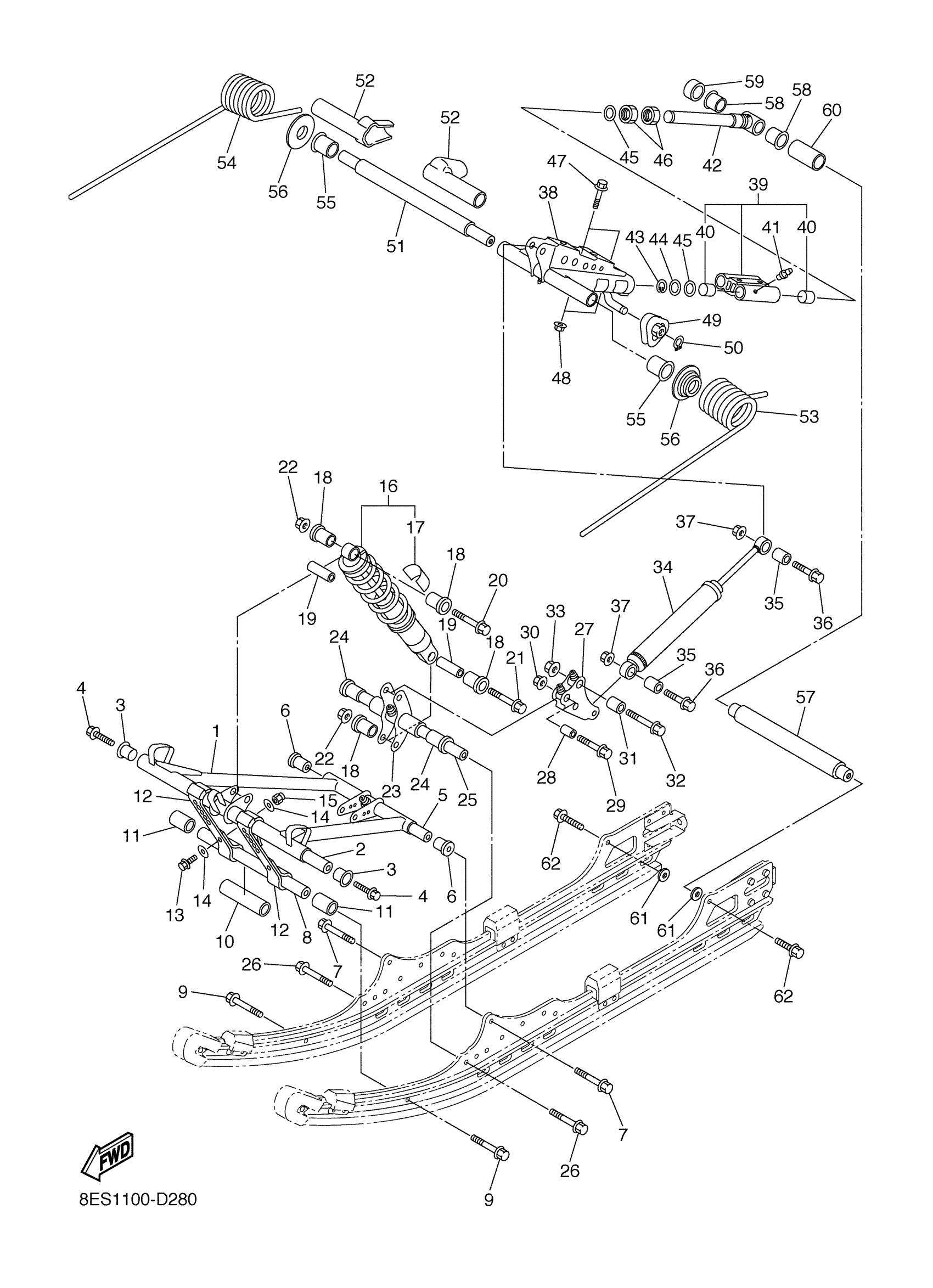

Yamaha RS90RK (RS Vector ER) 8FJ1 2005 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8ES-47331-01-00
Unavailable
2
SHAFT 1
8ES-47465-10-00
$89.99
3
BUSH
90386-22001-00
$7.49
4
BOLT (8V0)
90109-10771-00
$5.60
5
SHAFT 4
8ES-47486-00-00
$40.99
6
COLLAR
90387-10022-00
$18.99
7
BOLT, FLANGE
90105-10092-00
$4.82
8
SHAFT 3
8ES-47485-00-00
$55.99
9
BOLT, FLANGE
90105-10092-00
$4.82
10
COLLAR
90387-19002-00
$7.49
11
COLLAR
90387-19001-00
$8.49
12
STOPPER 1
8ES-47495-00-00
$63.99
13
BOLT, HEXAGON
97017-06025-00
$4.24
14
WASHER, PLATE
90201-06747-00
$8.49
15
NUT, NYLON
95707-06300-00
$3.50
16
SHOCK ABSORBER 2
8GF-47481-00-00
Unavailable
17
LABEL, WARNING
4AA-22259-60-00
Unavailable
18
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
19
COLLAR (8U7)
90387-105G5-00
Unavailable
20
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
21
BOLT(88R)
90101-10738-00
Unavailable
22
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
23
BRACKET, ARM PIVOT
8ES-47349-01-00
Unavailable
24
BUSH
90386-20001-00
Unavailable
25
SHAFT 5
8ES-47487-00-00
Unavailable
26
BOLT, FLANGE
90105-10092-00
$4.82
27
BRACKET 2
8ES-47416-00-00
Unavailable
28
COLLAR
90387-10024-00
Unavailable
29
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
30
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
31
COLLAR
90387-12022-00
Unavailable
32
BOLT, FLANGE
95817-12050-00
Unavailable
33
NUT, U FLANGE
95607-12200-00
Unavailable
34
SHOCK ABSORBER
8ES-47480-00-00
Unavailable
35
COLLAR
90387-10023-00
Unavailable
36
BOLT, FLANGE
95817-10040-00
Unavailable
37
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
38
ARM, PIVOT 2
8ES-47332-01-00
Unavailable
39
STOPPER, CONT. 1
8ES-4745D-00-00
Unavailable
40
BUSH, SOLID
90380-24001-00
Unavailable
41
NIPPLE, GREASE
93700-06M03-00
Unavailable
42
ROD, CONTROL 1
8ES-4745A-00-00
Unavailable
43
CIRCLIP
99009-24400-00
Unavailable
44
WASHER, PLATE
90201-24015-00
Unavailable
45
WASHER, PLATE
90202-25001-00
Unavailable
46
STOPPER, ADJUSTING NUT
8ES-48142-00-00
Unavailable
47
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
48
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
49
HOOK 2
8ES-47447-00-00
Unavailable
50
CIRCLIP(13H)
99009-14400-00
Unavailable
51
SHAFT 2
8ES-47475-01-00
Unavailable
52
PROTECTOR
8ES-47445-00-00
Unavailable
53
SPRING, REAR 1
8GF-47473-00-00
Unavailable
54
SPRING, REAR 2 (K=1600NMM/DEG)
8ES-47474-00-00
Unavailable
55
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
56
PLATE, GUIDE
8ES-47467-00-00
Unavailable
57
SHAFT, PIVOT
8ES-47337-00-00
Unavailable
58
BUSH
90386-25001-00
Unavailable
59
COLLAR
90387-26002-00
Unavailable
60
COLLAR
90387-26003-00
Unavailable
61
WASHER, PLATE
90201-10028-00
Unavailable
62
BOLT, FLANGE
95817-10030-00
Unavailable
