- RS90RK (RS Vector ER) 8FJ1 2005
TRACK DRIVE 2

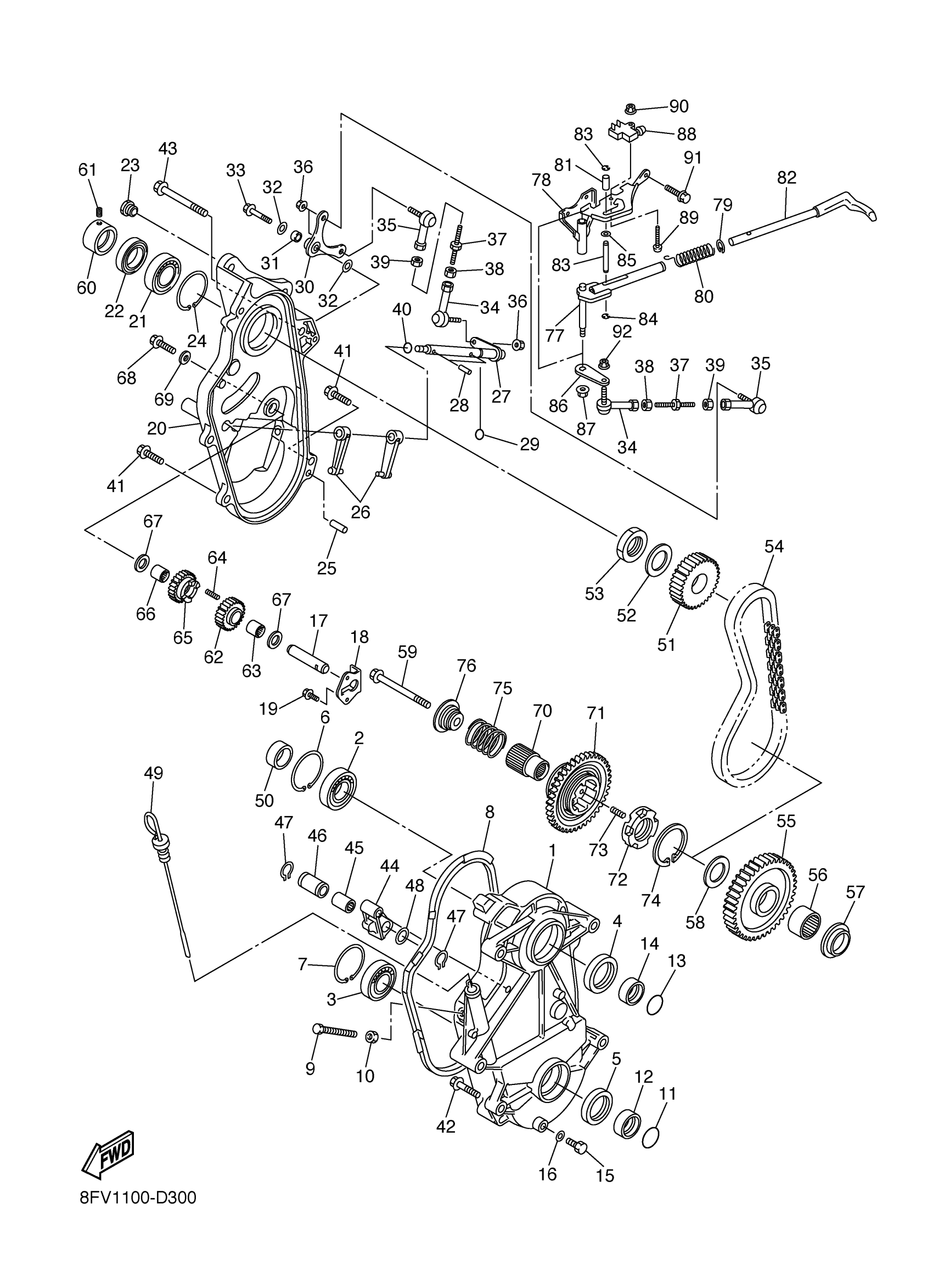

Yamaha RS90RK (RS Vector ER) 8FJ1 2005 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8FA-47541-00-00
Unavailable
2
BEARING (5X5)
93306-20627-00
$75.99
3
BEARING
93306-20592-00
$59.99
4
OIL SEAL
93102-40014-00
$15.99
5
OIL SEAL
93102-35010-00
$23.99
6
CIRCLIP(MF1)
99009-62500-00
$8.49
7
CIRCLIP(26H)
99009-52500-00
$12.49
8
RING, RUBBER HOUSING
8FA-47558-01-00
Unavailable
9
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
10
NUT(6TD)
95337-10600-00
$9.49
11
O-RING (169)
93210-25071-00
$8.49
12
COLLAR(8CJ)
90387-2508C-00
$46.99
13
O-RING (498)
93210-29282-00
$8.49
14
COLLAR
90387-30004-00
Unavailable
15
BOLT(8BC)
97007-08014-00
$8.49
16
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
17
SHAFT, 1
8CW-1761A-00-00
Unavailable
18
PLATE
8CW-47591-00-00
Unavailable
19
BOLT, FLANGE
95817-06016-00
Unavailable
20
CAP, HOUSING
8ER-47543-01-00
Unavailable
21
BEARING
93306-20532-00
Unavailable
22
OIL SEAL
93102-35010-00
$23.99
23
NUT(8CJ)
90179-10679-00
Unavailable
24
CIRCLIP(26H)
99009-52500-00
$12.49
25
PIN, DOWEL (168)
93606-20044-00
Unavailable
26
FORK, SHIFT 1
8GL-18511-01-00
Unavailable
27
SHAFT
8ER-18197-10-00
Unavailable
28
PIN, SPRING(8DA)
91609-50022-00
Unavailable
29
O-RING (328)
93210-12131-00
Unavailable
30
LEVER
8ER-18198-00-00
Unavailable
31
COLLAR
90387-06197-00
Unavailable
32
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
33
BOLT, FLANGE
95817-06030-00
Unavailable
34
JOINT, UNIVERSAL 2
J45-23845-00-00
Unavailable
35
JOINT 2
88T-18157-00-00
Unavailable
36
NUT,SELF-LOCKING
95607-06200-00
Unavailable
37
ROD, SHIFT
26H-18115-00-00
Unavailable
38
NUT, HEXAGON
95314-06600-00
Unavailable
39
NUT (2H9)
90170-06228-00
Unavailable
40
O-RING (4A0)
93210-09418-00
Unavailable
41
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
42
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
43
BOLT,FLANGE
95817-10090-00
Unavailable
44
HOLDER
8ES-47613-00-00
Unavailable
45
BEARING
93311-32685-00
Unavailable
46
COLLAR
90387-22005-00
Unavailable
47
CIRCLIP
99009-26400-00
Unavailable
48
WASHER, PLATE
90201-266P2-00
Unavailable
49
LEVEL, OIL
8FA-47546-01-00
Unavailable
50
COLLAR
90387-30005-00
Unavailable
51
SPROCKET, CHAIN DRIVE
8FA-17682-20-00
Unavailable
52
WASHER, CONICAL SPRING
90208-28001-00
Unavailable
53
NUT
90170-28009-00
Unavailable
54
CHAIN
94890-09068-00
Unavailable
55
SPROCKET, CHAIN DRIVEN
8FB-47587-80-00
Unavailable
56
BEARING, CYLINDRICAL(8DA)
93317-33179-00
Unavailable
57
COLLAR(8DA)
90387-2008G-00
Unavailable
58
WASHER, PLATE(8DA)
90201-320S3-00
Unavailable
59
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
60
COLLAR
90387-25009-00
Unavailable
61
BOLT, SET
90113-06006-00
Unavailable
62
SPROCKET, DRIVE
8FB-17692-00-00
Unavailable
63
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
64
SPRING COMPRESSION278185450000
90501-06022-00
Unavailable
65
REVERSE GEAR SUB-ASSY 1 (RGEAR
8CW-W1714-00-00
Unavailable
66
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
67
WASHER PLATE (3L6)
90201-16245-00
Unavailable
68
BOLT, FLANGE
95817-06016-00
Unavailable
69
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
70
JOURNAL 1
8CW-47571-00-00
Unavailable
71
GEAR, REVERSE WHEEL 1
8CW-17243-00-00
Unavailable
72
DOG, TRANSMISSION SHIFT
8CW-17492-00-00
Unavailable
73
SPRING, COMPRESSION(8DA)
90501-066J5-00
Unavailable
74
CIRCLIP(8DA)
93440-39175-00
Unavailable
75
SPRING, COMPRESSION(8FA1)
90501-260A0-00
Unavailable
76
COLLAR
8CW-47564-01-00
Unavailable
77
ARM, SHIFT
8ER-18112-01-00
Unavailable
78
GUIDE, PLATE STOPPER
8ER-18161-00-00
Unavailable
79
CIRCLIP(13H)
99009-18400-00
Unavailable
80
SPRING, COMPRESSION (8FA1)
90501-130A0-00
Unavailable
81
COLLAR (8FA1)
90387-06059-00
Unavailable
82
KNOB, LEVER
8ER-18174-00-00
Unavailable
83
PIN (8FA1)
90249-06002-00
Unavailable
84
CIRCLIP (J10)
93410-06053-00
Unavailable
85
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
86
PLATE, SHIFT ARM
8ER-1811A-01-00
Unavailable
87
NUT,SELF-LOCKING
95607-06200-00
Unavailable
88
SWITCH
J51-82817-00-00
Unavailable
89
SCREW, BINDING
98907-04020-00
Unavailable
90
NUT, U (7LY)
95617-04100-00
Unavailable
91
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
92
NUT,SELF-LOCKING
95607-06200-00
Unavailable
