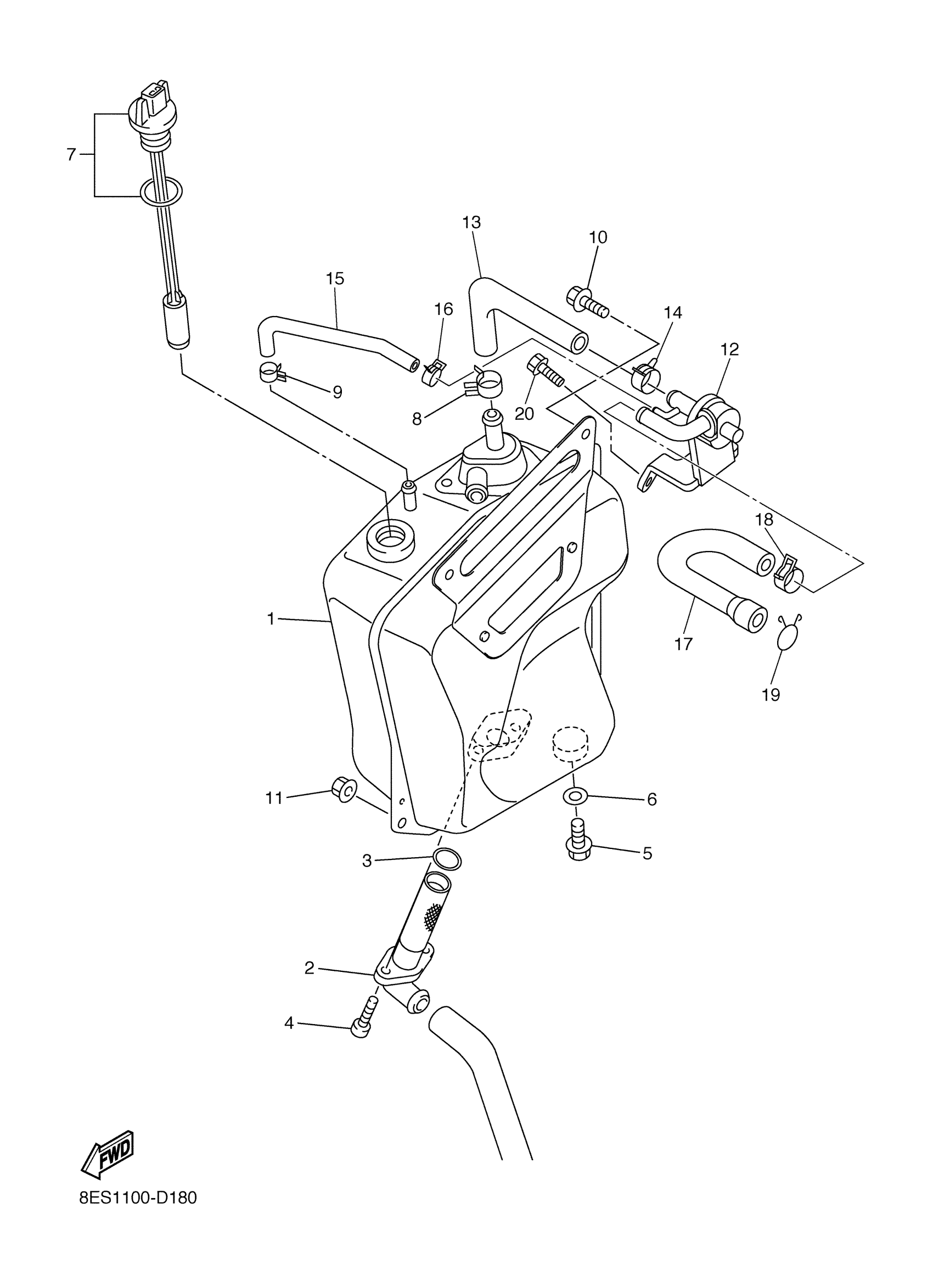

Yamaha RS90RK (RS Vector ER) 8FJ1 2005 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8FG-21751-02-00

$532.97

2

OIL PIPE COMP. 2

8FG-13406-00-00

Unavailable

3

O-RING (603)

93210-19026-00

$6.22

4

BOLT,SOCKET

91317-06016-00

$1.15

5

BOLT, FLANGE

95817-08012-00

$3.71

6

GASKET(3AJ)

90430-08204-00

$6.10

7

OIL LEVEL GAUGE ASSY

8FA-85720-01-00

$79.82

8

CLIP

90468-08104-00

$2.55

9

CLIP (7K7)

90467-11044-00

$4.89

10

BOLT, FLANGE

95817-06016-00

$1.40

11

NUT, SELF-LOCKING

90185-08169-00

$6.62

12

VALVE ASSY.

8ES-13520-00-00

Unavailable

13

PIPE, OIL TANK BREATHER

8ES-21745-00-00

Unavailable

14

CLIP

90468-08104-00

$2.55

15

PIPE, OIL TANK

8ES-2174N-00-00

Unavailable

16

CLIP (7K7)

90467-11044-00

$4.89

17

PIPE 1

8ES-21816-00-00

Unavailable

18

CLIP (23E)

90467-20085-00

Unavailable

19

CLIP (21V)

90467-22080-00

Unavailable

20

BOLT, FLANGE

95817-06020-00

Unavailable
