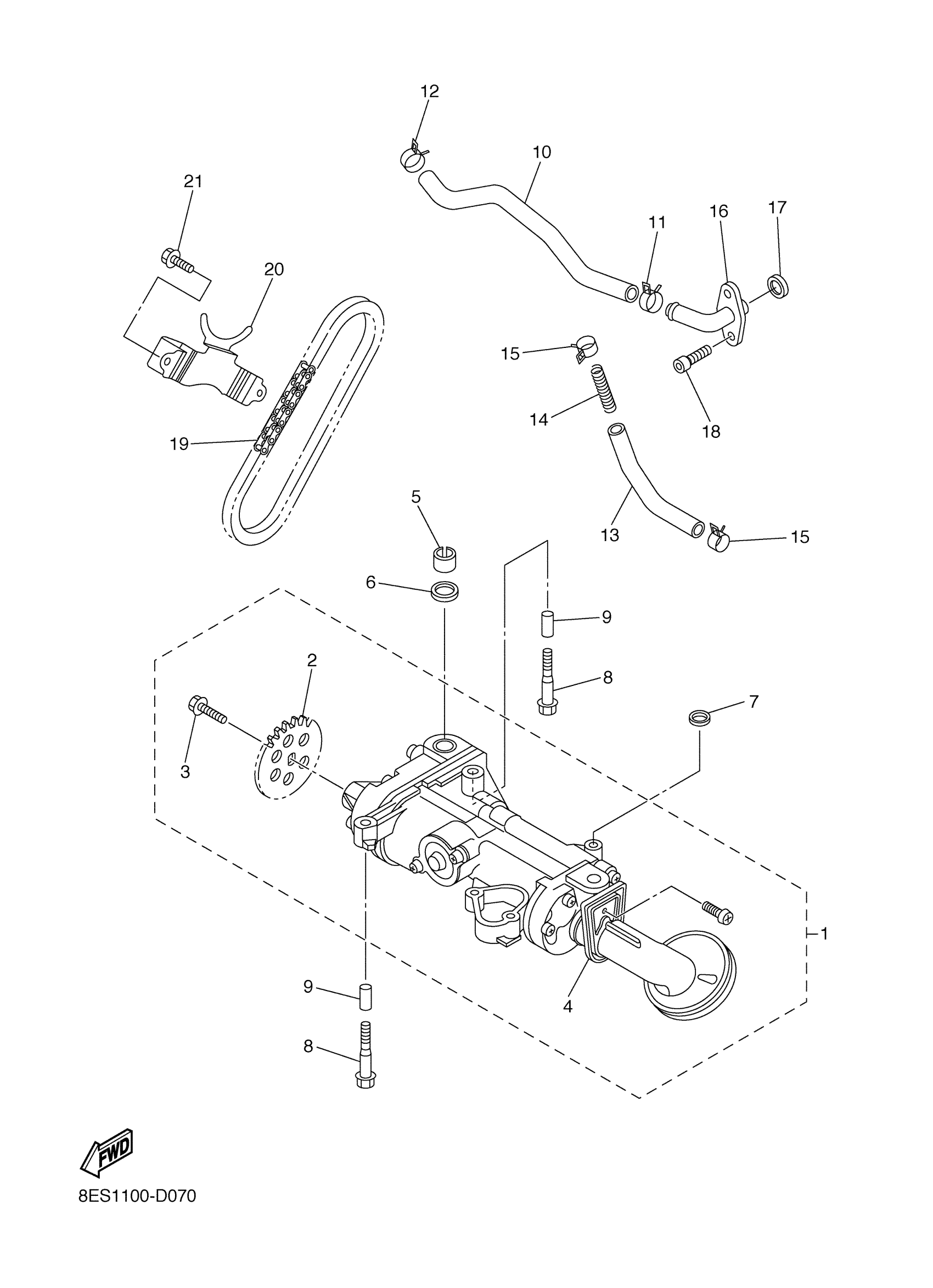

Yamaha RS90RK (RS Vector ER) 8FJ1 2005 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
8ES-13300-00-00
Unavailable
2
SPROCKET, DRIVEN
4XV-13355-00-00
Unavailable
10
HOSE, OIL 1
8ES-13464-00-00
Unavailable
13
HOSE, OIL 2
8ES-13465-00-00
Unavailable
14
SPRING, COMPRESSION
90501-080A1-00
Unavailable
16
CONNECTOR, SUCTION PIPE
8ES-13115-00-00
Unavailable
17
O-RING (26H)
93210-16629-00
Unavailable
18
BOLT,SOCKET
91317-06016-00
Unavailable
19
CHAIN
94580-25064-00
Unavailable
20
HOLDER
8ES-13898-01-00
Unavailable
21
BOLT, FLANGE
95817-06012-00
Unavailable
