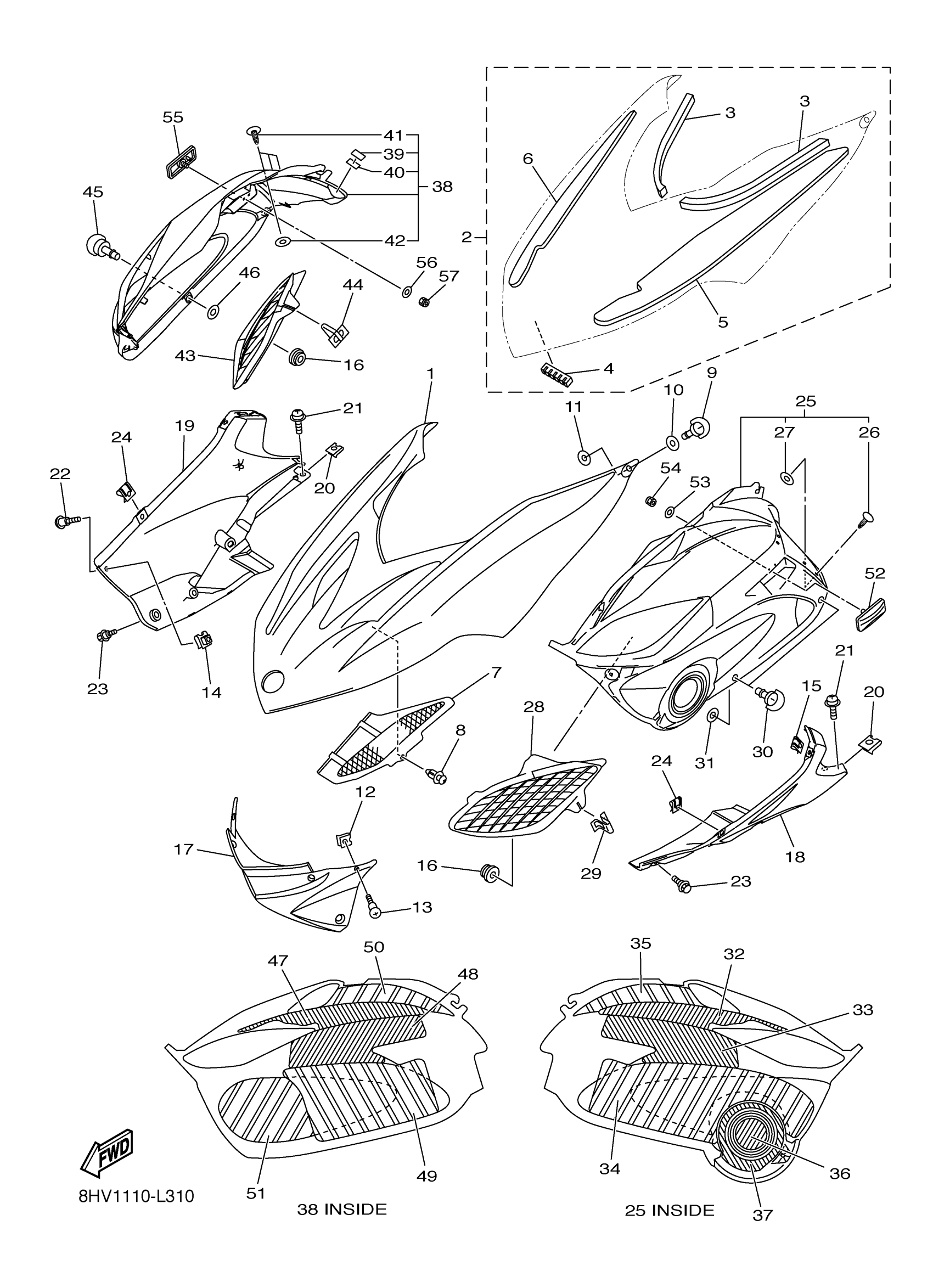

Yamaha RS90PLTFB (RS VECTOR LTX) 8HW7 2015 SHROUD Diagram
#
1
SHROUD
8FP-77111-00-PA
Unavailable
2
LINING SET
8FP-W7726-00-00
$21.99
3
TRIM 1
8FP-77165-00-00
$4.24
4
GUIDE 1
8FP-77123-00-00
$1.43
5
DAMPER, NOISE 11
8FP-77271-00-00
$5.60
6
DAMPER, NOISE 11
8FP-77271-10-00
$5.60
7
LOUVER 3
8FP-77133-00-00
Unavailable
8
RIVET
90269-06081-00
$7.49
9
HEAD
8HG-28386-00-00
$31.99
10
WASHER, SPECIAL 1
8HG-21757-00-00
$1.07
11
WASHER, SPECIAL 1
8HR-21757-00-00
$2.82
12
NUT, SPRING(4ES)
90183-06069-00
Unavailable
13
SCREW, BINDING
90154-06009-00
$4.61
14
NUT, SPRING
90183-06100-00
$10.49
15
PLATE, SPRING
4XV-2177L-01-00
$6.99
16
GROMMET
90480-13019-00
Unavailable
17
PANEL, SUB FRAME 1
8FA-21912-00-00
Unavailable
18
HOOD 1
8GM-21982-00-00
Unavailable
19
HOOD 2
8FP-21983-00-00
Unavailable
20
NUT, SPRING(4ES)
90183-06069-00
Unavailable
21
SCREW, WITH WASHER
90159-06011-00
Unavailable
22
SCREW, BINDING
90154-06009-00
$4.61
23
BOLT
90109-06220-00
Unavailable
24
PLATE, SPRING
4XV-2177L-01-00
$6.99
25
HOOD ASSY 3
8GM-2197A-02-00
Unavailable
26
. RIVET
90269-07064-00
Unavailable
27
WASHER, PLATE
90202-07002-00
Unavailable
28
LOUVER 5
8FP-77109-00-00
Unavailable
29
CLIP
90468-06001-00
Unavailable
30
HEAD
8HG-28386-00-00
$31.99
31
WASHER, SPECIAL 1
8HR-21757-00-00
$2.82
32
DAMPER, NOISE 12
8FP-77272-00-00
Unavailable
33
DAMPER, NOISE 13
8FP-77273-00-00
Unavailable
34
DAMPER, NOISE 14
8GM-77274-00-00
Unavailable
35
DAMPER, SHROUD
8FP-77196-00-00
Unavailable
36
DAMPER, NOISE 11
8GM-77271-00-00
Unavailable
37
DAMPER, NOISE 12
8GM-77272-00-00
Unavailable
38
HOOD ASSY 4
8FR-2198A-03-00
Unavailable
39
TAPE 2
8FR-7717F-00-00
Unavailable
40
PAD 1
8FR-77151-00-00
Unavailable
41
. RIVET
90269-07064-00
Unavailable
42
WASHER, PLATE
90202-07002-00
Unavailable
43
LOUVER 6
8FP-77108-00-00
Unavailable
44
CLIP
90468-06001-00
Unavailable
45
HEAD
8HG-28386-00-00
$31.99
46
WASHER, SPECIAL 1
8HR-21757-00-00
$2.82
47
DAMPER, NOISE 15
8FP-77275-00-00
Unavailable
48
DAMPER, NOISE 16
8FP-77276-01-00
Unavailable
49
DAMPER, NOISE 17
8FP-77277-01-00
Unavailable
50
DAMPER, SHROUD
8FP-77196-10-00
Unavailable
51
DAMPER
8FP-78316-10-00
Unavailable
52
PLATE 1
8FR-77185-00-00
Unavailable
53
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
54
NUT, NYLON
95707-05300-00
Unavailable
55
PLATE 1
8FR-77185-00-00
Unavailable
56
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
57
NUT, NYLON
95707-05300-00
Unavailable
