- RS90PLTBR (VECTOR LTX) 8HW10 2012
TRACK SUSPENSION 2

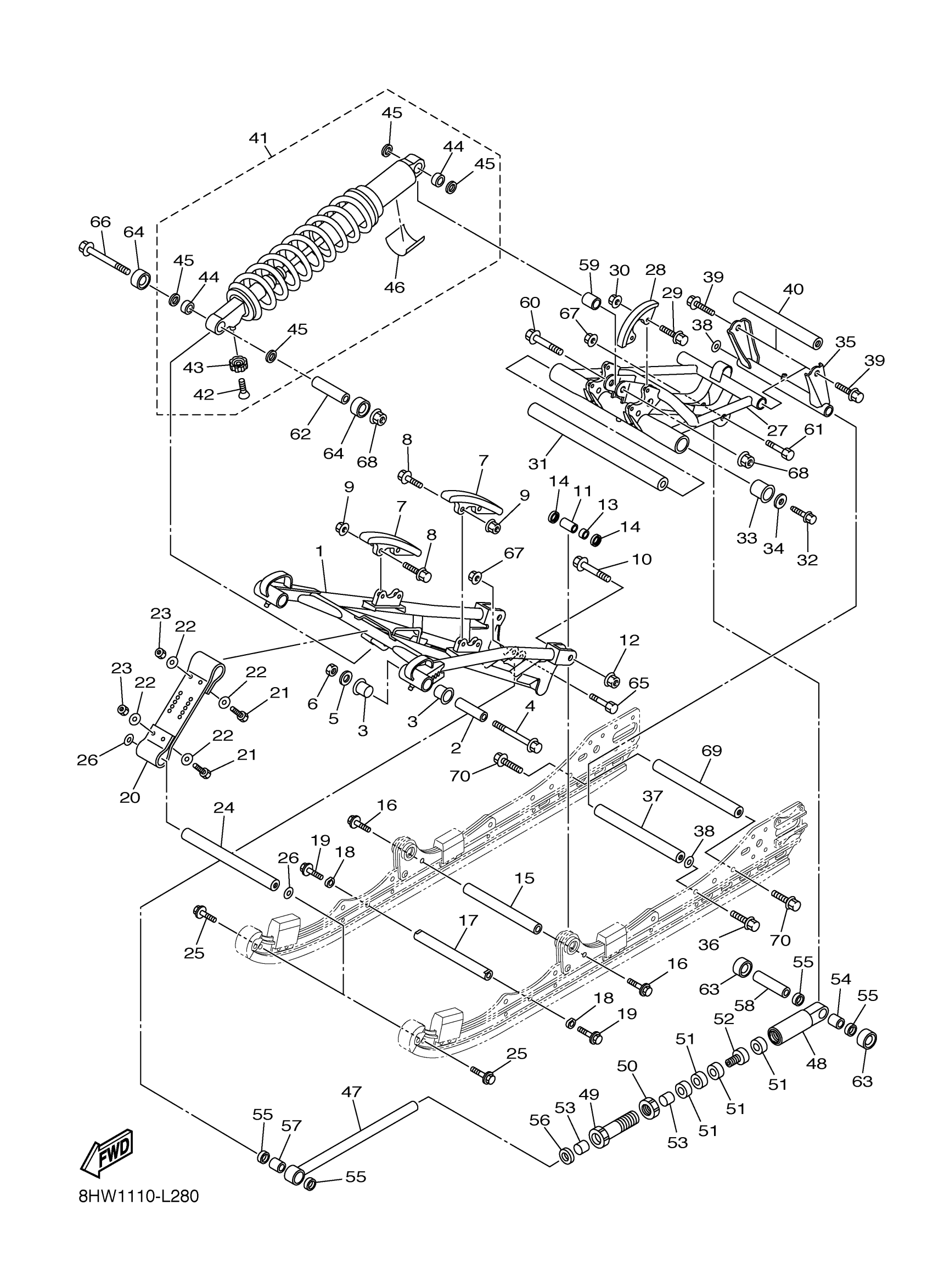

Yamaha RS90PLTBR (VECTOR LTX) 8HW10 2012 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8JA-47331-00-00
Unavailable
2
COLLAR
90387-10042-00
$21.99
3
BUSH
90386-22002-00
$21.99
4
BOLT, FLANGE
90105-10150-00
$12.49
5
WASHER, PLATE
90201-10038-00
$5.60
6
NUT, SELF-LOCKING
90185-10012-00
$9.49
7
RUNNER, SLIDING 2
8F3-47422-01-00
$18.49
8
BOLT, FLANGE
95817-06020-00
$3.81
9
NUT, U FLANGE
95604-06200-00
$8.49
10
BOLT, FLANGE
90105-10390-00
$7.49
11
COLLAR
90387-10095-00
$19.99
12
NUT, SELF-LOCKING
90185-10011-00
$5.60
13
BEARING, CYLINDRICAL(4PT)
93315-31750-00
$37.99
14
OIL SEAL
93109-17071-00
$7.49
15
SHAFT 4
8JA-47486-00-00
Unavailable
16
BOLT, FLANGE
90105-10386-00
Unavailable
17
SHAFT 4
8GL-47486-00-00
Unavailable
18
SPACER
8GL-47341-00-00
Unavailable
19
BOLT, FLANGE
95817-10030-00
Unavailable
20
STOPPER 1
8GM-47495-00-00
Unavailable
21
BOLT, HEXAGON
97017-06025-00
Unavailable
22
WASHER, PLATE
90201-06081-00
Unavailable
23
NUT, NYLON
95707-06300-00
Unavailable
24
SHAFT 3
8FU-47485-00-00
Unavailable
25
BOLT, FLANGE
95817-10030-00
Unavailable
26
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
27
ARM, PIVOT 2
8JB-47332-01-00
Unavailable
28
SLIDER 1
8FT-47441-10-00
Unavailable
29
BOLT, FLANGE
95817-06020-00
$3.81
30
NUT, U FLANGE
95604-06200-00
$8.49
31
SHAFT 2
8FT-47475-00-00
Unavailable
32
BOLT
90109-10032-00
Unavailable
33
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
34
WASHER, PLATE
90201-10039-00
Unavailable
35
BRACKET 3
8FU-47417-11-00
Unavailable
36
BOLT, FLANGE
95817-10030-00
Unavailable
37
SHAFT 3
8FU-47485-00-00
Unavailable
38
WASHER PLATE (789)
90201-10136-00
Unavailable
39
BOLT, FLANGE
95817-10030-00
Unavailable
40
SHAFT 4
8FU-47486-00-00
Unavailable
41
SHOCK ABSORBER
8HW-47480-00-00
Unavailable
42
SCREW, OVAL HEAD
98680-03008-00
Unavailable
43
KNOB (TEN)
5JW-2319W-00-00
Unavailable
44
BEARING
93315-31758-00
Unavailable
45
OIL SEAL
93109-17071-00
$7.49
46
LABEL, WARNING
4AA-22259-60-00
Unavailable
47
ROD, CONTROL 1
8JA-4745A-00-00
Unavailable
48
ROD, CONTROL 3
8JA-4745C-00-00
Unavailable
49
ROD, CONTROL 2
8JA-4745B-00-00
Unavailable
50
NUT
8JA-47368-00-00
Unavailable
51
WASHER
8GM-47384-10-00
Unavailable
52
STOPPER, CONT. 1
8FU-4745D-00-00
Unavailable
53
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
54
BEARING, CYLINDRICAL(1FN)
93315-31841-00
Unavailable
55
OIL SEAL
93109-18001-00
Unavailable
56
SEAL, TRIM DUST
C68-43822-00-00
Unavailable
57
COLLAR
90387-12051-00
Unavailable
58
COLLAR
90387-12052-00
Unavailable
59
COLLAR
90387-1012A-00
Unavailable
60
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
61
BOLT
90101-12043-00
Unavailable
62
COLLAR
90387-10034-00
Unavailable
63
SPACER
8JA-47341-00-00
Unavailable
64
SPACER
8FU-47341-00-00
Unavailable
65
BOLT
90101-12042-00
Unavailable
66
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
67
NUT, SELF-LOCKING
90185-12007-00
Unavailable
68
NUT, S/L FLANGE
95602-10200-00
Unavailable
69
SHAFT 3
8ES-47485-00-00
Unavailable
70
BOLT, FLANGE
90105-10209-00
Unavailable
