2012 Yamaha Vector LTX (RS90PLTBR) Electrical 3 Diagram

← All diagrams

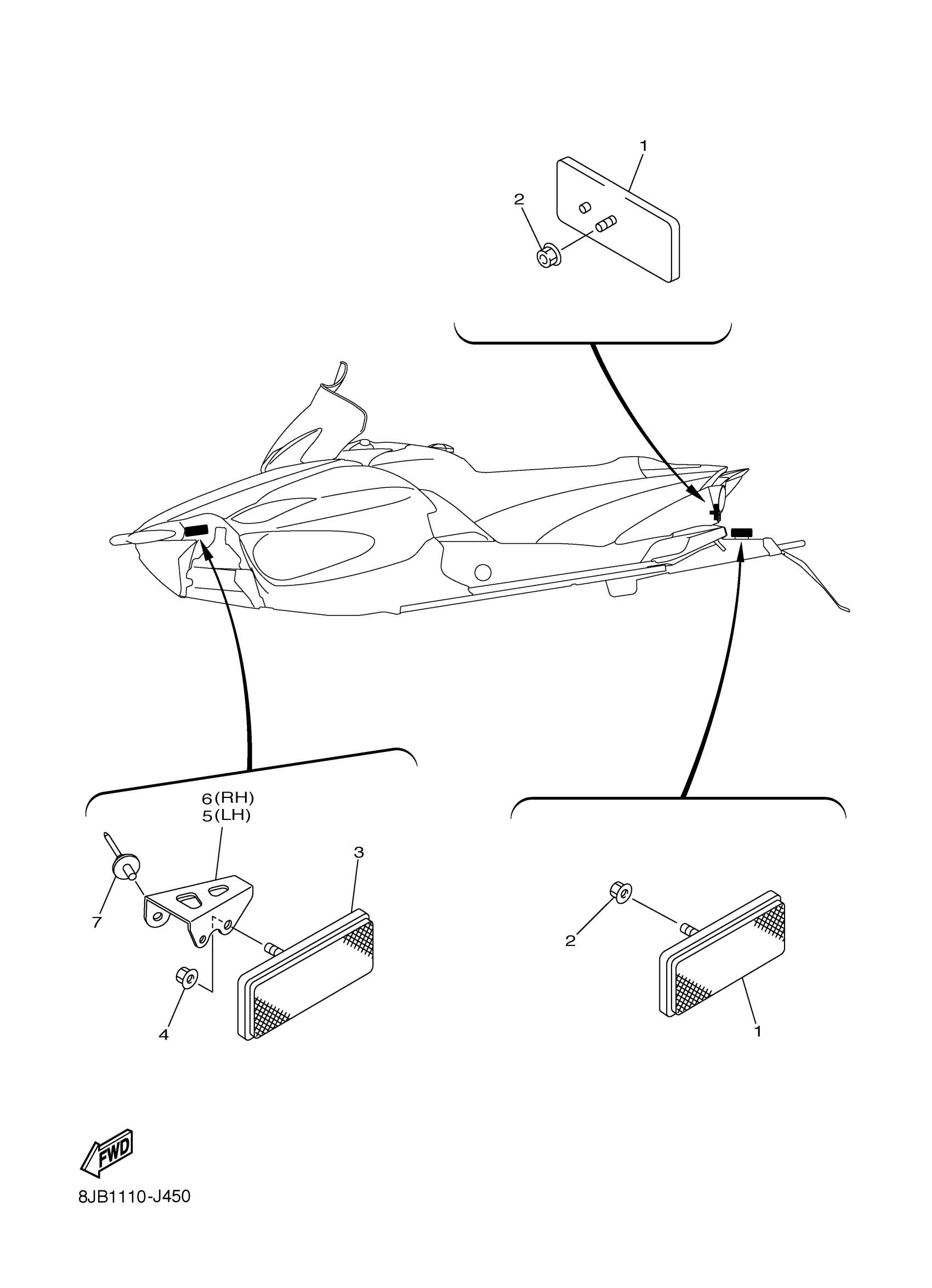

Find the part on the Electrical 3 diagram for your 2012 Yamaha Vector LTX (RS90PLTBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Vector LTX (RS90PLTBR) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

2

NUT, FLANGE

95702-05500-00

1

$0.74

In stock

3

REFLECTOR ASSY

8GM-85110-00-00

1
Out of stock

4

NUT, FLANGE

95702-05500-00

1

$0.74

In stock

5

BRACKET 1

8FR-77421-00-00

—

$9.22

In stock

6

BRACKET 2

8FR-77422-00-00

—

$8.18

In stock

7

RIVET, BLIND(41R)

90267-48104-00

1
Out of stock
