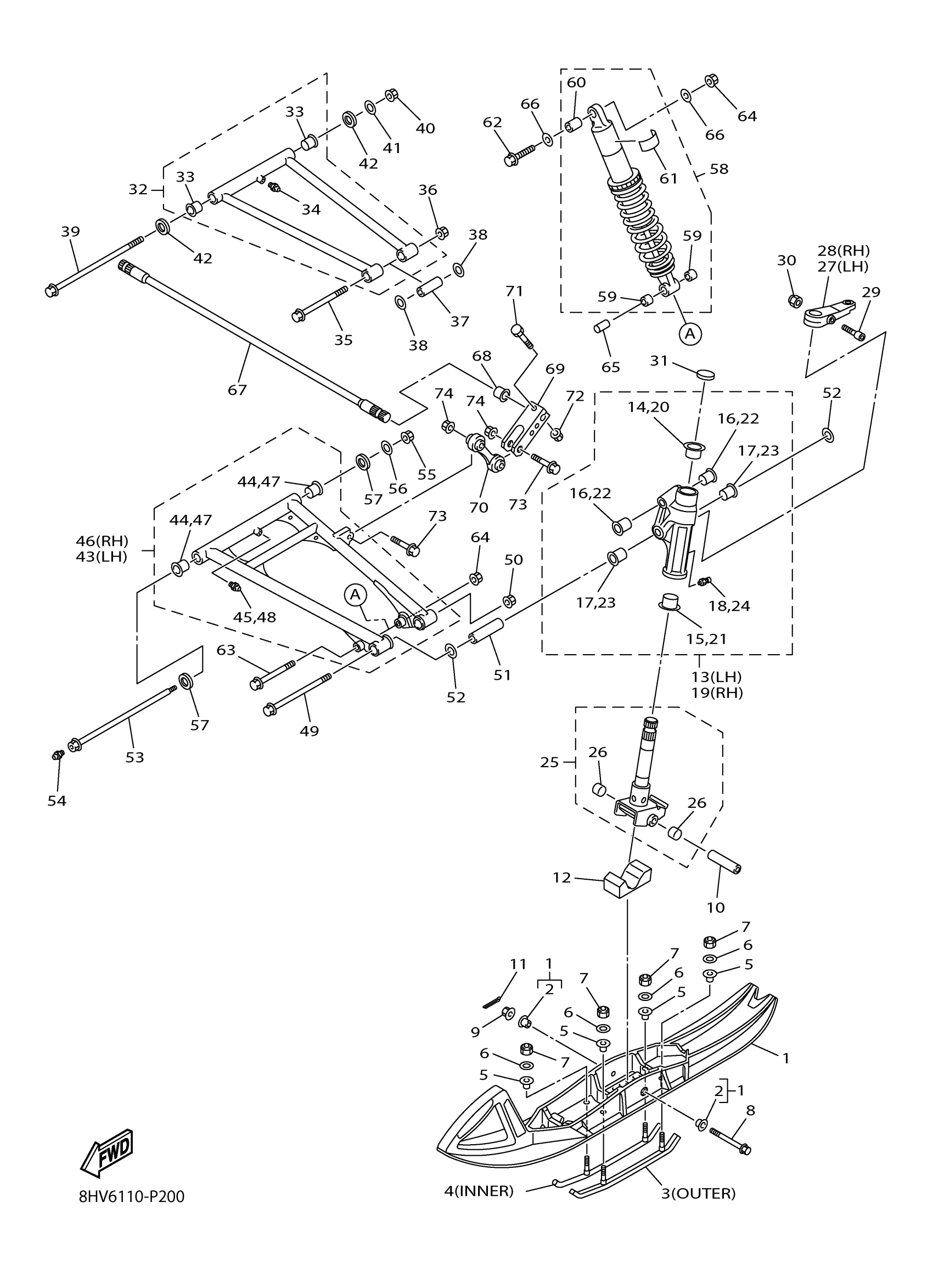

Yamaha RS90PFB (RS VECTOR) 8HV6 2015 SKI Diagram
#
1
GEN II 135MM TUNER SKI BK
SMA-8JPDS-00-00
Unavailable
2
. COLLAR 1
8EX-F3754-00-00
Unavailable
3
8JH RUNNER SET - 11MM SQ. 6"
SMA-8JH31-04-00
Unavailable
4
8JH CARBIDE PAIR - 11MM RD 4"
SMA-8JH31-03-00
Unavailable
5
COLLAR
90387-08064-00
$8.49
6
WASHER, PLATE
90201-08053-00
$5.60
7
NUT, NYLON
95717-08300-00
$2.70
8
BOLT, FLANGE
90105-10070-00
$12.49
9
NUT, S/L FLANGE
95602-10200-00
$4.82
10
COLLAR
90387-1012H-00
$24.99
11
PIN, COTTER
91490-20025-00
$1.99
12
STOPPER 1
8HG-23743-00-00
$28.99
13
STEERING KNUCKLE A
8HG-23501-10-00
Unavailable
14
BUSH, SOLID
90381-25115-00
$9.49
15
BUSH, SOLID
90381-32001-00
$14.99
16
BUSH, SOLID
90381-15N50-00
Unavailable
17
BUSH, SOLID
90381-18N51-00
Unavailable
18
NIPPLE, GREASE
93700-06M03-00
Unavailable
19
STEERING KNUCKLE A
8HG-23502-10-00
Unavailable
20
BUSH, SOLID
90381-25115-00
$9.49
21
BUSH, SOLID
90381-32001-00
$14.99
22
BUSH, SOLID
90381-15N50-00
Unavailable
23
BUSH, SOLID
90381-18N51-00
Unavailable
24
NIPPLE, GREASE
93700-06M03-00
Unavailable
25
COLUMN, SKI ASSY
8HG-23803-00-00
Unavailable
26
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
27
ARM, OUTSIDE 1
8FA-23851-00-00
Unavailable
28
ARM, OUTSIDE 2
8FA-23852-00-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD
90110-08104-00
Unavailable
30
NUT, SELF-LOCKING
95602-08200-00
Unavailable
31
CAP, CASE
3YK-22472-40-00
Unavailable
32
FRONT UPPER ARM CO
8HG-23540-10-00
Unavailable
33
BUSH, SOLID
90381-15N50-00
Unavailable
34
NIPPLE, GREASE
93700-06M03-00
Unavailable
35
BOLT, FLANGE
90105-10230-00
Unavailable
36
NUT, S/L FLANGE
95602-10200-00
$4.82
37
COLLAR
90387-10099-00
Unavailable
38
WASHER, PLATE
90201-10052-00
Unavailable
39
BOLT
90109-10056-00
Unavailable
40
NUT, S/L FLANGE
95602-10200-00
$4.82
41
WASHER, PLATE
90201-10052-00
Unavailable
42
WASHER
90209-15N50-00
Unavailable
43
FRONT LOWER ARM CO
8HG-23570-10-00
Unavailable
44
BUSH, SOLID
90381-16N51-00
Unavailable
45
NIPPLE, GREASE
93700-06M03-00
Unavailable
46
FRONT LOWER ARM CO
8HG-23580-10-00
Unavailable
47
BUSH, SOLID
90381-16N51-00
Unavailable
48
NIPPLE, GREASE
93700-06M03-00
Unavailable
49
BOLT, FLANGE
90105-12078-00
Unavailable
50
NUT, SELF-LOCKING
95602-12200-00
Unavailable
51
COLLAR
90387-12054-00
Unavailable
52
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
53
BOLT, UNION
90401-10045-00
Unavailable
54
NIPPLE, GREASE
93700-06M03-00
Unavailable
55
NUT, S/L FLANGE
95602-10200-00
$4.82
56
WASHER, PLATE
90201-10052-00
Unavailable
57
WASHER
90209-15N50-00
Unavailable
58
ABSORBER ASSY 1
8HV-2376A-00-00
Unavailable
59
BUSH, BIMETAL FORMED
90384-15N51-00
Unavailable
60
DAMPER, BUSH B
8FA-2331R-00-00
Unavailable
61
LABEL, WARNING
4AA-22259-60-00
Unavailable
62
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
63
BOLT, FLANGE
90105-10288-00
Unavailable
64
NUT, S/L FLANGE
95602-10200-00
$4.82
65
COLLAR
90387-10N59-00
Unavailable
66
WASHER, PLATE
90201-10052-00
Unavailable
67
BAR, STABILIZER FRONT
8FG-2386E-10-00
Unavailable
68
BUSH, STABILIZER FRONT
8FG-2386G-00-00
Unavailable
69
ARM, STABILIZER
8FG-2386L-00-00
Unavailable
70
JOINT, STABILIZER 1
8ES-2385L-00-00
Unavailable
71
BOLT
90101-06046-00
Unavailable
72
NUT, U FLANGE
95604-06200-00
Unavailable
73
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
74
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
