Description

Price

1

TANK, OIL

8HV-21751-00-00

$746.99

2

OIL LEVEL GAUGE ASSY

8GL-85720-00-00

$60.99

3

O-RING

8FP-85075-00-00

$11.49

4

OIL PIPE COMP. 2

8GL-13406-00-00

$121.99

5

O-RING

93210-24001-00

$8.49

6

BOLT(3MA)

91312-06016-00

$5.60

7

BOLT, FLANGE

95817-08012-00

$5.49

8

GASKET(3AJ)

90430-08204-00

$8.99

9

BOLT, BUTTON HEAD

92012-06016-00

$8.49

10

WASHER, PLATE

90201-06078-00

$5.60

11

NUT, SELF-LOCKING

95602-08200-00

$3.20

12

HOSE, OIL 1

8GM-13464-00-00

Unavailable

13

CLIP(34X)

90467-22097-00

$9.49

14

CLIP(34X)

90467-22097-00

$9.49

15

HOSE, OIL 2

8HF-13465-00-00

Unavailable

16

CLIP(34X)

90467-22097-00

$9.49

17

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

Unavailable

18

O-RING (26H)

93210-16629-00

Unavailable

19

BOLT(3MA)

91312-06016-00

$5.60

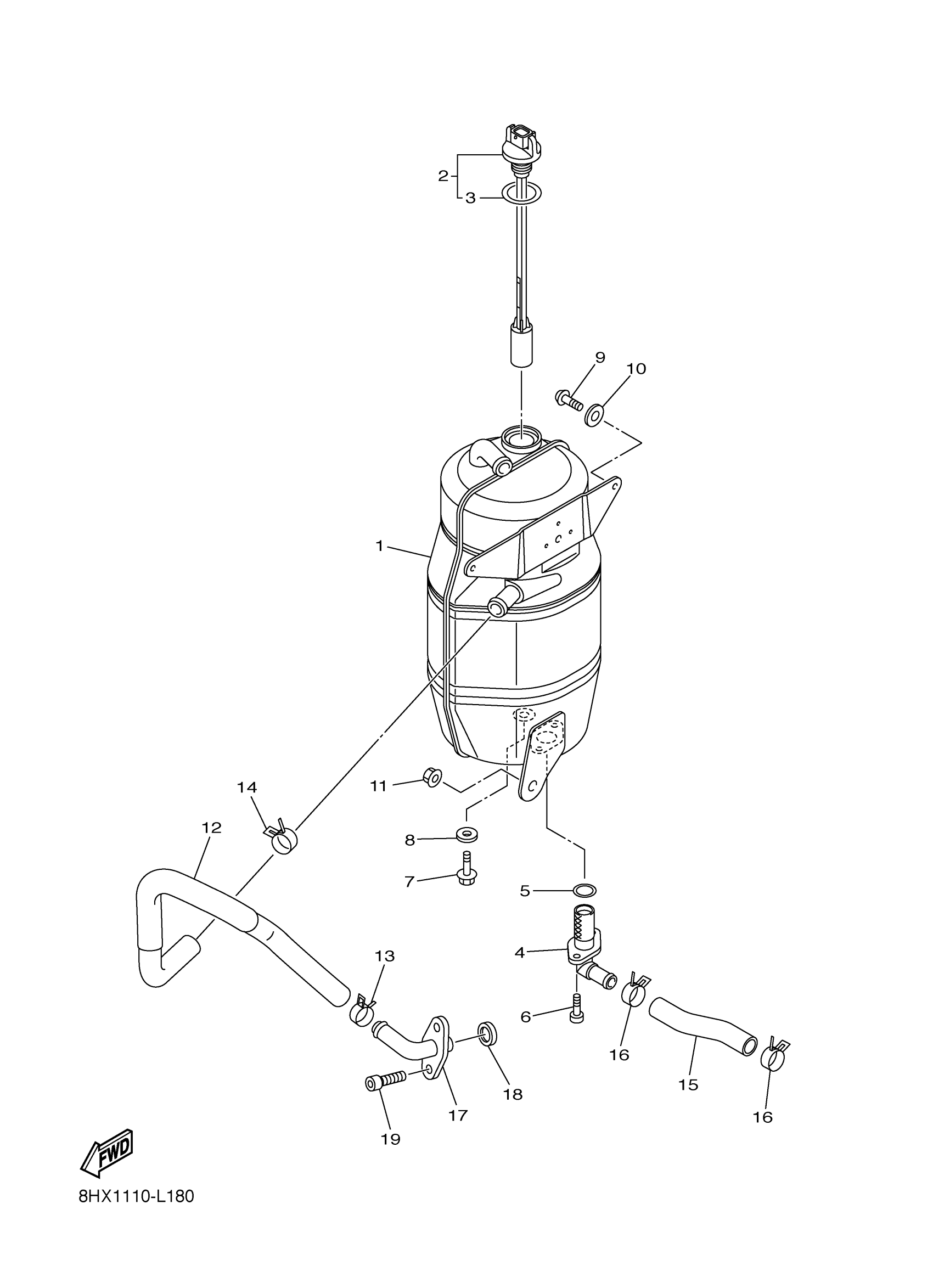

Yamaha RS90PDL (RS VECTOR) 8HV20 2013 OIL TANK Diagram

TANK, OIL

OIL LEVEL GAUGE ASSY

O-RING

OIL PIPE COMP. 2

O-RING

BOLT(3MA)

BOLT, FLANGE

GASKET(3AJ)

BOLT, BUTTON HEAD

WASHER, PLATE

NUT, SELF-LOCKING

HOSE, OIL 1

CLIP(34X)

CLIP(34X)

HOSE, OIL 2

CLIP(34X)

CONNECTOR, SUCTION PIPE

O-RING (26H)

BOLT(3MA)
