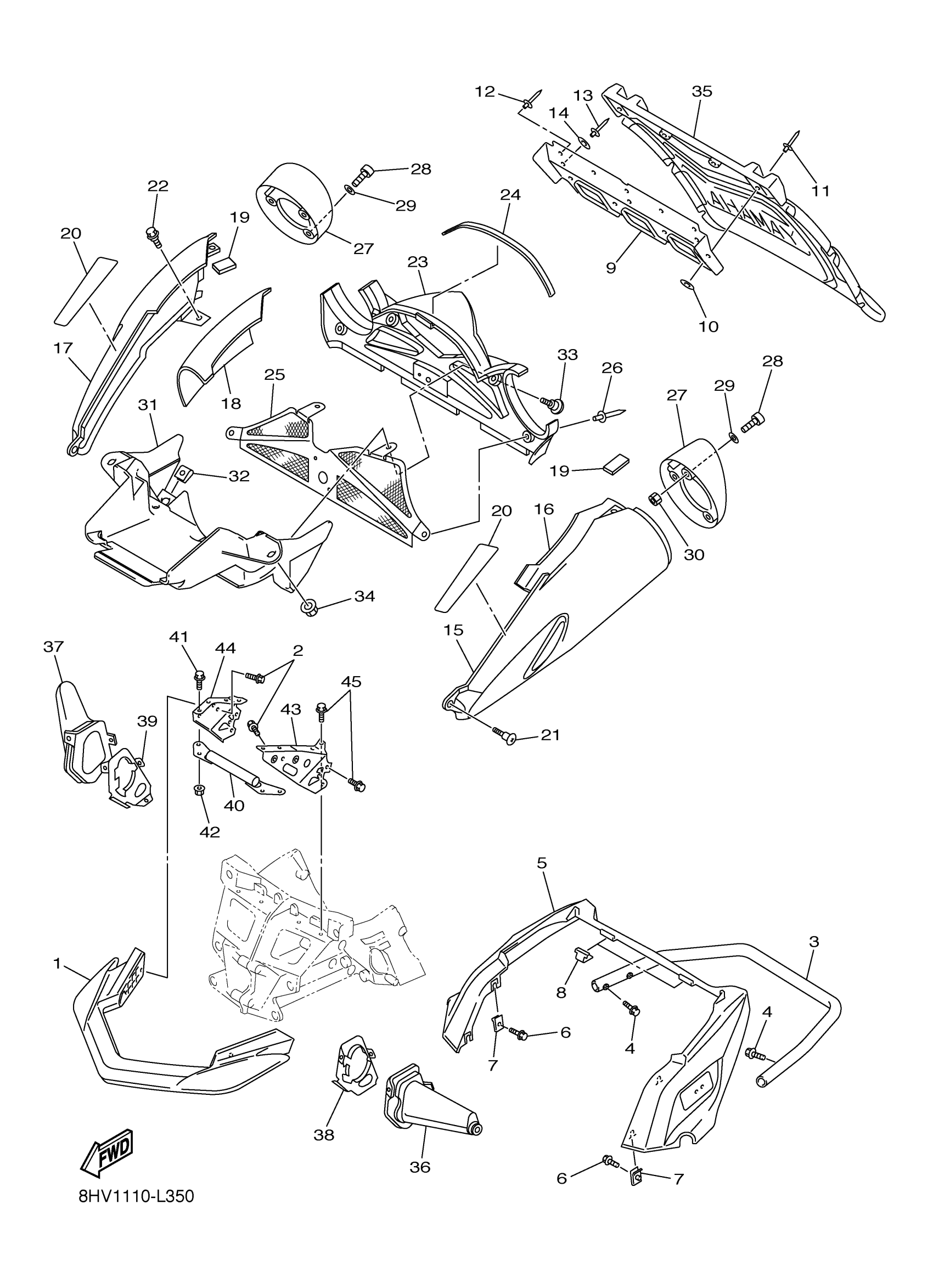

Yamaha RS90PDL (RS VECTOR) 8HV20 2013 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8FA-77511-01-00

$250.99

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

BUMPER, REAR 1

8FP-77541-01-00

Unavailable

4

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

5

BUMPER, REAR 2

8FA-77542-00-00

Unavailable

6

BOLT, FLANGE

95817-06016-00

$2.75

7

NUT, SPRING(4ES)

90183-06069-00

Unavailable

8

TAPE 4

8HV-7717H-00-00

$1.49

9

STOPPER, FLAP

8GH-77596-01-00

$98.99

10

WASHER, PLATE

90201-04027-00

$3.02

11

RIVET, BLIND

90267-47200-00

$2.75

12

RIVET, BLIND(3JB)

90267-48095-00

$9.49

13

RIVET, BLIND (22W)

90267-48083-00

$3.35

14

WASHER, PLATE

90201-05025-00

$5.60

15

PROTECTOR 1

8FP-77551-01-33

Unavailable

16

LINING, SHROUD 1

8HV-77261-00-00

Unavailable

17

PROTECTOR 2

8FP-77552-01-33

Unavailable

18

LINING, SHROUD 2

8HV-77262-00-00

Unavailable

19

LINING, SHROUD 3

8HV-77263-00-00

Unavailable

20

PROTECTOR, SIDE 1

8FR-77561-00-00

Unavailable

21

SCREW, BINDING

90154-06009-00

Unavailable

22

BOLT

90109-06220-00

Unavailable

23

COVER, TAILLIGHT

8FP-84516-01-00

Unavailable

24

TRIM 8

8FP-77234-00-00

Unavailable

25

LOUVER 1

8FP-77441-00-00

Unavailable

26

RIVET, BLIND(8CH)

90267-47187-00

Unavailable

27

CAP

8FP-77517-00-00

Unavailable

28

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

29

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

30

NUT, HEXAGON

95380-06600-00

Unavailable

31

BRACKET, TAILLIGHT

8FP-2117E-01-00

Unavailable

32

NUT, SPRING(4ES)

90183-06069-00

Unavailable

33

BOLT

90109-06220-00

Unavailable

34

NUT, U FLANGE

95604-06200-00

Unavailable

35

FLAP

8GT-K7595-00-00

Unavailable

36

COVER 1

8FU-2198F-01-00

Unavailable

37

COVER 3

8FU-2198J-01-00

Unavailable

38

PLATE, STRG BRACKET 1

8FU-2195E-01-00

Unavailable

39

PLATE, STRG BRACKET 2

8FU-2195F-01-00

Unavailable

40

BRKT. ,FR. FOOD

8FP-21979-00-00

Unavailable

41

BOLT, FLANGE

95817-06014-00

Unavailable

42

NUT, FLANGE

95702-06500-00

Unavailable

43

BRACKET, FRONT

8FA-21949-00-00

Unavailable

44

BRACKET, FRONT BUMPER

8FA-21959-00-00

Unavailable

45

BOLT, FLANGE

95814-08016-00

Unavailable
