- RS90PBR (VECTOR) 8HV10 2012
TRACK SUSPENSION 1

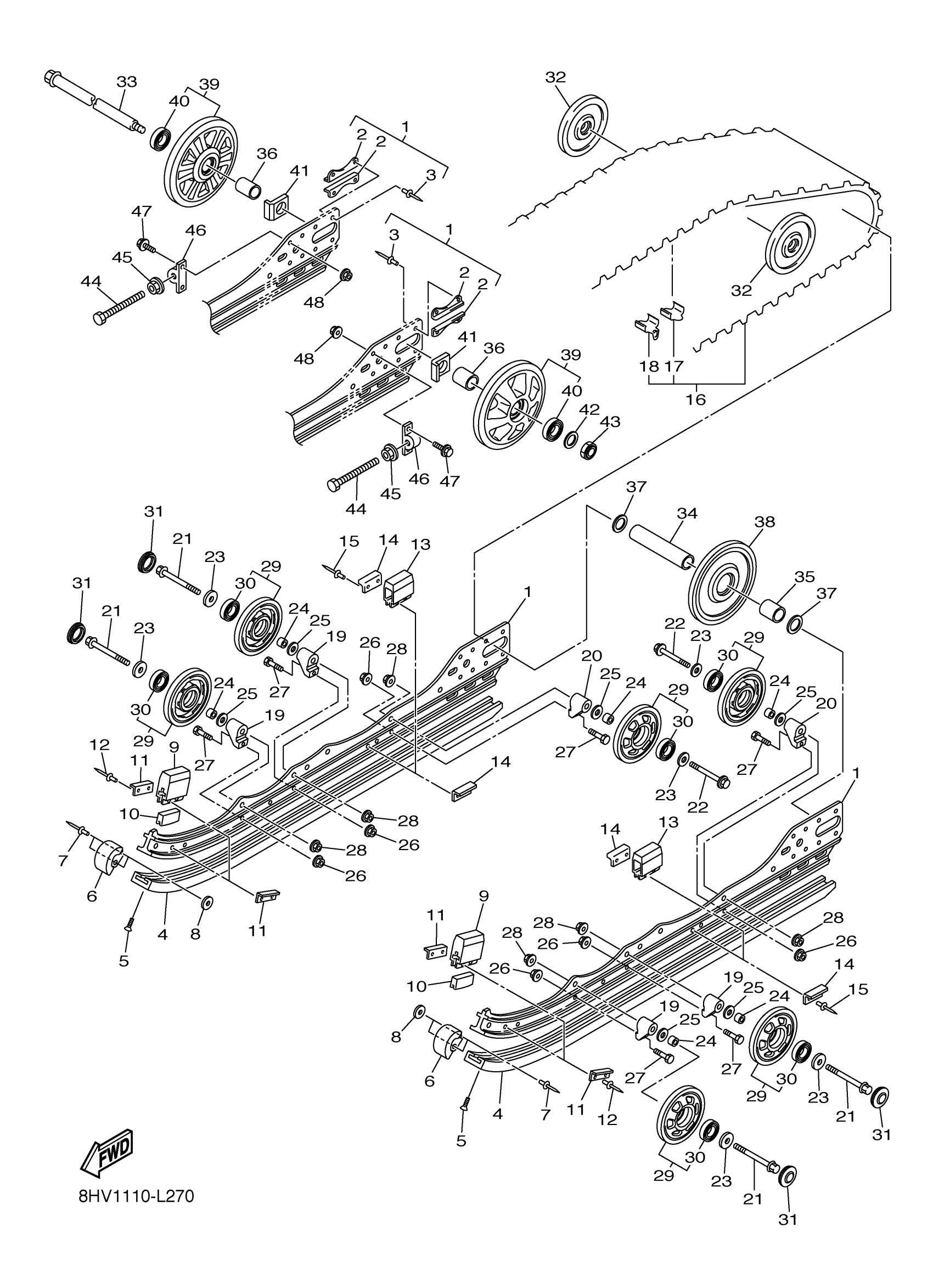

Yamaha RS90PBR (VECTOR) 8HV10 2012 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8JA-W4741-00-00
Unavailable
2
BRACKET
8JA-4741B-00-00
Unavailable
3
RIVET
8V0-47468-00-00
$10.49
4
SLIDE RUNNER BLK 136''
SMA-8FT92-00-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 1
8JB-47456-00-00
Unavailable
10
SPACER
8FR-47341-00-00
$13.99
11
PLATE, DAMPER
8AX-47458-00-00
$10.99
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8JA-47457-00-00
$17.99
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK ASSY
8FA-47110-20-00
Unavailable
17
PLATE, REINFORCEMENT
8HR-47113-09-00
Unavailable
18
METAL, SLIDE
8HR-47115-09-00
Unavailable
19
BRACKET 7
8CM-47419-10-00
Unavailable
20
BRACKET 7
8CM-47419-30-00
Unavailable
21
BOLT, FLANGE
90105-10241-00
Unavailable
22
BOLT, FLANGE
90105-10150-00
Unavailable
23
WASHER, PLATE
90201-101U2-00
Unavailable
24
COLLAR
90387-10031-00
Unavailable
25
WASHER, PLATE (2Y4)
90201-10714-00
Unavailable
26
NUT, SELF-LOCKING
95602-08200-00
Unavailable
27
BOLT
90101-08063-00
Unavailable
28
NUT, S/L FLANGE
95602-10200-00
Unavailable
29
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
30
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
31
CAP, WHEEL
8HF-47317-00-00
Unavailable
32
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
33
AXLE, REAR
8JA-47521-00-00
Unavailable
34
COLLAR
90387-25029-00
Unavailable
35
COLLAR
90387-25028-00
Unavailable
36
COLLAR
90387-25027-00
Unavailable
37
WASHER, PLATE
90201-25025-00
Unavailable
38
GUIDE WHEEL ASSY
8CR-47550-30-00
Unavailable
39
AXLE WHEEL,25MM 6005 BRG BK
SMA-8HF38-02-BK
Unavailable
40
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
41
WASHER 2
8JA-47375-00-00
Unavailable
42
WASHER, PLATE
90201-22018-00
Unavailable
43
NUT, SELF-LOCKING
90185-22009-00
Unavailable
44
BOLT
90101-12041-00
Unavailable
45
95702-12500
95702-12500-00
Unavailable
46
BRACKET 5
8JA-47463-10-00
Unavailable
47
BOLT, FLANGE
90105-08183-00
Unavailable
48
NUT, SELF-LOCKING
95602-08200-00
Unavailable
