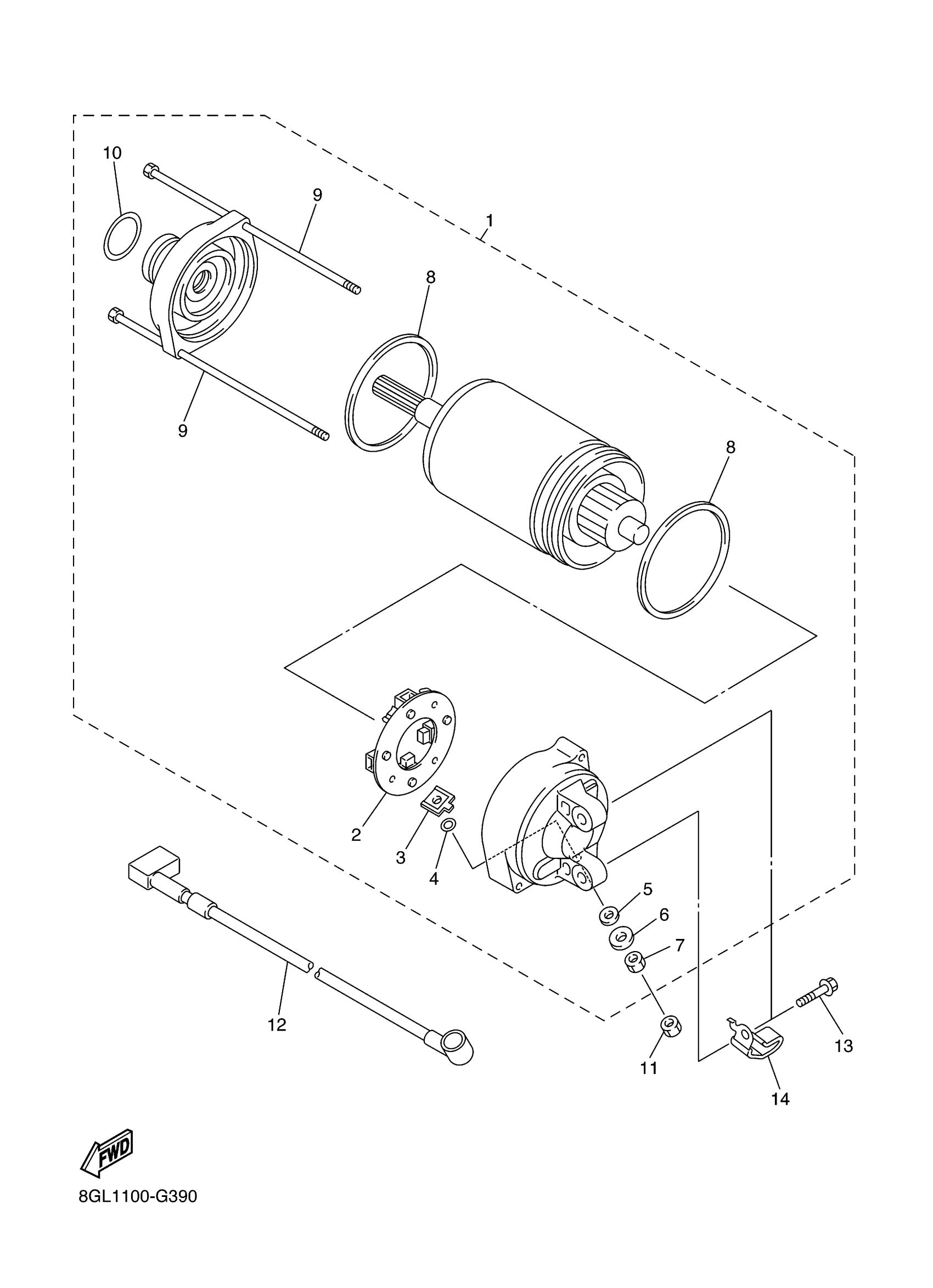

Find the part on the Starting Motor diagram for your 2012 Yamaha Vector (RS90PBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Vector (RS90PBR) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY

8GL-81890-01-00

1

$334.12

In stock

2

BRUSH SET

2S3-81801-00-00

1

$71.27

In stock

3

BUSH, TERMINAL

2S3-8182G-00-00

—

$5.05

In stock

4

O-RING (26H)

93210-06632-00

1

$6.68

In stock

5

WASHER, PLAIN

8FA-8181L-00-00

—

$4.11

In stock

6

WASHER

1D7-81835-00-00

1

$1.49

In stock

7

NUT(650)

95380-06700-00

1

$6.17

In stock

8

GASKET

5PX-81861-00-00

—

$10.26

In stock

9

SCREW

8ES-81846-01-00

1

$5.11

In stock

10

O-RING (437)

93210-24235-00

1

$5.72

In stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

CORD COMP.

8ES-8183G-00-00

—

$38.43

In stock

13

BOLT, FLANGE

95812-08030-00

1

$3.25

In stock

14

CLAMP

90465-08030-00

—

$5.20

In stock
