2012 Yamaha Vector (RS90PBR) Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 2012 Yamaha Vector (RS90PBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

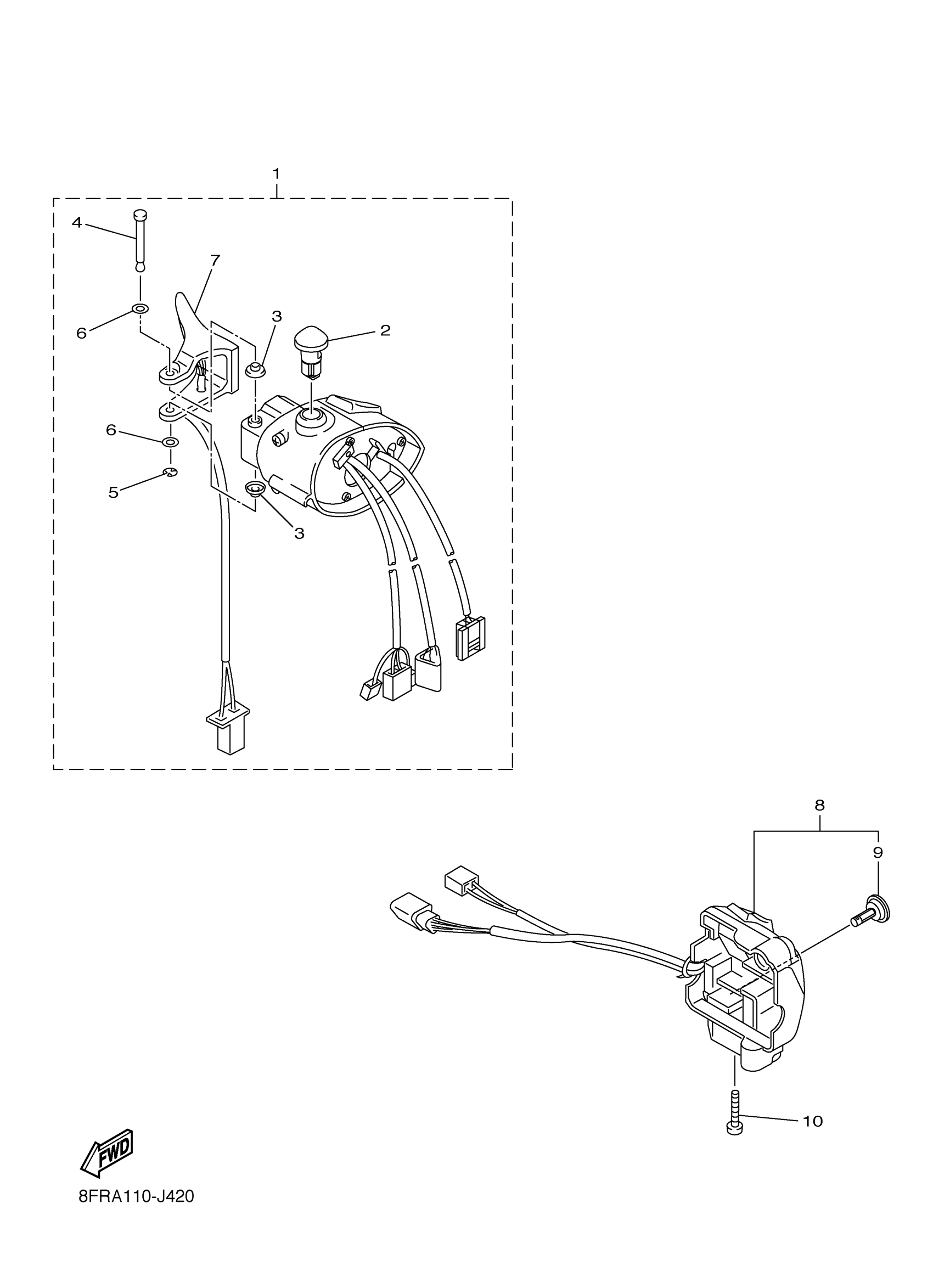

2012 Yamaha Vector (RS90PBR) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (RIGHT)

8FP-82720-02-00

1

$345.88

In stock

2

STOP SWITCH

8GL-86284-09-00

1

$18.85

In stock

3

CAP 1

85G-83956-00-00

1

$6.66

In stock

4

SHAFT

8R6-8399F-00-00

1

$10.85

In stock

5

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

6

WASHER

8FP-82558-00-00

1

$2.40

In stock

7

THUMB WARMER ASSY

8FP-82970-00-00

—

$145.11

In stock

8

SWITCH, HANDLE 3

8FP-83973-00-00

1

$239.40

In stock

9

SWITCH, LAMP

8GL-82526-09-00

1

$12.92

In stock

10

SCREW, PAN HEAD(JJ6)

98507-05016-00

1

$1.40

In stock
