2012 Yamaha Vector (RS90PBR) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2012 Yamaha Vector (RS90PBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

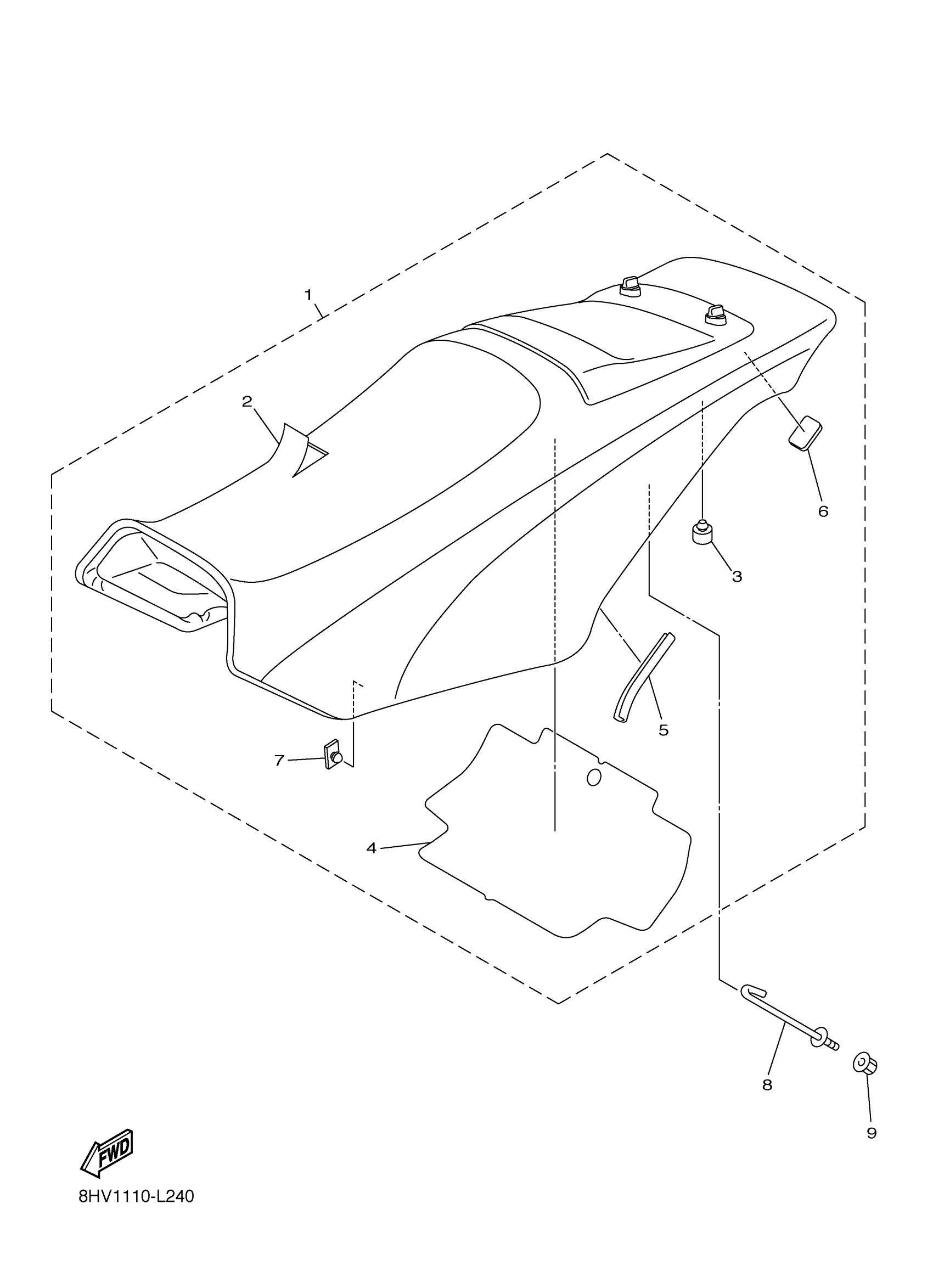

2012 Yamaha Vector (RS90PBR) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,155.99

In stock

2

SEAT COVER COMP.

8HV-2470F-11-00

—
Out of stock

3

STOPPER

8FA-27114-00-00

1

$3.66

In stock

4

PROTECTOR,1

8FA-2476U-10-00

—

$50.78

In stock

5

DAMPER, SEAT

8FP-24747-00-00

1

$1.21

In stock

6

PROTECTOR,1

8FR-2476U-00-00

1

$2.71

In stock

7

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

8

HOOK, SEAT

8FA-24755-00-00

1

$6.45

In stock

9

NUT, U FLANGE

95604-06200-00

1

$2.35

In stock
