2012 Yamaha Vector (RS90PBR) OIL Pump Diagram

← All diagrams

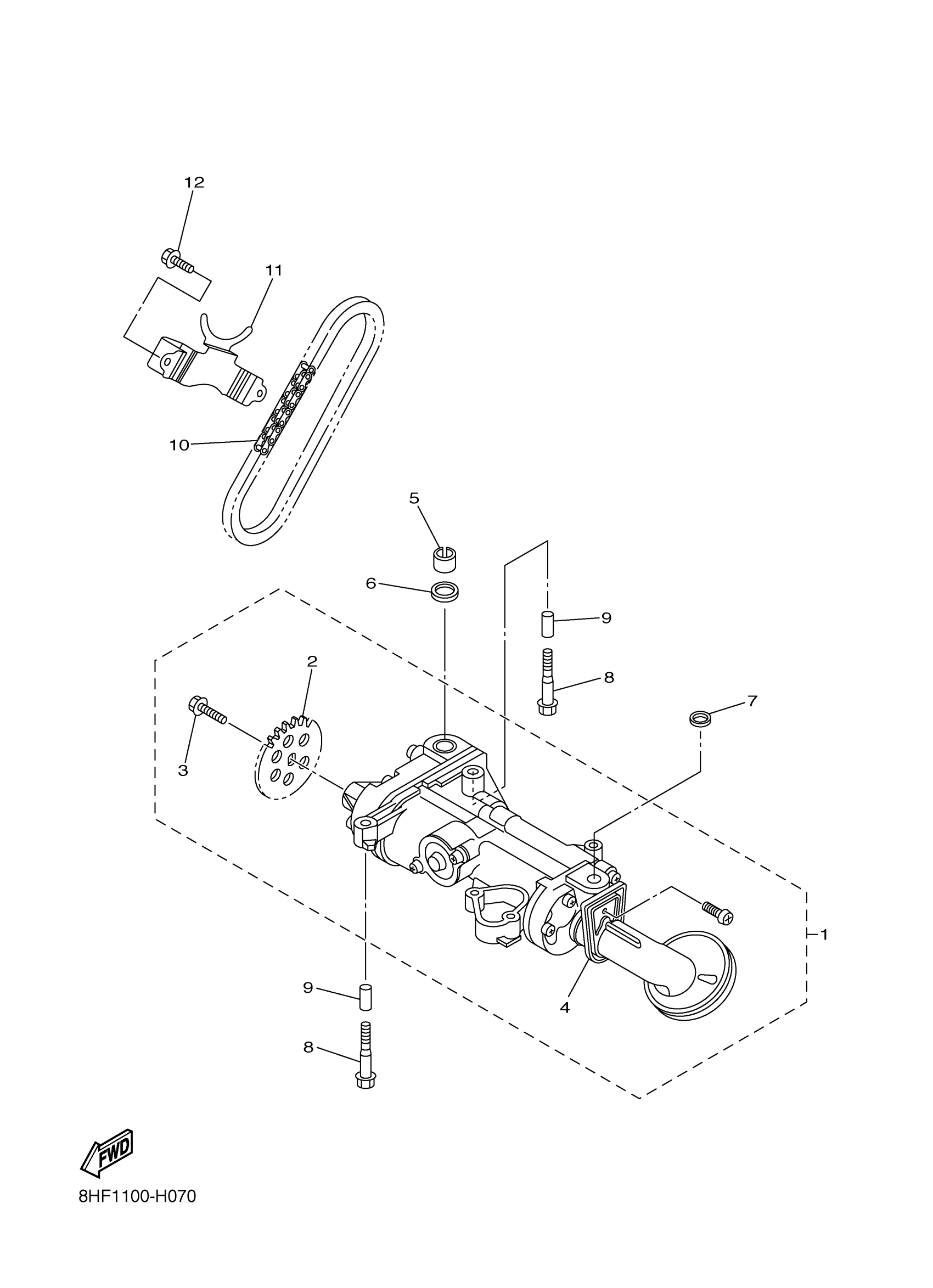

Find the part on the OIL Pump diagram for your 2012 Yamaha Vector (RS90PBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Vector (RS90PBR) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

8GL-13300-00-00

1

$484.11

In stock

2

SPROCKET, DRIVEN

4XV-13355-00-00

—
Out of stock

3

BOLT, FLANGE

90105-06066-00

1

$6.31

In stock

4

SPACER, STRAINER

8ES-13427-00-00

1

$14.55

In stock

5

PIPE

8ES-13284-00-00

1

$3.49

In stock

6

O-RING (1L9)

93210-18322-00

1

$4.77

In stock

7

O-RING (26H)

93210-14579-00

1

$5.69

In stock

8

BOLT, FLANGE

95817-06040-00

1

$4.54

In stock

9

PIN, DOWEL(8AH)

91808-22019-00

1

$6.86

In stock

10

CHAIN

94580-25064-00

1

$9.89

In stock

11

HOLDER

8ES-13898-01-00

1

$25.38

In stock

12

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock
