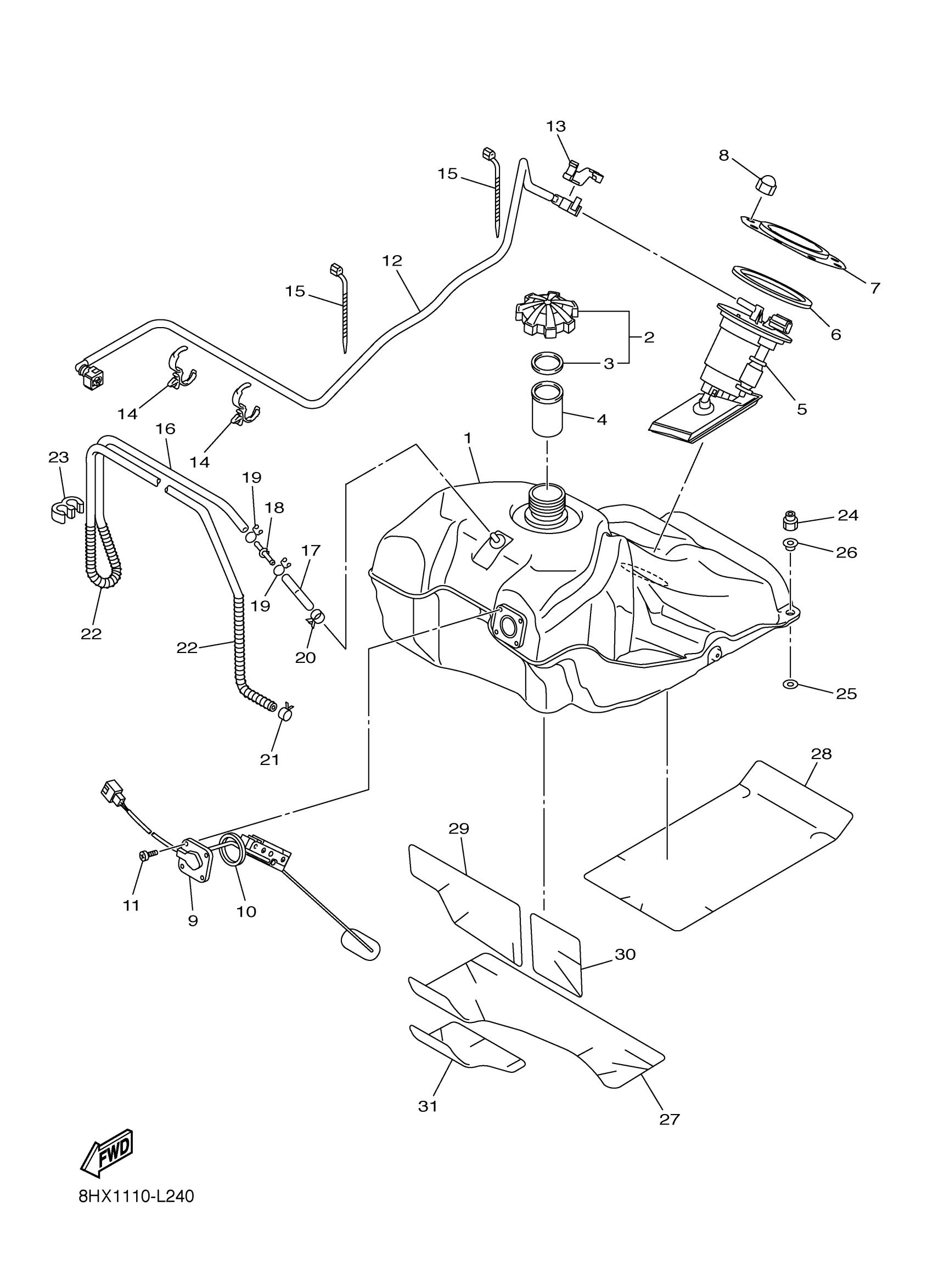

Yamaha RS90PBR (VECTOR) 8HV10 2012 FUEL TANK Diagram
#
1
TANK, FUEL
8HG-24111-00-00
Unavailable
2
CAP ASSY
8FG-24610-01-00
$40.99
3
GASKET, CAP 1
8HV-24641-00-00
Unavailable
4
TUBE, FILLER
8FP-24114-00-00
Unavailable
5
FUEL PUMP COMP.
8HG-13907-03-00
Unavailable
6
O-RING
8FP-24486-00-00
$18.99
7
BRACKET, FUEL PUMP
8FP-24491-00-00
Unavailable
8
NUT (J17)
95380-06800-00
$8.49
9
SENDER UNIT ASSY, FUEL METER
8HG-85752-00-00
$95.99
10
O-RING (102)
93210-41041-00
$7.49
11
SCREW, BIND
98902-05008-00
$1.70
12
PIPE, FUEL 1
8HV-24311-01-00
Unavailable
13
CLAMP
90464-14004-00
$7.49
14
CLAMP(4TR)
90464-18246-00
$2.44
15
CLAMP
90464-13077-00
$8.49
16
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
17
PIPE, JOINT
8FR-24461-00-00
Unavailable
18
PIPE, JOINT
8H8-24376-00-00
Unavailable
19
CLIP (8L2)
90467-08017-00
Unavailable
20
CLIP (8A1)
90467-09026-00
Unavailable
21
CLIP (8A1)
90467-09026-00
Unavailable
22
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
23
CLAMP
90464-09M21-00
Unavailable
24
NUT, NYLON
95717-08300-00
Unavailable
25
WASHER, PLATE
90201-08045-00
Unavailable
26
COLLAR(1HX)
90387-081N1-00
Unavailable
27
PROTECTOR, FUEL TANK
8HV-24141-00-00
Unavailable
28
PROTECTOR
8HV-24595-00-00
Unavailable
29
INSULATOR, FUEL TANK 1
8HV-2416F-00-00
Unavailable
30
INSULATOR, FUEL TANK 2
8HV-2416G-00-00
Unavailable
31
INSULATOR, FUEL TANK 1
8HF-2416F-00-00
Unavailable
