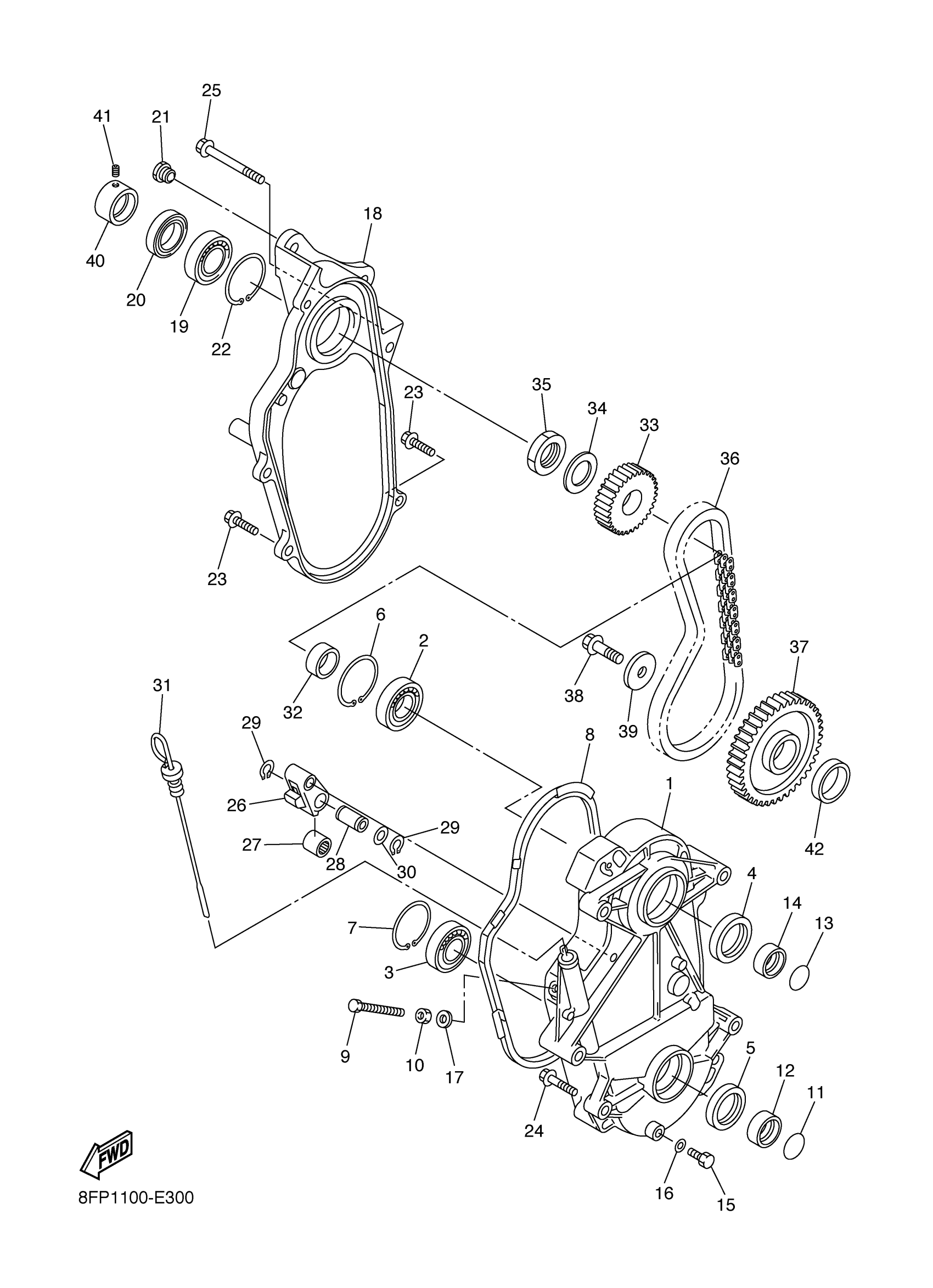

Yamaha RS90NW (NYTRO) 8GF3 2007 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, CHAIN

8FP-47541-11-00

Unavailable

2

BEARING (5X5)

93306-20627-00

$75.99

3

BEARING

93306-20592-00

$59.99

4

OIL SEAL

93102-40014-00

$15.99

5

OIL SEAL

93102-35010-00

$23.99

6

CIRCLIP(MF1)

99009-62500-00

$8.49

7

CIRCLIP(26H)

99009-52500-00

$12.49

8

RING, HOUSING

8FP-47558-10-00

$72.99

9

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

10

NUT (3WP1)

95317-10700-00

$8.49

11

O-RING (169)

93210-25071-00

$8.49

12

COLLAR(8CJ)

90387-2508C-00

$46.99

13

O-RING (498)

93210-29282-00

$8.49

14

COLLAR

90387-30004-00

Unavailable

15

BOLT(8BC)

97007-08014-00

$8.49

16

WASHER, SEAL(8AB)

90210-08017-00

Unavailable

17

WASHER, PLATE(56J)

90201-106H5-00

Unavailable

18

CAP, HOUSING

8ES-47543-01-00

Unavailable

19

BEARING

93306-20532-00

Unavailable

20

OIL SEAL

93102-35473-00

Unavailable

21

NUT(8CJ)

90179-10679-00

Unavailable

22

CIRCLIP(26H)

99009-52500-00

$12.49

23

BOLT, FLANGE

95817-08035-00

Unavailable

24

BOLT, FLANGE(4GB)

95817-10045-00

Unavailable

25

BOLT,FLANGE

95817-10090-00

Unavailable

26

HOLDER

8ES-47613-00-00

Unavailable

27

BEARING

93311-32685-00

Unavailable

28

COLLAR

90387-22005-00

Unavailable

29

CIRCLIP

99009-26400-00

Unavailable

30

WASHER, PLATE

90201-266P2-00

Unavailable

31

LEVEL, OIL

8FA-47546-01-00

Unavailable

32

COLLAR

90387-30005-00

Unavailable

33

SPROCKET, CHAIN DRIVE

8FA-17682-10-00

Unavailable

34

WASHER, CONICAL SPRING

90208-28001-00

Unavailable

35

NUT

90170-28009-00

Unavailable

36

CHAIN

94890-09070-00

Unavailable

37

SPROCKET, CHAIN DRIVEN (40T)

8DW-47587-01-00

Unavailable

38

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

39

WASHER, PLATE (856)

90201-10321-00

Unavailable

40

COLLAR

90387-25009-00

Unavailable

41

BOLT, SET

90113-06006-00

Unavailable

42

COLLAR

90387-2508B-00

Unavailable
