- RS90MW (VECTOR MOUNTAIN) 8FK5 2007
RADIATOR HOSE

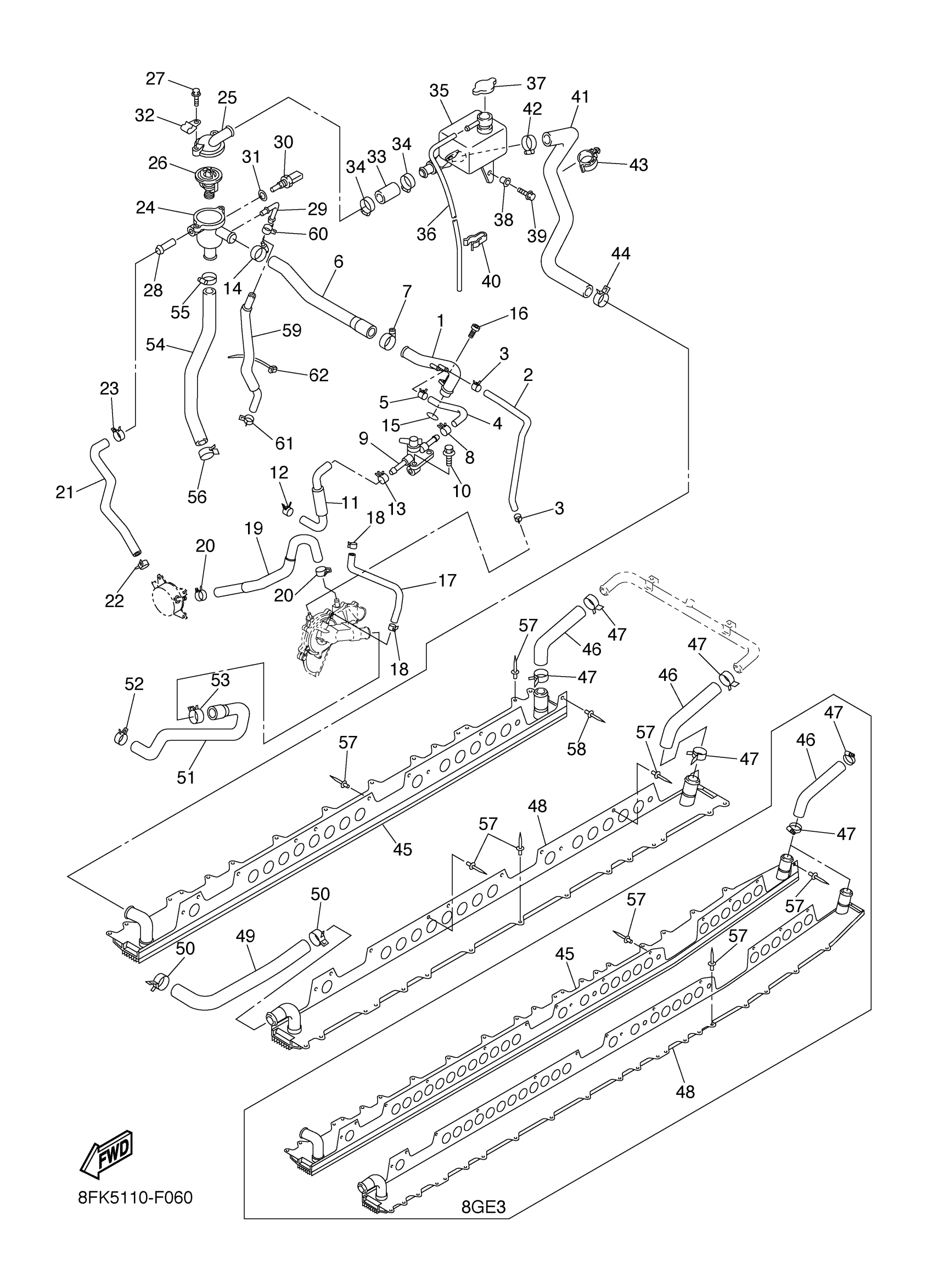

Yamaha RS90MW (VECTOR MOUNTAIN) 8FK5 2007 RADIATOR HOSE Diagram
#
1
PIPE 2
8ES-12482-00-00
Unavailable
2
PIPE 5
8ES-12485-01-00
Unavailable
3
CLIP(3BM)
90467-10135-00
$8.49
4
HOSE 2
8FK-12577-00-00
Unavailable
5
CLIP(3BM)
90467-10135-00
$8.49
6
HOSE 2
8ES-1243E-00-00
Unavailable
7
HOSE CLAMP ASSY(3GM)
90450-38040-00
$17.99
8
CLIP(3BM)
90467-10135-00
$8.49
9
COCK ASSY
8FW-1249A-00-00
Unavailable
10
BOLT, FLANGE
95817-06014-00
Unavailable
11
HOSE 4
8FK-12579-00-00
Unavailable
12
CLIP(3BM)
90467-10135-00
$8.49
13
CLIP(3BM)
90467-10135-00
$8.49
14
HOSE CLAMP ASSY
90450-35001-00
$5.60
15
O-RING
93210-26006-00
$8.49
16
BOLT,SOCKET
91317-06016-00
Unavailable
17
HOSE 3
8ES-12578-00-00
Unavailable
18
CLIP(3BM)
90467-10135-00
$8.49
19
HOSE 5
8ES-12588-00-00
Unavailable
20
CLIP(3TB)
90467-17128-00
Unavailable
21
HOSE 6
8ES-12589-00-00
Unavailable
22
CLIP(3TB)
90467-17128-00
Unavailable
23
CLIP(3TB)
90467-17128-00
Unavailable
24
HOUSING, THERMOSTA
8FA-W1258-02-00
Unavailable
25
COVER, THERMOSTAT
5EB-12413-00-00
Unavailable
26
THERMOSTAT ASSY
8FA-12410-00-00
Unavailable
27
. BOLT, FLANGE
95027-06020-00
Unavailable
28
JOINT, HOSE 3
8FA-12584-00-00
Unavailable
29
JOINT, HOSE 4
8FA-12594-00-00
Unavailable
30
THERMOSENSOR ASSY
8CC-85790-01-00
Unavailable
31
WASHER, PLATE
90201-12790-00
Unavailable
32
. CLAMP
90465-06M28-00
Unavailable
33
HOSE,3
8FA-1243F-00-00
Unavailable
34
HOSE CLAMP ASSY
90450-35001-00
$5.60
35
TANK, RESERVE
8FA-1249B-02-00
Unavailable
36
HOSE (L600)
90445-083J5-00
Unavailable
37
CAP, RADIATOR
4FL-12462-00-00
Unavailable
38
COLLAR (838-84757-00)
90387-06024-00
Unavailable
39
BOLT, FLANGE
95817-06020-00
Unavailable
40
CLAMP(53Y)
90464-15065-00
Unavailable
41
HOSE, 4
8FA-1244G-01-00
Unavailable
42
HOSE CLAMP ASSY
90450-35001-00
$5.60
43
CLAMP
90464-32002-00
Unavailable
44
CLIP (8M6)
90467-28046-00
Unavailable
45
HEAT EXCHANGER
8FK-1240F-01-00
Unavailable
45
HEAT EXCHANGER
8FS-1240F-00-00
Unavailable
46
PIPE 6
8FA-12476-00-00
Unavailable
46
PIPE 6
8FS-12476-00-00
Unavailable
47
HOSE CLAMP ASSY
90450-35001-00
$5.60
47
CLIP (8M6)
90467-28046-00
Unavailable
48
HEAT EXCHANGER
8FK-1240E-01-00
Unavailable
48
HEAT EXCHANGER
8FS-1240E-00-00
Unavailable
49
PIPE 7
8FA-12477-00-00
Unavailable
50
CLIP (8M6)
90467-28046-00
Unavailable
51
PIPE 8
8ES-1248A-00-00
Unavailable
52
CLIP (8M6)
90467-28046-00
Unavailable
53
CLIP
90467-310A0-00
Unavailable
54
PIPE 9
8FA-1248E-01-00
Unavailable
55
HOSE CLAMP ASSY
90450-35001-00
$5.60
56
CLIP (8M6)
90467-28046-00
Unavailable
57
RIVET, BLIND
90267-47195-00
Unavailable
57
RIVET, BLIND
90267-47195-00
Unavailable
58
RIVET, BLIND
90267-47197-00
Unavailable
59
HOSE 4
8FA-12579-00-00
Unavailable
60
CLIP(3BM)
90467-10135-00
$8.49
61
CLIP (7K7)
90467-11044-00
Unavailable
62
CLAMP(4FM)
90464-15195-00
Unavailable
