2007 Yamaha Vector Mountain (RS90MW) Frame 1 Diagram

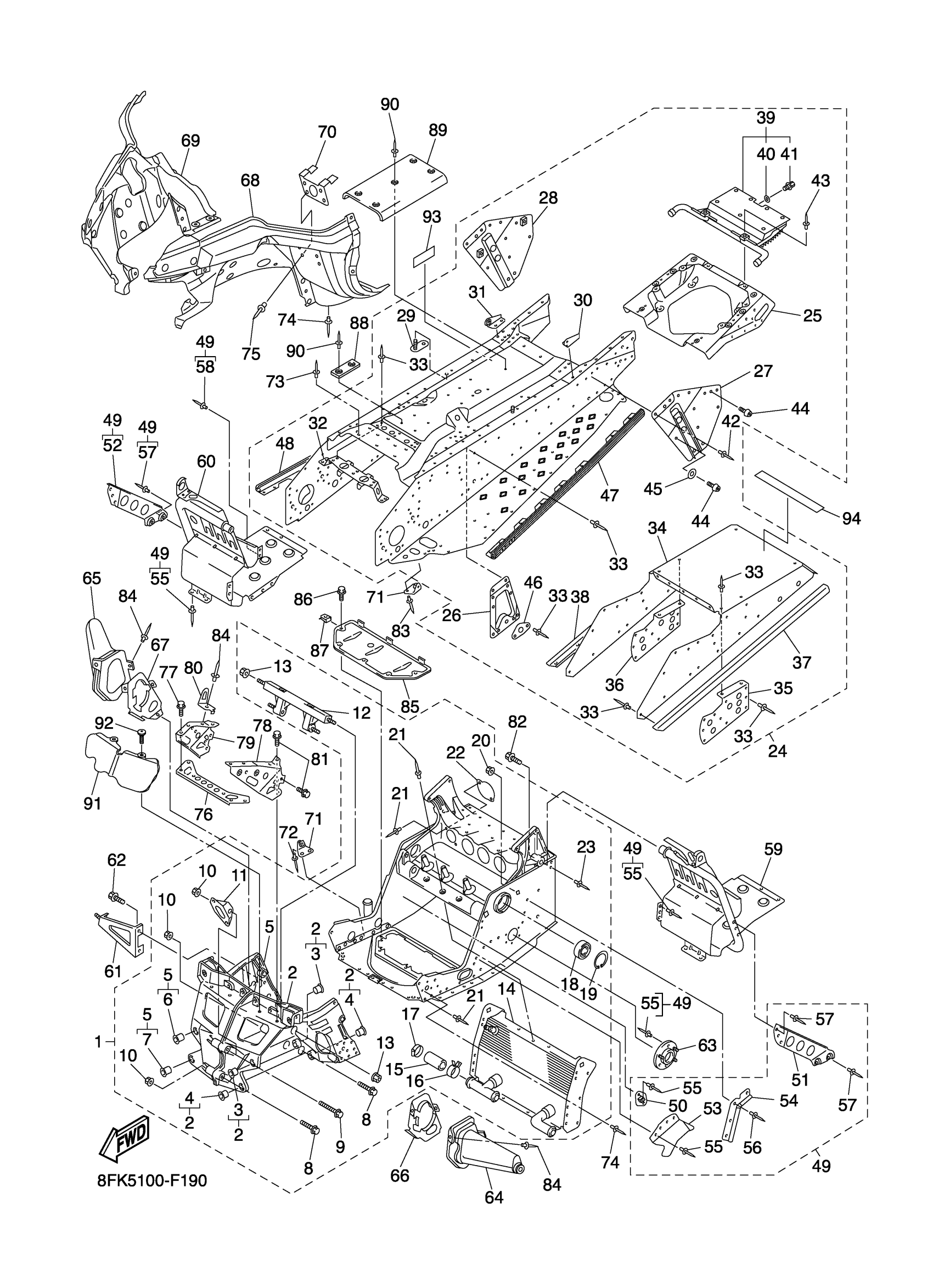

Find the part on the Frame 1 diagram for your 2007 Yamaha Vector Mountain (RS90MW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FRAME COMP.
8FK-21940-01-00
5
BULKHEAD 2
8FA-W2198-20-00
14
HEAT EXCHANGER ASSY
8EP-12440-00-00
17
HOSE CLAMP ASSY
90450-35001-00
24
REAR FRAME COMP.
8FK-21950-10-00
39
. HEAT EXCHANGER ASSY 4
8FW-1241A-00-00
49
FRAME CONNECTION KIT
8FK-W2195-10-00
53
COVER 2
8FU-2198G-00-00
68
FRAME UNDER 1
8FK-2196A-01-00
69
FRAME, UNDER 2
8EP-2196E-01-00
75
RIVET, BLIND
90267-47200-00
85
PROTECTOR, FRAME
8FA-2197E-01-00
