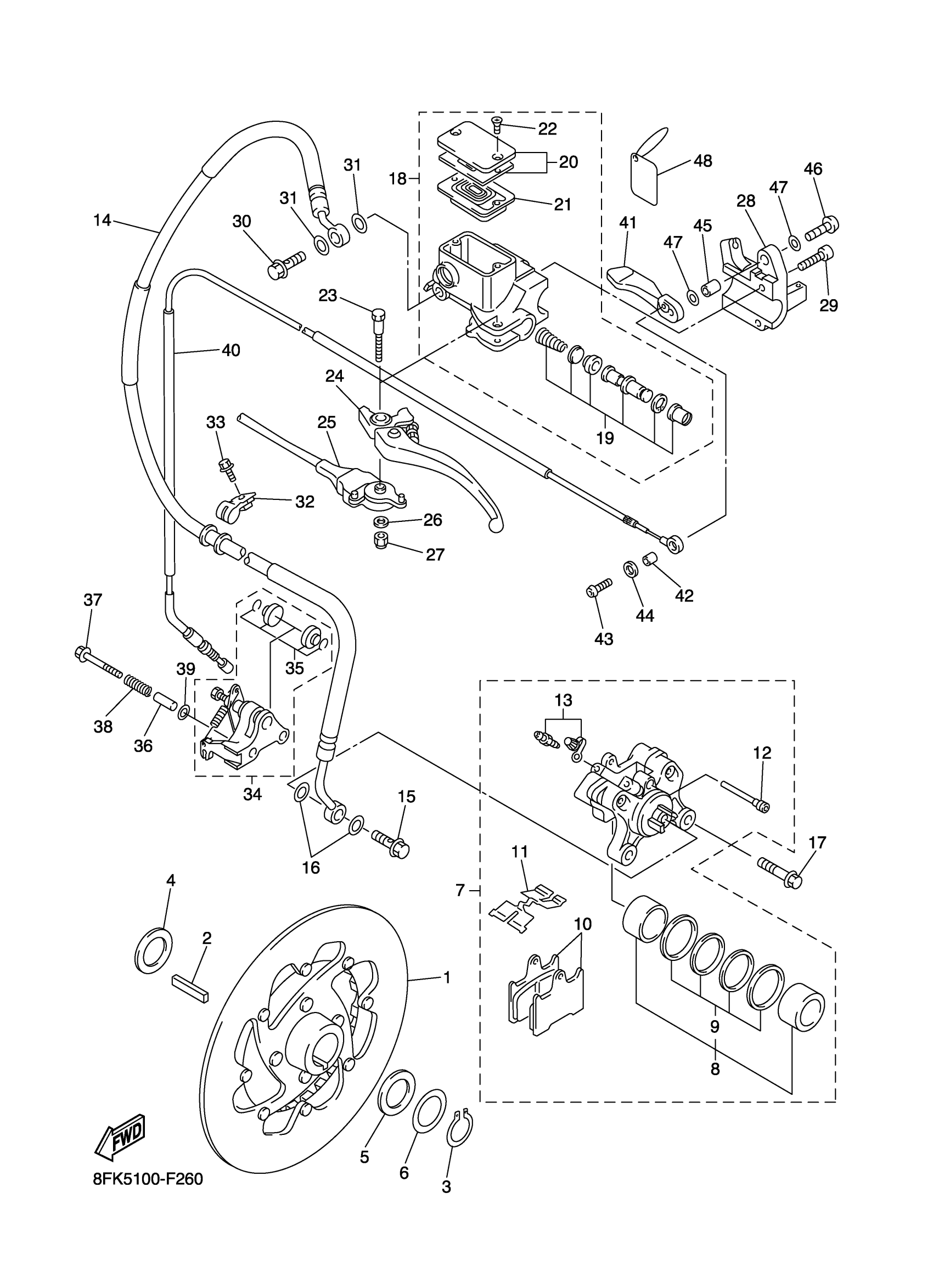

Yamaha RS90MW (VECTOR MOUNTAIN) 8FK5 2007 BRAKE 1 Diagram
#
1
DISC BRAKE ASSY
8FA-2581T-00-00
Unavailable
2
KEY, SLIDING(88K)
90281-07004-00
$13.99
3
CIRCLIP
99009-24400-00
$8.49
4
WASHER, PLATE (248-27226-00)
90201-25289-00
$8.49
5
WASHER, PLATE (888)
90201-25527-00
$10.49
6
WASHER, PLATE (8R6)
90201-252F1-00
$8.49
7
CALIPER ASSY (LEFT)
8FA-2580T-01-00
Unavailable
8
PISTON ASSY, CALIPER
8CR-W0057-00-00
Unavailable
9
CALIPER SEAL KIT
8CR-W0047-00-00
$21.99
10
BRAKE PAD KIT 2
8FA-W0046-01-00
$70.99
11
SUPPORT, PAD
8DJ-25919-00-00
$20.99
12
PIN, PAD
8CR-25924-00-00
$14.49
13
BLEED SCREW KIT
8CR-W0048-00-00
$13.49
14
HOSE, BRAKE 1
8FK-25872-00-00
Unavailable
15
BOLT, UNION(3GM)
90401-10159-00
$11.49
16
WASHER, PLATE(481)
90201-10118-00
Unavailable
17
BOLT, WASHER BASED(1AR)
90105-10634-00
Unavailable
18
MASTER CYLINDER SUB ASSY
8FA-W2587-00-00
Unavailable
19
CYLINDER KIT, MASTER
8CR-W0041-00-00
Unavailable
20
RESERVOIR CAP SET
8CR-W2585-00-00
Unavailable
21
DIAPHRAGM, RESERVOIR
55U-25854-00-00
Unavailable
22
SCREW, FLAT
98707-04012-00
Unavailable
23
BOLT, LEVER
8CR-2589F-00-00
Unavailable
24
LEVER 1
8CR-83912-00-00
Unavailable
24
LEVER 1
8DN-83912-00-00
Unavailable
25
STOP SWITCH ASSY
8FP-82530-00-00
Unavailable
26
WASHER, PLAIN
8CR-8398X-00-00
Unavailable
27
NUT, NYLON
95707-05300-00
Unavailable
28
BRACKET, MASTER CYLINDER
8FA-25867-00-00
Unavailable
29
BOLT,SOCKET
91317-06025-00
Unavailable
30
BOLT, UNION(3GM)
90401-10159-00
$11.49
31
WASHER, PLATE(481)
90201-10118-00
Unavailable
32
HOLDER, BRAKE HOSE
8FA-25886-00-00
Unavailable
33
BOLT(3KJ)
90109-063F1-00
Unavailable
34
PARKING BRAKE COMP.
8FA-25970-01-00
Unavailable
35
PARKING BRAKE PAD KIT
8FA-W0045-00-00
Unavailable
36
COLLAR
90387-06058-00
Unavailable
37
BOLT
90111-06042-00
Unavailable
38
SPRING, COMPRESSION
90501-120A0-00
Unavailable
39
WASHER 6474553400
90201-12161-00
Unavailable
40
CABLE, BRAKE
8FS-26351-00-00
Unavailable
41
LEVER 2
8FA-83922-00-00
Unavailable
42
COLLAR
90387-06043-00
Unavailable
43
BOLT, BUTTON HEAD
92017-06014-00
Unavailable
44
. WASHER, PLATE
90201-06050-00
Unavailable
45
COLLAR
90387-081M9-00
Unavailable
46
BOLT, BUTTON
92017-08020-00
Unavailable
47
WASHER PLATE 141181390000
90201-08085-00
Unavailable
48
TAG, CAUTION
8CR-23496-00-00
Unavailable
