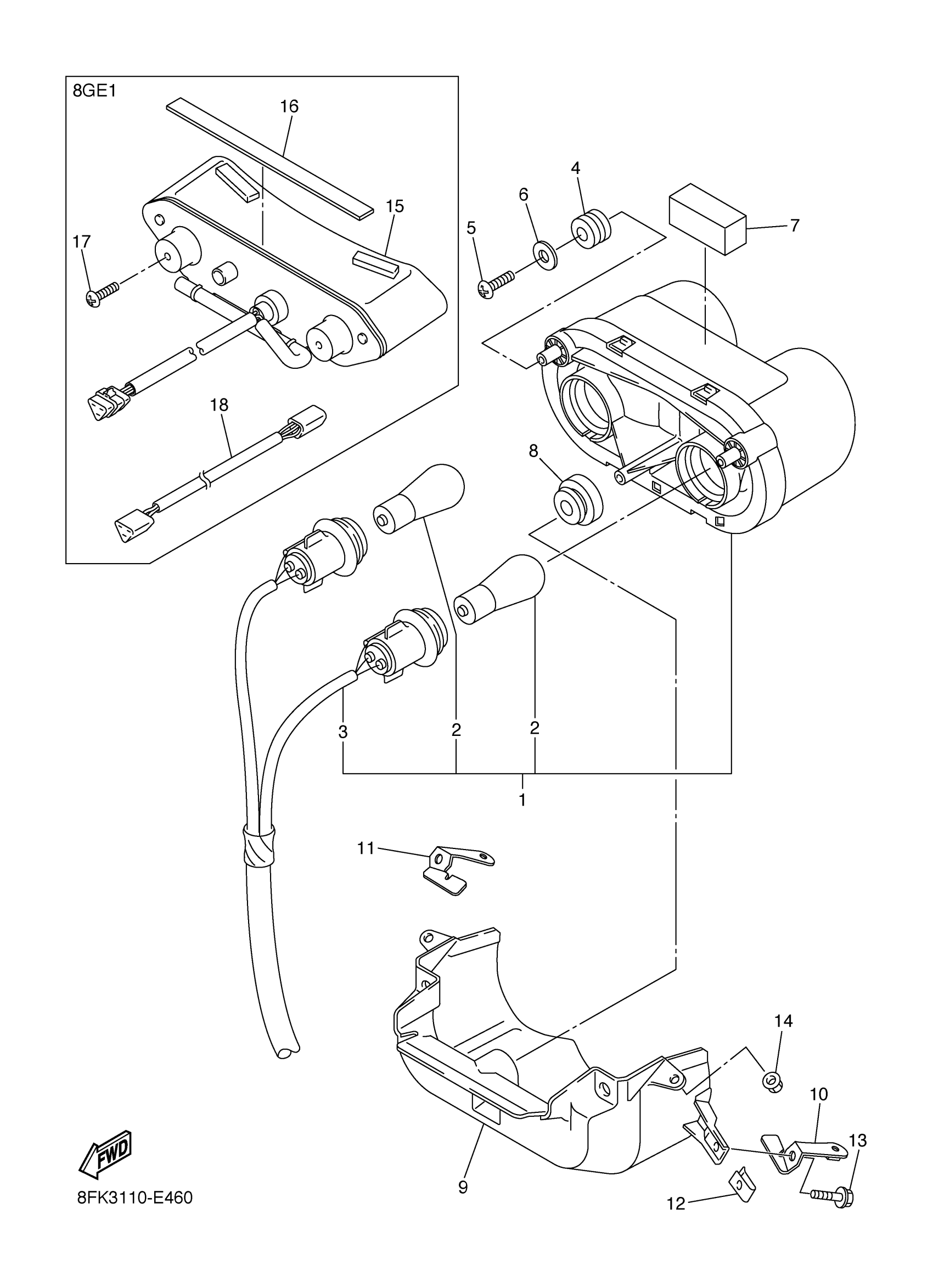

Yamaha RS90MSL (VECTOR MOUNTAIN SE) 8GE1 2006 TAILLIGHT Diagram
#
Description
Price
3
CORD ASSY
5JJ-84755-00-00
Unavailable
6
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
7
DAMPER
5JJ-21747-00-00
Unavailable
9
BRACKET, TAILLIGHT
8FA-2117E-00-00
Unavailable
10
BRACKET, FRONT
8ES-77531-00-00
Unavailable
11
BRACKET, FRONT (R.H)
8ES-77532-00-00
Unavailable
12
NUT, SPRING(4ES)
90183-06069-00
Unavailable
13
BOLT, FLANGE
95817-06014-00
Unavailable
15
TAILLIGHT UNIT ASSY
5PW-84710-10-00
Unavailable
16
DAMPER
8FS-21747-00-00
Unavailable
17
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
18
CORD, TAILLIGHT
8FS-84717-10-00
Unavailable
