2006 Yamaha Vector Mountain Se (RS90MSL) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2006 Yamaha Vector Mountain Se (RS90MSL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

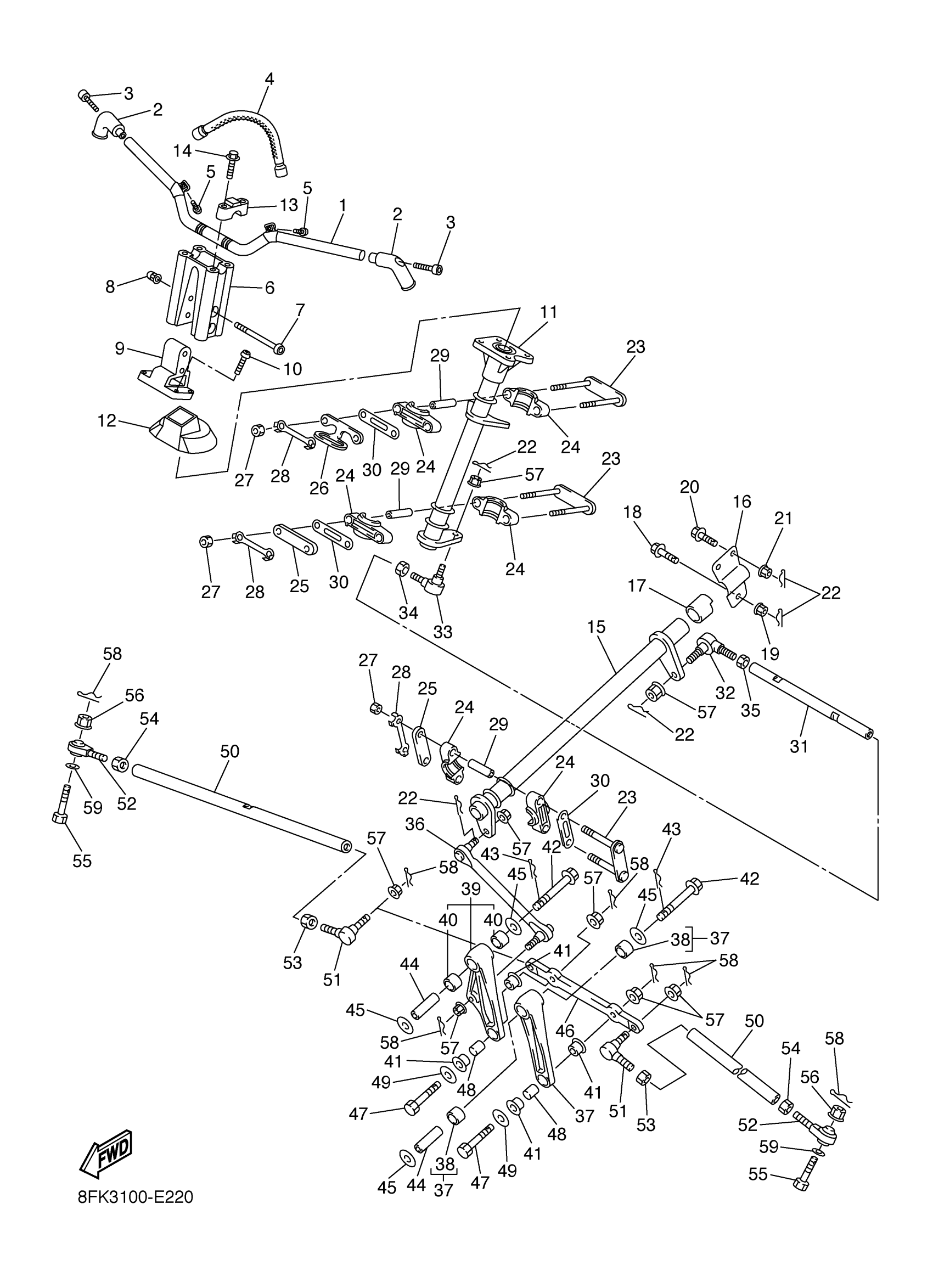

2006 Yamaha Vector Mountain Se (RS90MSL) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

8GE-26111-01-00

—
Out of stock

2

END, GRIP

8FP-26246-00-00

1
Out of stock

3

BOLT

91318-06040-00

1
Out of stock

4

STRAP, STRG

8FS-23829-00-00

—
Out of stock

5

BOLT, BUTTON HEAD

92014-06020-00

1
Out of stock

6

JOINT

8GE-2381B-00-00

1
Out of stock

7

BOLT, BUTTON HEAD

92014-08070-00

—
Out of stock

8

NUT, CROWN(3AA)

90176-08068-00

1
Out of stock

9

BRKT 20

8GF-2381T-10-00

—
Out of stock

10

BOLT, BUTTON HEAD(3YF)

92014-08025-00

1
Out of stock

11

COLUMN, STEERING 2

8FA-23813-01-00

—
Out of stock

12

COVER, HANDLEBAR LOWER 1

8GF-26144-00-00

—
Out of stock

13

HOLDER, HANDLE UPPER

3SP-23441-00-00

1
Out of stock

14

BOLT, FLANGE(4FM)

95814-08035-00

1
Out of stock

15

COLUMN, STEERING

8FA-23811-00-00

—
Out of stock

16

COVER, STEERING

8FA-23818-02-00

—
Out of stock

17

BEARING, STEERING UPPER

8FA-23873-01-00

—
Out of stock

18

BOLT, WASHER BASED(4KD)

90105-10728-00

—
Out of stock

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

—
Out of stock

20

BOLT, WASHER BASED(JA1)

90105-08552-00

—
Out of stock

21

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

22

CLIP 136253750000

90468-12006-00

—
Out of stock

23

HOLDER, BEARING

8FA-23872-00-00

—
Out of stock

24

PLANE BEARING, STEERING

8FA-23812-00-00

—
Out of stock

25

HOLDER 2

8FA-23867-00-00

—
Out of stock

26

HOLDER, BEARING

8CJ-23872-00-00

—
Out of stock

27

NUT(6TA)

95337-08600-00

—
Out of stock

28

WASHER, LOCK 1

1UY-23894-01-00

—
Out of stock

29

COLLAR

90387-09006-00

—
Out of stock

30

WASHER, PLAIN

8FA-23843-00-00

—
Out of stock

31

ROD, STEERING

8FA-23828-00-00

—
Out of stock

32

JOINT, UNIVERSAL 3

8CR-23847-00-00

—
Out of stock

33

JOINT, UNIVERSAL 2

8CR-23845-10-00

—
Out of stock

34

NUT (3WP1)

95317-10700-00

—
Out of stock

35

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

36

ROD, STEERING RELAY

8FA-23821-00-00

—
Out of stock

37

ARM PIVOT ASSY

8FG-2389K-00-00

—
Out of stock

38

BUSH, FORMED

90383-17001-00

—
Out of stock

39

ARM PIVOT ASSY. , 2

8FA-2389M-00-00

—
Out of stock

40

BEARING

93317-41785-00

—
Out of stock

41

BUSH, SOLID

90381-14001-00

—
Out of stock

42

BOLT, FLANGE

90105-12017-00

—
Out of stock

43

CLIP, RING

8FA-2384N-00-00

—
Out of stock

44

COLLAR

8FA-2412G-00-00

—
Out of stock

45

WASHER, PLATE

90201-121U3-00

—
Out of stock

46

ARM, IDLER

8FU-23826-00-00

—
Out of stock

47

BOLT, PIN HOLE (8M6)

90102-10044-00

—
Out of stock

48

COLLAR

90387-10070-00

—
Out of stock

49

WASHER PLATE (3L6)

90201-10742-00

—
Out of stock

50

ROD, TIE

8FW-23831-00-00

—
Out of stock

51

JOINT, UNIVERSAL 2

8CR-23845-10-00

—
Out of stock

52

JOINT, UNIVERSAL 3

8FA-23847-00-00

—
Out of stock

53

NUT (3WP1)

95317-10700-00

—
Out of stock

54

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

55

BOLT, PIN HOLE (8M6)

90102-10044-00

—
Out of stock

56

NUT, NYLON

95707-10300-00

—
Out of stock

57

NUT, FLANGE(8AB)

95707-10500-00

—
Out of stock

58

PIN, COTTER

91490-20025-00

—
Out of stock

59

WASHER PLATE (3L6)

90201-08759-00

—
Out of stock
