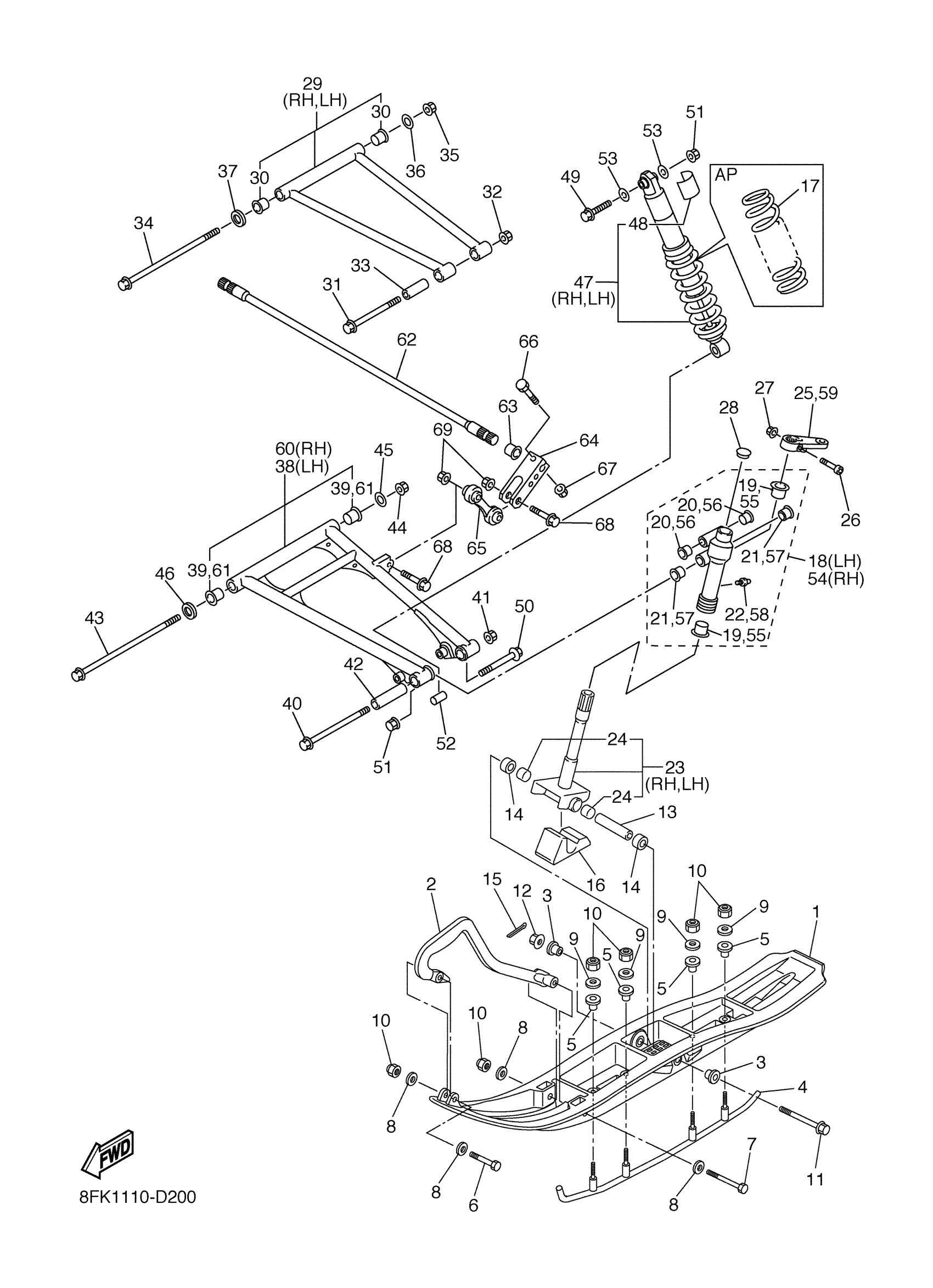

Find the part on the Ski diagram for your 2006 Yamaha Vector Mountain Se (RS90MSL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha Vector Mountain Se (RS90MSL) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8FK-23711-00-BK

1
Out of stock

2

BLACK 8DM HANDLE PLASTIC

8DM-23712-00-BK

1
Out of stock

2

RED 8DM HANDLE PLASTIC

8DM-23712-00-RD

1
Out of stock

3

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

4

RUNNER

8EN-23731-00-XX

1
Out of stock

5

BUSH, SKI 1

8EK-F3751-00-00

1
Out of stock

6

BOLT, HEXAGON

97017-08055-00

1
Out of stock

7

BOLT, HEXAGON

97027-08100-00

1
Out of stock

8

WASHER, PLATE (3L7)

90201-08784-00

1
Out of stock

9

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

10

NUT, NYLON

95717-08300-00

1
Out of stock

11

BOLT, FLANGE

90105-10410-00

1
Out of stock

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

13

COLLAR

90387-10036-00

1
Out of stock

14

COLLAR

90387-16013-00

1
Out of stock

15

PIN, COTTER

91490-20025-00

—
Out of stock

16

STOPPER 1

8CR-23743-10-00

—
Out of stock

17

SPRING ASSY 1

8ES-23760-00-00

—
Out of stock

18

STEERING KNUCKLE ASSY (LEFT)

8FA-23501-01-00

—
Out of stock

18

STEERING KNUCKLE ASSY (LEFT) (DEEP RED METALLIC K)

8FA-23501-10-00

1
Out of stock

19

BUSH, SOLID

90381-25115-00

—
Out of stock

20

BUSH, SOLID

90381-15N50-00

—
Out of stock

21

BUSH, SOLID

90381-18N51-00

—
Out of stock

22

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

23

COLUMN, SKI ASSY

8FG-23803-00-00

—
Out of stock

24

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

25

ARM, OUTSIDE 1

8FA-23851-00-00

—
Out of stock

26

BOLT, HEXAGON SOCKET HEAD

90110-08N53-00

—
Out of stock

27

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

28

CAP, CASE

3YK-22472-40-00

—
Out of stock

29

FRONT UPPER ARM COMP.

8FK-23540-00-00

—
Out of stock

29

FRONT UPPER ARM COMP.

8FK-23540-10-00

—
Out of stock

30

BUSH, SOLID

90381-15N50-00

—
Out of stock

31

BOLT, FLANGE

90105-10N51-00

—
Out of stock

32

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

33

COLLAR

90387-10099-00

—
Out of stock

34

BOLT, FLANGE

90105-10N54-00

—
Out of stock

35

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

36

WASHER, PLATE (17K)

90201-106F2-00

—
Out of stock

37

WASHER

90209-15N50-00

—
Out of stock

38

FRONT LOWER ARM COMP. (LEFT)

8GY-23570-00-00

1
Out of stock

38

FRONT LOWER ARM COMP. (LEFT)

8GY-23570-10-00

—
Out of stock

39

BUSH, SOLID

90381-16N51-00

—
Out of stock

40

BOLT, FLANGE

90105-12N54-00

—
Out of stock

41

NUT, U FLANGE

95607-12200-00

—
Out of stock

42

COLLAR

90387-12N54-00

—
Out of stock

43

BOLT, FLANGE

90105-10N55-00

—
Out of stock

44

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

45

WASHER, PLATE (17K)

90201-106F2-00

—
Out of stock

46

WASHER

90209-15N50-00

—
Out of stock

47

ABSORBER ASSY 1

8FK-2376A-90-00

—
Out of stock

47

ABSORBER ASSY 1

8GE-2376A-00-00

1
Out of stock

48

LABEL, WARNING

4AA-22259-60-00

—
Out of stock

49

BOLT, WASHER BASED (4K0)

90105-10169-00

—
Out of stock

50

BOLT, WASHER BASED(59V)

90105-10392-00

—
Out of stock

51

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

52

COLLAR

90387-10N59-00

—
Out of stock

53

WASHER, PLATE (17K)

90201-106F2-00

—
Out of stock

54

STEERING KNUCKLE ASSY (RIGHT)

8FA-23502-01-00

—
Out of stock

54

STEERING KNUCKLE ASSY (RIGHT) (DEEP RED METALLIC K)

8FA-23502-10-00

1
Out of stock

55

BUSH, SOLID

90381-25115-00

—
Out of stock

56

BUSH, SOLID

90381-15N50-00

—
Out of stock

57

BUSH, SOLID

90381-18N51-00

—
Out of stock

58

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

59

ARM, OUTSIDE 2

8FA-23852-00-00

—
Out of stock

60

FRONT LOWER ARM COMP. (RIGHT)

8GY-23580-00-00

—
Out of stock

60

FRONT LOWER ARM COMP. (RIGHT)

8GY-23580-10-00

—
Out of stock

61

BUSH, SOLID

90381-16N51-00

—
Out of stock

62

BAR, STABILIZER FRONT

8FA-2386E-00-00

1
Out of stock

63

BUSH, STABILIZER FRONT

8FA-2386G-00-00

—
Out of stock

64

ARM, STABILIZER

8FA-2386L-10-00

—
Out of stock

65

JOINT, STABILIZER 1

8ES-2385L-00-00

—
Out of stock

66

BOLT, HEXAGON (538)

90101-06278-00

—
Out of stock

67

NUT, U FLANGE

95604-06200-00

—
Out of stock

68

BOLT, FLANGE(4FM)

95814-08030-00

—
Out of stock

69

NUT, U FLANGE(4KG)

95604-08200-00

—
Out of stock
