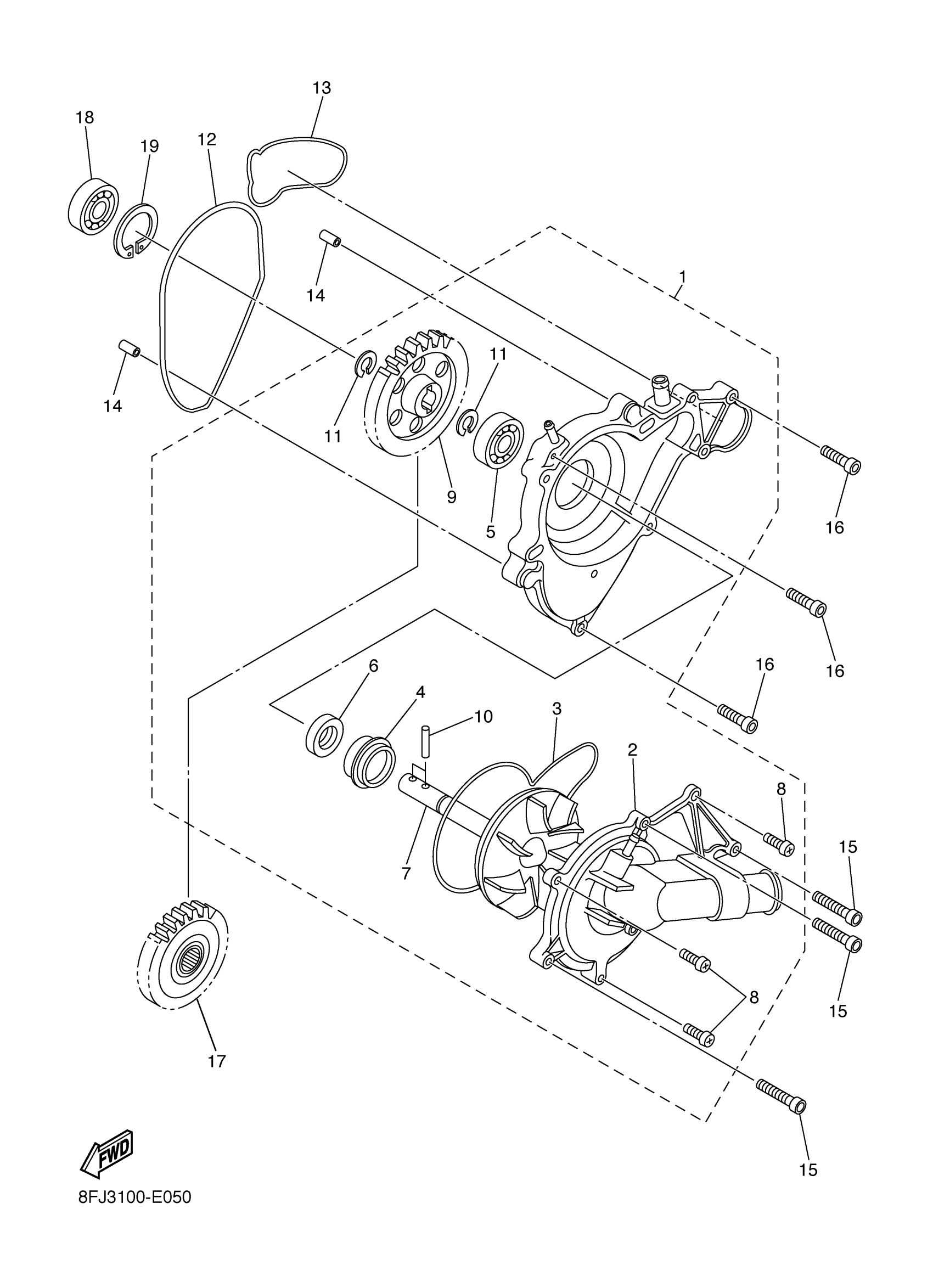

Yamaha RS90LTYW (RS VECTOR LT_GT) 8HD3 2009 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

8ES-12420-02-00

$363.32

2

COVER, HOUSING

8ES-12422-00-00

Unavailable

3

GASKET, HOUSING COVER 1

8ES-12427-00-00

$14.37

4

SEAL, MECHANICAL

8ES-12438-00-00

$37.82

5

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.17

6

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

$9.45

7

IMPELLER SHAFT ASSY

8ES-12450-01-00

$31.30

8

SCREW, PAN HEAD

98580-06016-00

$2.76

9

GEAR, IMPELLER SHAFT

8ES-12459-01-00

Unavailable

10

PIN, DOWEL (409)

93604-16092-00

$2.01

11

CIRCLIP(2R6)

99001-08600-00

$5.87

12

GASKET

8ES-12435-00-00

$11.86

13

GASKET

8ES-12434-00-00

$3.39

14

PIN, DOWEL

99530-08012-00

$5.39

15

TORNILLO ALLEN

91312-06040-00

$6.02

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

GEAR, DRIVE

8ES-12436-00-00

Unavailable

18

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.17

19

CIRCLIP(2FL)

93420-26077-00

Unavailable
