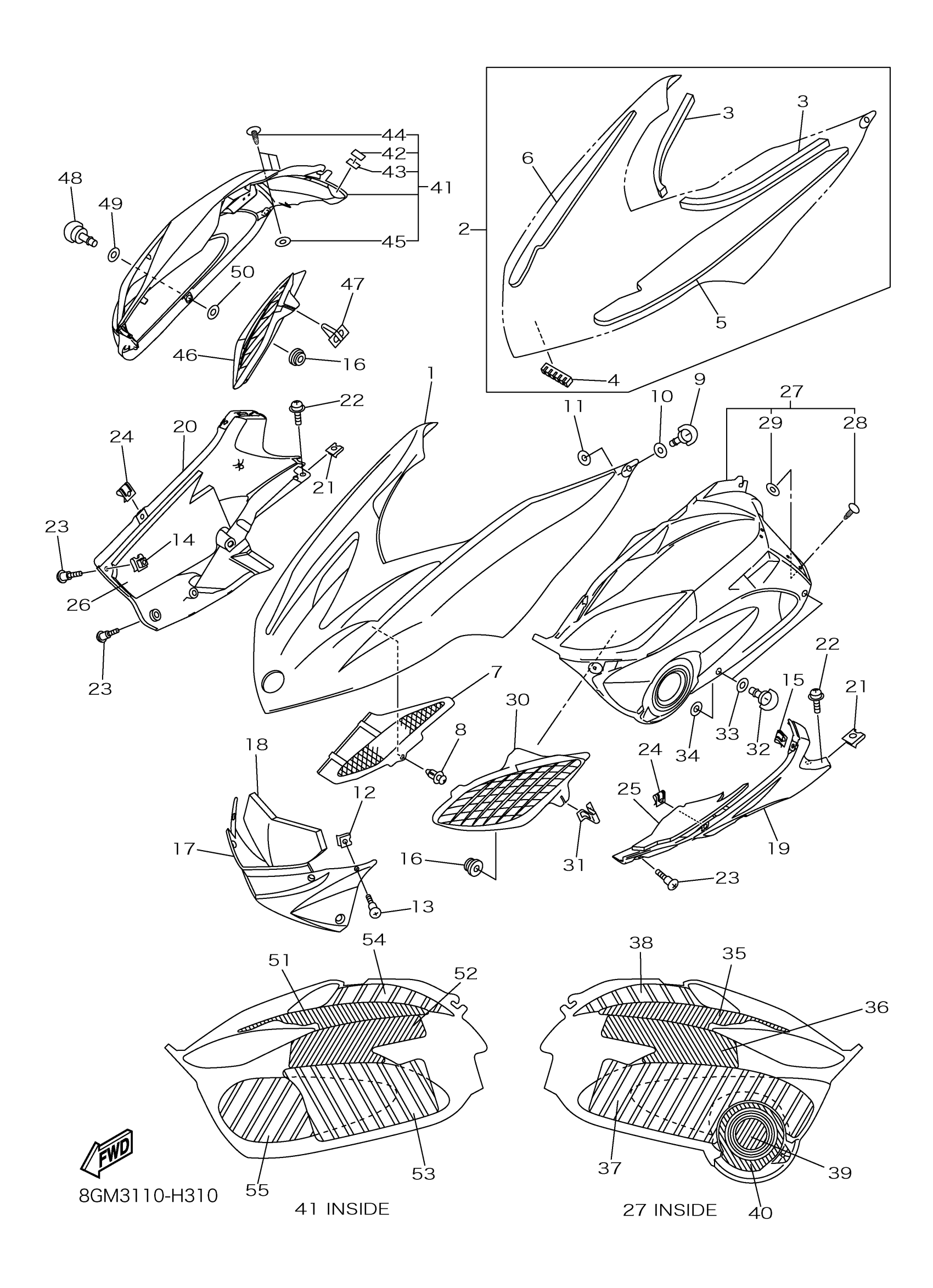

Yamaha RS90LTYW (RS VECTOR LT_GT) 8HD3 2009 SHROUD Diagram
#
7
LOUVER 3
8FP-77133-00-00
Unavailable
12
NUT, SPRING(4ES)
90183-06069-00
Unavailable
16
GROMMET
90480-13019-00
Unavailable
17
PANEL, SUB FRAME 1
8FA-21912-00-00
Unavailable
18
DAMPER 1
8FP-77198-00-00
Unavailable
19
HOOD 1
8GM-21982-00-00
Unavailable
20
HOOD 2
8FP-21983-00-00
Unavailable
21
NUT, SPRING(4ES)
90183-06069-00
Unavailable
22
SCREW, WITH WASHER
90159-06011-00
Unavailable
25
DAMPER, NOISE 18
8GM-77278-00-00
Unavailable
26
DAMPER, NOISE 19
8FP-77279-00-00
Unavailable
27
HOOD ASSY 3
8GM-2197A-02-00
Unavailable
28
. RIVET
90269-07064-00
Unavailable
29
WASHER, PLATE
90202-07002-00
Unavailable
30
LOUVER 5
8FP-77109-00-00
Unavailable
31
CLIP
90468-06001-00
Unavailable
35
DAMPER, NOISE 12
8FP-77272-00-00
Unavailable
36
DAMPER, NOISE 13
8FP-77273-00-00
Unavailable
37
DAMPER, NOISE 14
8GM-77274-00-00
Unavailable
38
DAMPER, SHROUD
8FP-77196-00-00
Unavailable
39
DAMPER, NOISE 11
8GM-77271-00-00
Unavailable
40
DAMPER, NOISE 12
8GM-77272-00-00
Unavailable
41
HOOD ASSY 4
8FR-2198A-03-00
Unavailable
42
TAPE 2
8FR-7717F-00-00
Unavailable
43
PAD 1
8FR-77151-00-00
Unavailable
44
. RIVET
90269-07064-00
Unavailable
45
WASHER, PLATE
90202-07002-00
Unavailable
46
LOUVER 6
8FP-77108-00-00
Unavailable
47
CLIP
90468-06001-00
Unavailable
51
DAMPER, NOISE 15
8FP-77275-00-00
Unavailable
52
DAMPER, NOISE 16
8FP-77276-01-00
Unavailable
53
DAMPER, NOISE 17
8FP-77277-01-00
Unavailable
54
DAMPER, SHROUD
8FP-77196-10-00
Unavailable
55
DAMPER
8FP-78316-10-00
Unavailable
