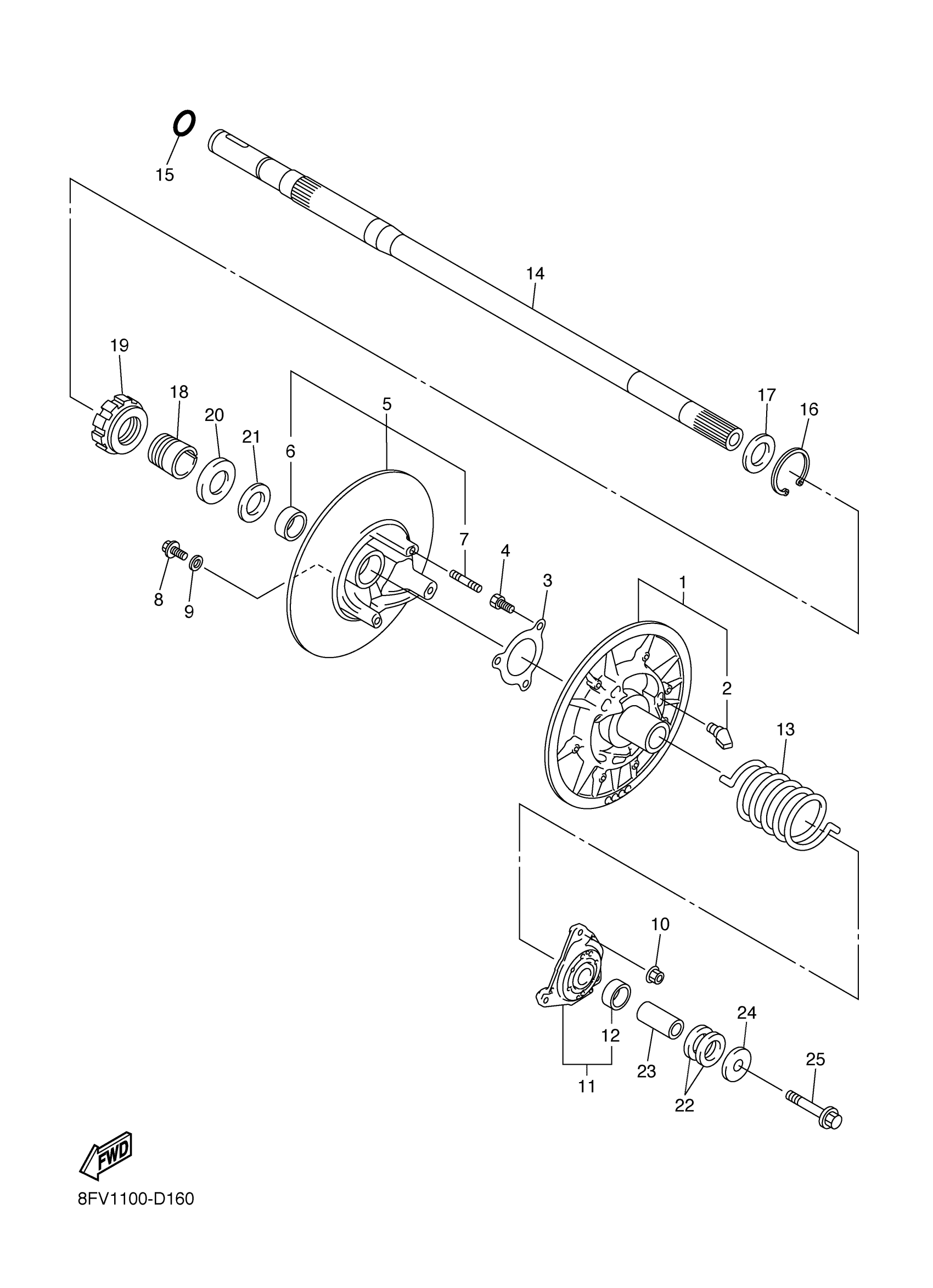

Yamaha RS90LTYW (RS VECTOR LT_GT) 8HD3 2009 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8CR-17660-20-00

Unavailable

2

SHOE, RAMP

8AV-17688-10-00

$27.33

3

STOPPER, HOLDER

8BV-17656-00-00

$20.20

4

SCREW, BINDING

98907-06016-00

$7.14

5

SECONDARY SLIDING SHEAVE

8BU-17670-20-00

$218.32

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

7

BOLT, STUD 3

95617-08630-00

$3.69

8

BOLT, WASHER BASED(8BN)

90105-06734-00

$2.82

9

WASHER, PLATE (371)

90201-06431-00

$4.48

9

WASHER, PLATE (22K)

90201-061H1-00

$3.74

10

NUT(8BN)

90179-08655-00

$7.46

11

SEAT SPRING SET

8BV-17604-31-00

$158.42

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

13

SPRING, TORSION

90508-60012-00

$41.64

14

SHAFT, SECONDARY

8FU-17681-00-00

$566.65

15

O-RING

93210-22298-00

$6.57

16

CIRCLIP

93410-30084-00

$4.98

17

WASHER, PLATE (2H7)

90201-30666-00

$9.34

18

COLLAR

8FA-17645-10-00

$57.01

19

NUT, BEARING

8FA-17642-00-00

$122.20

20

WASHER

90209-25012-00

$11.95

21

WASHER, PLATE (248-27226-00)

90201-25289-00

$7.18

22

WASHER, PLATE (T=0.5)

90201-222F0-00

$5.89

22

WASHER, PLATE (8L8)

90201-225A4-00

$7.85

23

COLLAR

90387-14019-00

$24.45

24

WASHER, PLATE

90201-14022-00

$4.86

25

BOLT, WASHER BASED(8CJ)

90105-14766-00

$23.89
