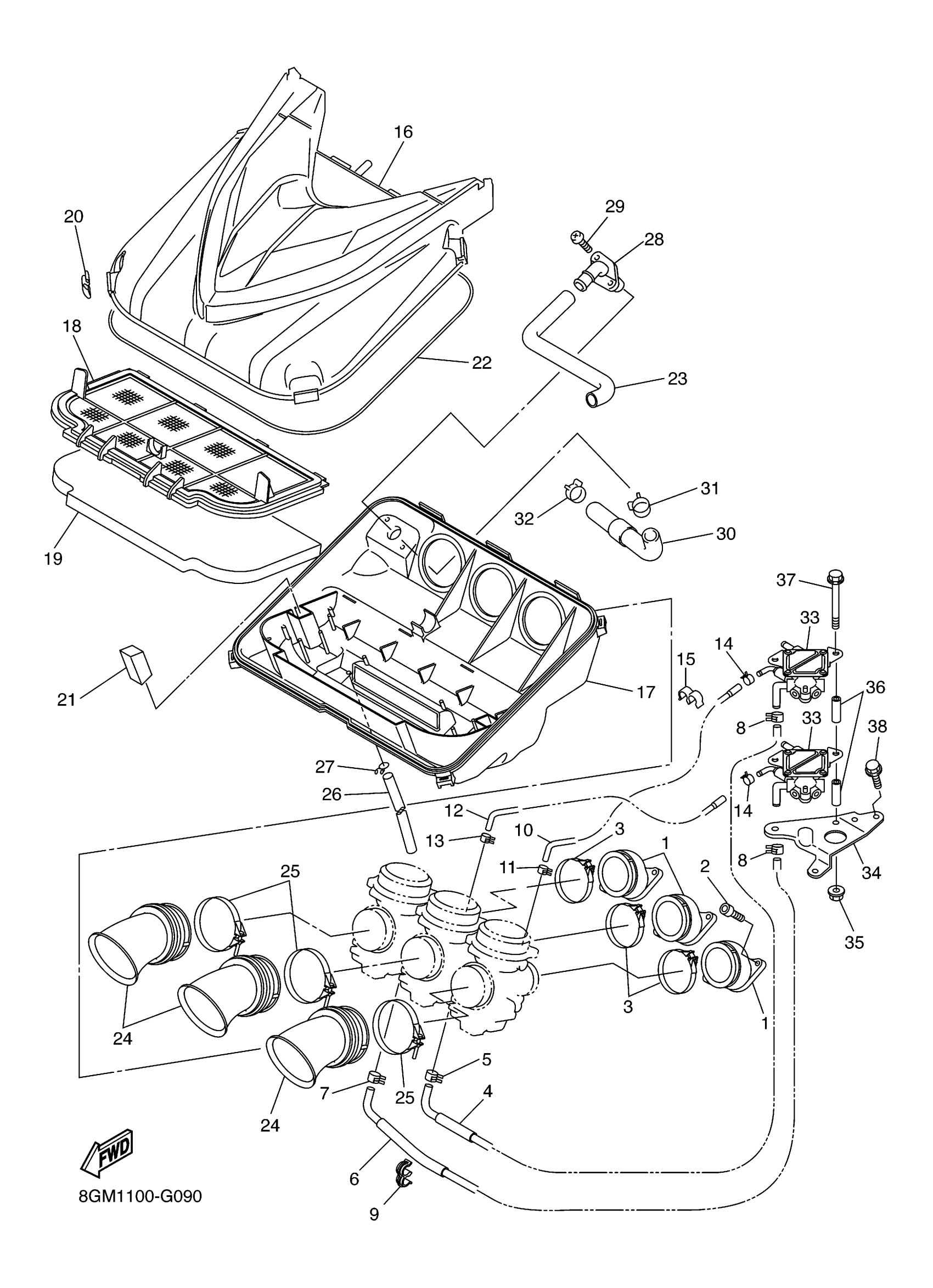

Yamaha RS90LTYW (RS VECTOR LT_GT) 8HD3 2009 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
8ES-13586-10-00
$80.99
2
BOLT,SOCKET HEAD
91314-06020-00
$1.49
3
HOSE CLAMP ASSY
90450-57016-00
$21.99
4
HOSE
8GM-14294-00-00
$47.99
5
CLIP
90467-11028-00
Unavailable
6
PIPE
8GM-14298-00-00
Unavailable
7
CLIP
90467-11028-00
Unavailable
8
CLIP
90467-11028-00
Unavailable
9
CLAMP(4HM)
90464-13194-00
Unavailable
10
HOSE, AIR
8GM-13895-10-00
Unavailable
11
CLIP(41W)
90467-08092-00
$9.49
12
HOSE, AIR 2
8GM-13892-10-00
Unavailable
13
CLIP(41W)
90467-08092-00
$9.49
14
CLIP
90467-090A3-00
$2.28
15
CLAMP
90464-07006-00
Unavailable
16
SILENCER, INTAKE 1
8GM-14431-00-00
Unavailable
17
SILENCER, INTAKE 2
8GM-14441-00-00
Unavailable
18
PLATE, ELEMENT
8GM-14472-00-00
Unavailable
19
ELEMENT, AIR CLEANER
8ES-14451-00-00
Unavailable
20
HOOK
8FA-14436-00-00
Unavailable
21
DAMPER 1
8ES-14425-00-00
Unavailable
22
SEAL
8GM-14452-00-00
Unavailable
23
PIPE
8GM-14419-00-00
Unavailable
24
JOINT, AIR CLEANER 1
8ES-14453-00-00
Unavailable
25
HOSE CLAMP ASSY
90450-67003-00
Unavailable
26
HOSE (L198)
90445-11293-00
Unavailable
27
CLIP
90467-100A1-00
Unavailable
28
PIPE, JOINT
8GC-14485-00-00
Unavailable
29
SCREW, TRUSS TAP.
97707-50025-00
Unavailable
30
PIPE, OIL TANK BREATHER
8GM-21745-00-00
Unavailable
31
CLIP
90467-22002-00
Unavailable
32
CLIP(34X)
90467-22097-00
Unavailable
33
FUEL PUMP ASSY
8GM-13910-00-00
Unavailable
34
BRACKET, FUEL PUMP
8GM-24491-00-00
Unavailable
35
NUT, FLANGE
95702-06500-00
Unavailable
36
COLLAR (878)
90387-08262-00
Unavailable
37
BOLT, FLANGE
95022-06085-00
Unavailable
38
BOLT, FLANGE
95817-06016-00
Unavailable
