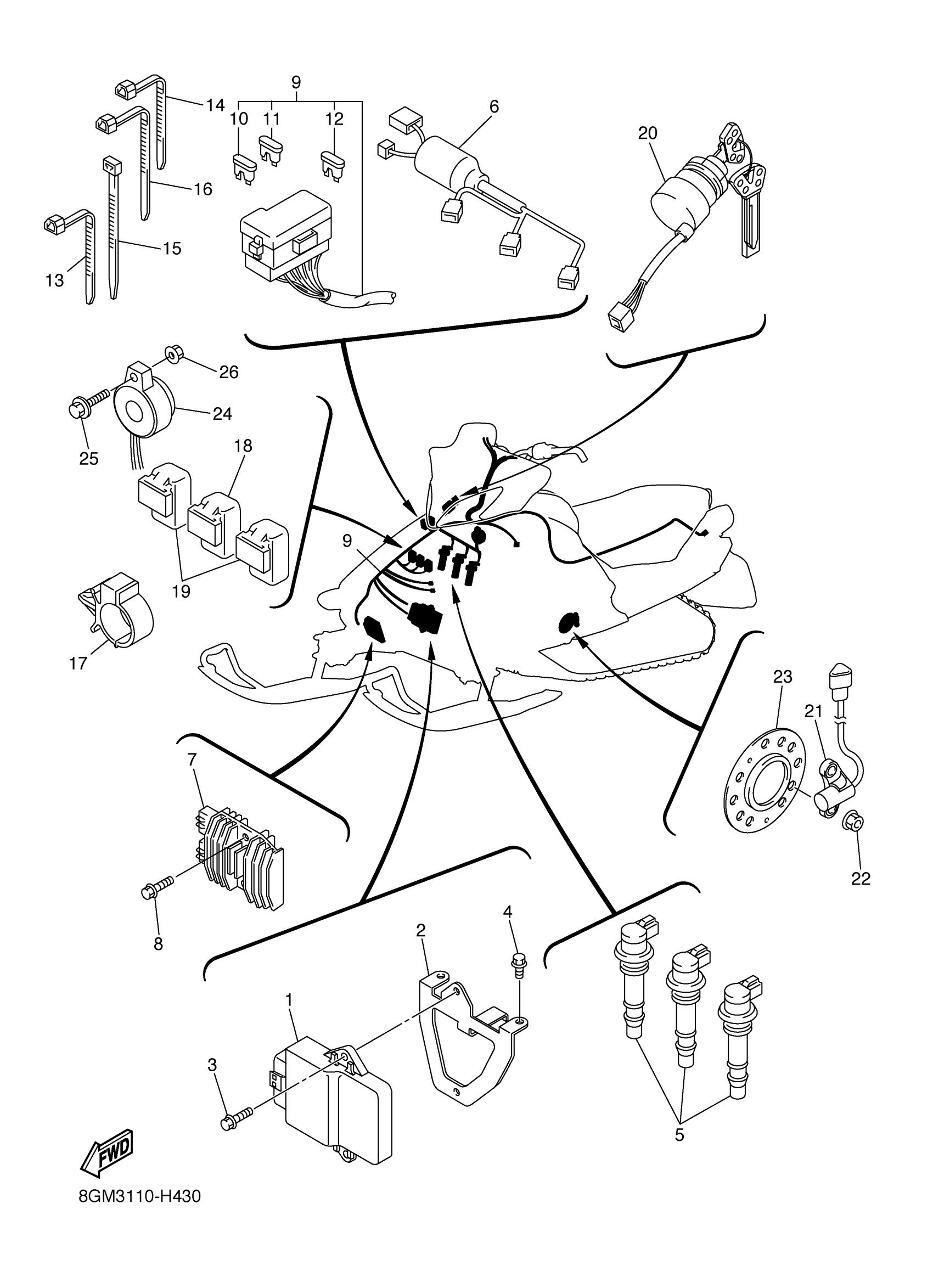

Yamaha RS90LTYW (RS VECTOR LT_GT) 8HD3 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

8ET-82305-20-00

$676.99

2

BRACKET, UNIT

8ES-85991-00-00

$12.26

3

BOLT, FLANGE

95817-06016-00

$1.49

4

BOLT, FLANGE

95812-06010-00

$2.75

5

IGNITION COIL ASSY

8ES-82310-00-00

$137.01

6

LEAD WIRE ASSY

8GM-81515-00-00

Unavailable

7

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

$370.15

8

BOLT, FLANGE DEEP RECESS

95D95-06025-00

Unavailable

9

WIRE HARNESS ASSY

8HC-82590-00-00

Unavailable

10

FUSE

5JJ-82151-20-00

$6.42

11

. FUSE (10A)

67F-82151-40-00

$6.67

12

. FUSE (3A)

67F-82151-30-00

$4.89

13

BAND, SWITCH CORD

25G-83936-01-00

$4.12

14

CLAMP(4FM)

90464-15195-00

$2.77

15

CLAMP(4FM)

90464-15195-00

$2.77

16

CLAMP

90464-13077-00

$6.68

17

CLAMP

90464-16006-00

$8.31

18

RELAY ASSY

5DM-81950-01-00

$24.72

19

RELAY ASSY (8DM-11)

8DM-81950-11-00

$23.86

20

MAIN SWITCH ASSY

8GL-82510-00-00

$93.72

21

SENSOR, SPEED

8GK-83755-12-00

$164.09

22

NUT, NYLON

95717-08300-00

$2.57

23

HOUSING, FRONT AXLE

8EK-47551-00-00

$8.97

24

BUZZER

8GL-83383-00-00

$89.92

25

SCREW, WITH WASHER

90159-05035-00

$6.22

26

NUT, FLANGE

95702-05500-00

$0.74
