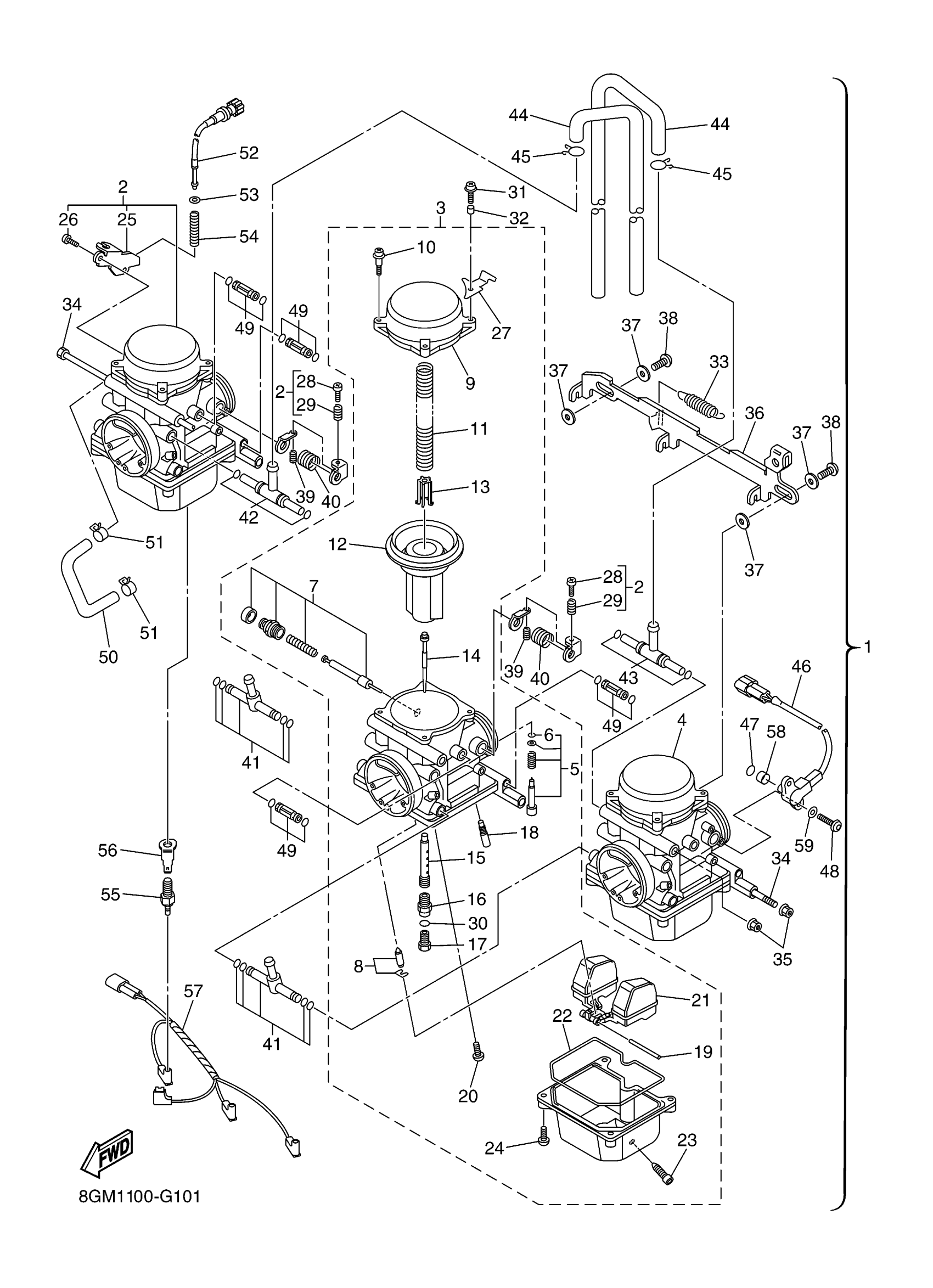

Yamaha RS90LTYW (RS VECTOR LT_GT) 8HD3 2009 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

8GM-14900-00-00

Unavailable

2

CARBURETOR ASSY 1

8ES-14901-01-00

$481.99

3

CARBURETOR ASSY 2

8ES-14902-01-00

$555.99

4

CARBURETOR ASSY 3

8ES-14903-01-00

$555.99

5

PILOT SCREW SET

8ES-14105-01-00

Unavailable

6

O-RING

8ES-14147-00-00

$7.49

7

STARTER SET

8ES-1410A-00-00

$42.72

8

NEEDLE VALVE SET

8ES-14107-00-00

$37.55

9

COVER, DIAPHRAGM

8ES-14958-00-00

$69.18

10

SCREW

4JH-14216-00-00

$28.08

10

SCREW

4JH-14216-00-00

$28.08

11

SPRING, DIAPHRAGM

8ES-14933-00-00

$4.86

12

DIAPHRAGM ASSY

8ES-14940-00-00

$144.95

13

SEAT, SPRING

4JH-14936-00-00

$26.51

14

NEEDLE

8ES-14916-00-00

$18.62

15

JET, NEEDLE

8ES-14947-00-00

$35.66

16

PIPE, MAIN BREED

8ES-1414G-00-00

$26.15

17

JET, MAIN (#145)

3TJ-14943-36-00

$17.40

17

JET, MAIN (#150)

3TJ-14943-37-00

$14.26

17

JET, MAIN

3TJ-14943-87-00

$17.41

18

JET (#40)

8ES-14948-03-00

$12.64

18

JET (#45)

8ES-14948-05-00

$18.21

18

JET (#48)

8ES-14948-06-00

$18.77

18

JET (#50)

8ES-14948-07-00

$19.45

19

. PIN, FLOAT ARM

663-14548-00-00

$5.34

20

SCREW, PAN HEAD (713)

98580-04008-00

$4.54

21

FLOAT

8ES-14985-00-00

$33.55

22

GASKET, FLOAT CHAMBER

8ES-14984-00-00

$18.21

23

PLUG, DRAIN

3TJ-14191-40-00

$17.22

24

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

25

BRACKET, THROTTLE 1

8ES-14926-01-00

$38.00

26

SCREW

8ES-14592-09-00

Unavailable

27

BRACKET, THROTTLE 1

4TV-14926-00-00

$28.51

28

SCREW

5JG-14565-00-00

$6.52

29

SPRING, ADJUST SCREW

5JG-14531-00-00

$6.52

30

O-RING

3TJ-14564-40-00

$8.17

31

SCREW

8ES-14565-00-00

$2.20

32

COLLAR

4JH-14264-00-00

$12.75

33

SPRING

8ES-14935-00-00

$9.72

34

BOLT, HOLDING

8ES-14162-00-00

$18.83

35

NUT, FLANGE

95704-05500-00

Unavailable

36

LEVER, STARTER

8ES-14965-00-00

$47.43

37

COLLAR

8ES-14578-00-00

$1.32

38

SCREW

8ES-14567-00-00

$1.32

39

SPRING, THROTTLE STOP

4YR-14133-00-00

$6.46

40

SPRING

4JH-14487-00-00

$6.52

41

PIPE, FUEL

8ES-14295-00-00

$26.83

42

JOINT 1

8ES-13815-00-00

$35.08

43

JOINT 2

8ES-13816-00-00

$35.08

44

PIPE

8ES-14197-01-00

$22.69

45

CLIP

3TJ-14937-40-00

$6.43

46

THROTTLE SENSOR ASSY

8ES-85885-01-00

$387.23

47

O-RING

4TV-14562-00-00

$6.52

48

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.07

49

JOINT

8ES-14454-00-00

$13.91

50

HOSE

8ES-14987-00-00

$11.38

51

. CLIP

4TV-12486-00-00

$3.85

52

. ADJUST SCREW SET

8GM-14503-00-00

Unavailable

53

WASHER, PLATE(65J)

90201-05552-00

$3.69

54

SPRING, THROTTLE STOP

8GM-14134-00-00

$8.18

55

HEATER ASSY

5FU-83790-20-00

$42.63

56

TERMINAL 1

8FA-82103-00-00

$7.32

57

WIRE, SUB LEAD

8ES-81517-01-00

$33.14

58

COLLAR

4TV-14534-00-00

$17.69

59

WASHER(JF2)

92907-04600-00

$1.23
