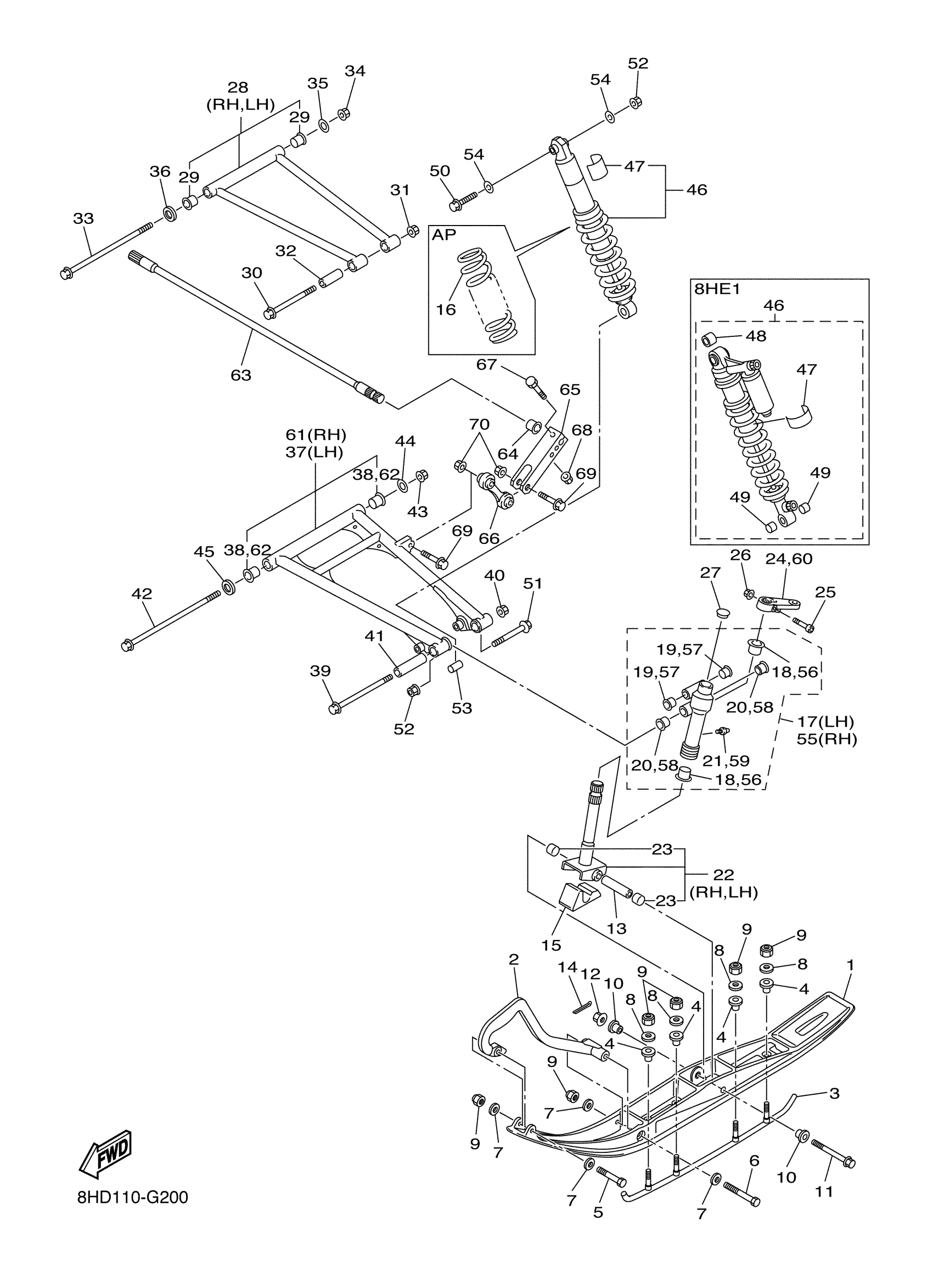

Yamaha RS90LTXB (RS VECTOR LTX) 8HD1 2008 SKI Diagram
#
2
REINFORCEMENT, HEAD
8DM-F3712-00-BU
Unavailable
2
REINFORCEMENT, HEAD
8DM-F3712-00-RD
Unavailable
3
RUNNER 1
8GK-F3731-00-00
Unavailable
4
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
10
. COLLAR 1
8EX-F3754-00-00
Unavailable
15
STOPPER 1
8CR-23743-10-00
Unavailable
16
SPRING ASSY 1
8ES-23760-00-00
Unavailable
16
SPRING ASSY 1
8ES-23760-10-00
Unavailable
16
SPRING ASSY 1 (K=2.1)
8FA-23760-00-00
Unavailable
16
SPRING ASSY 1 (K=1.9)
8FA-23760-10-00
Unavailable
16
SPRING ASSY 1 (K=1.7)
8FA-23760-20-00
Unavailable
17
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-00-00
Unavailable
17
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-10-00
Unavailable
18
BUSH, SOLID
90381-25115-00
Unavailable
19
BUSH, SOLID
90381-15N50-00
Unavailable
20
BUSH, SOLID
90381-18N51-00
Unavailable
21
NIPPLE, GREASE
93700-06M03-00
Unavailable
22
COLUMN, SKI ASSY
8ES-23803-00-00
Unavailable
23
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
24
ARM, OUTSIDE 1
8FA-23851-00-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-08N53-00
Unavailable
26
NUT, SELF-LOCKING
90185-08169-00
Unavailable
27
CAP, CASE
3YK-22472-40-00
Unavailable
28
FRONT UPPER ARM COMP.
8JA-23540-00-00
Unavailable
28
FRONT UPPER ARM COMP. (LEFT)
8JA-23540-60-00
Unavailable
29
BUSH, SOLID
90381-15N50-00
Unavailable
30
BOLT, FLANGE
90105-10N51-00
Unavailable
32
COLLAR
90387-10099-00
Unavailable
33
BOLT, FLANGE
90105-10N54-00
Unavailable
35
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
36
WASHER
90209-15N50-00
Unavailable
37
FRONT LOWER ARM COMP. (LEFT)
8JA-23570-00-00
Unavailable
37
FRONT LOWER ARM COMP. (LEFT)
8JA-23570-60-00
Unavailable
38
BUSH, SOLID
90381-16N51-00
Unavailable
39
BOLT, FLANGE
90105-12N54-00
Unavailable
40
NUT, U FLANGE
95607-12200-00
Unavailable
41
COLLAR
90387-12N54-00
Unavailable
42
BOLT, FLANGE
90105-10N55-00
Unavailable
44
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
45
WASHER
90209-15N50-00
Unavailable
46
ABSORBER ASSY 1
8GM-2376A-00-00
Unavailable
46
ABSORBER ASSY 1
8GV-2376A-00-00
Unavailable
47
LABEL, WARNING
4AA-22259-60-00
Unavailable
47
LABEL, WARNING
4AA-22259-60-00
Unavailable
48
DAMPER, BUSH B
8FA-2331R-00-00
Unavailable
49
BUSH, BIMETAL FORMED
90384-15N51-00
Unavailable
50
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
51
BOLT, WASHER BASED(59V)
90105-10392-00
Unavailable
53
COLLAR
90387-10N59-00
Unavailable
54
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
55
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-00-00
Unavailable
55
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-10-00
Unavailable
56
BUSH, SOLID
90381-25115-00
Unavailable
57
BUSH, SOLID
90381-15N50-00
Unavailable
58
BUSH, SOLID
90381-18N51-00
Unavailable
59
NIPPLE, GREASE
93700-06M03-00
Unavailable
60
ARM, OUTSIDE 2
8FA-23852-00-00
Unavailable
61
FRONT LOWER ARM COMP. (RIGHT)
8JA-23580-00-00
Unavailable
61
FRONT LOWER ARM COMP. (RIGHT) (YAMAHA BLACK)
8ES-23580-60-00
Unavailable
62
BUSH, SOLID
90381-16N51-00
Unavailable
63
BAR, STABILIZER FRONT
8FG-2386E-00-00
Unavailable
64
BUSH, STABILIZER FRONT
8FG-2386G-00-00
Unavailable
65
ARM, STABILIZER
8FG-2386L-00-00
Unavailable
66
JOINT, STABILIZER 1
8ES-2385L-00-00
Unavailable
67
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
68
NUT, U FLANGE
95604-06200-00
Unavailable
69
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
70
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
