- RS90LTGTZW (RS VECTOR LTX GT) 8JB10 2010
TRACK SUSPENSION 2

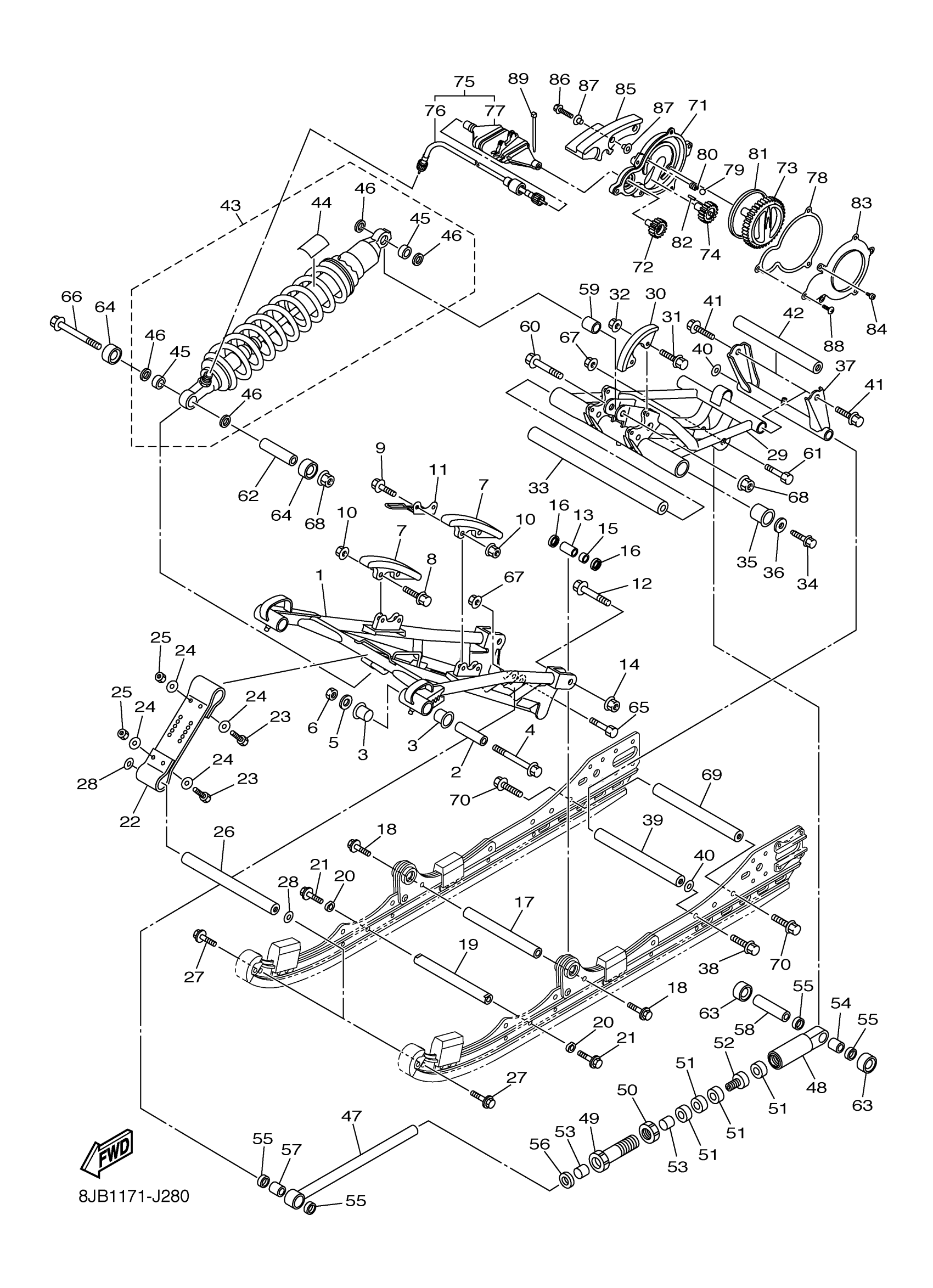

Yamaha RS90LTGTZW (RS VECTOR LTX GT) 8JB10 2010 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8JA-47331-00-00
Unavailable
2
COLLAR
90387-10042-00
$21.99
3
BUSH
90386-22002-00
$21.99
4
BOLT, FLANGE
90105-10150-00
$12.49
5
WASHER, PLATE
90201-10038-00
$5.60
6
NUT, SELF-LOCKING
90185-10012-00
$9.49
7
RUNNER, SLIDING 2
8F3-47422-01-00
$18.49
8
BOLT, FLANGE
95817-06020-00
$3.81
9
BOLT, FLANGE
95817-06025-00
Unavailable
10
NUT, U FLANGE
95604-06200-00
$8.49
11
PROTECTOR
8FR-47445-00-00
$25.99
12
BOLT, FLANGE
90105-10091-00
$5.60
13
COLLAR
90387-10095-00
$19.99
14
NUT, SELF-LOCKING
90185-10011-00
$5.60
15
BEARING, CYLINDRICAL(4PT)
93315-31750-00
$37.99
16
OIL SEAL
93109-17071-00
Unavailable
17
SHAFT 4
8JA-47486-00-00
Unavailable
18
BOLT, FLANGE
90105-10158-00
Unavailable
19
SHAFT 4
8GL-47486-00-00
Unavailable
20
SPACER
8GL-47341-00-00
Unavailable
21
BOLT, FLANGE
95817-10030-00
Unavailable
22
STOPPER 1
8GM-47495-00-00
Unavailable
23
BOLT, HEXAGON
97017-06025-00
Unavailable
24
WASHER, PLATE
90201-06081-00
Unavailable
25
NUT, NYLON
95707-06300-00
Unavailable
26
SHAFT 3
8FU-47485-00-00
Unavailable
27
BOLT, FLANGE
95817-10030-00
Unavailable
28
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
29
ARM, PIVOT 2
8JB-47332-01-00
Unavailable
30
SLIDER 1
8FT-47441-10-00
Unavailable
31
BOLT, FLANGE
95817-06020-00
$3.81
32
NUT, U FLANGE
95604-06200-00
$8.49
33
SHAFT 2
8FT-47475-00-00
Unavailable
34
BOLT
90109-10032-00
Unavailable
35
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
36
WASHER, PLATE
90201-10039-00
Unavailable
37
BRACKET 3
8FU-47417-11-00
Unavailable
38
BOLT, FLANGE
95817-10030-00
Unavailable
39
SHAFT 3
8FU-47485-00-00
Unavailable
40
WASHER PLATE (789)
90201-10136-00
Unavailable
41
BOLT, FLANGE
95817-10030-00
Unavailable
42
SHAFT 4
8FU-47486-00-00
Unavailable
43
SHOCK ABSORBER
8HD-47480-01-00
Unavailable
44
LABEL, WARNING
4AA-22259-60-00
Unavailable
45
BEARING
93315-31758-00
Unavailable
46
OIL SEAL
93109-17071-00
Unavailable
47
ROD, CONTROL 1
8JA-4745A-00-00
Unavailable
48
ROD, CONTROL 3
8JA-4745C-00-00
Unavailable
49
ROD, CONTROL 2
8JA-4745B-00-00
Unavailable
50
NUT
8JA-47368-00-00
Unavailable
51
WASHER
8GM-47384-10-00
Unavailable
52
STOPPER, CONT. 1
8FU-4745D-00-00
Unavailable
53
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
54
BEARING, CYLINDRICAL(1FN)
93315-31841-00
Unavailable
55
OIL SEAL
93109-18001-00
Unavailable
56
SEAL, TRIM DUST
C68-43822-00-00
Unavailable
57
COLLAR
90387-12051-00
Unavailable
58
COLLAR
90387-12052-00
Unavailable
59
COLLAR
90387-1012A-00
Unavailable
60
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
61
BOLT
90101-12043-00
Unavailable
62
COLLAR
90387-10034-00
Unavailable
63
SPACER
8JA-47341-00-00
Unavailable
64
SPACER
8FU-47341-00-00
Unavailable
65
BOLT
90101-12042-00
Unavailable
66
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
67
NUT, SELF-LOCKING
90185-12007-00
Unavailable
68
NUT, S/L FLANGE
95602-10200-00
Unavailable
69
SHAFT 3
8ES-47485-00-00
Unavailable
70
BOLT, FLANGE
90105-10209-00
Unavailable
71
HOUSING, ADJUSTER
8FU-474A1-00-00
Unavailable
72
GEAR, DRIVE
8FU-474A2-00-00
Unavailable
73
HANDLE, ADJUSTER
8FU-474A3-00-00
Unavailable
74
GEAR, STOPPER
8FU-474A4-00-00
Unavailable
75
ADJUSTER CABLE ASSY.
8FU-W474A-30-00
Unavailable
76
CABLE, ADJUSTER
8FU-474A5-30-00
Unavailable
77
PROTECTOR
8FU-47445-01-00
Unavailable
78
GASKET, ADJUSTER HOUSING
8FU-474A6-01-00
Unavailable
79
BALL
93501-04011-00
Unavailable
80
SPRING, COMPRESSION
90501-06M35-00
Unavailable
81
SEAL, ADJUSTER HANDLE
8FU-474A7-00-00
Unavailable
82
PIN,DOWEL (603)
93603-12007-00
Unavailable
83
PLATE, GUIDE
8FU-47467-00-00
Unavailable
84
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
85
SLIDER 1
8FU-47441-11-00
Unavailable
86
BOLT, FLANGE
95817-06020-00
$3.81
87
COLLAR (3L1)
90387-07717-00
Unavailable
88
SCREW
90149-06138-00
Unavailable
89
CLAMP
90464-16061-00
Unavailable
