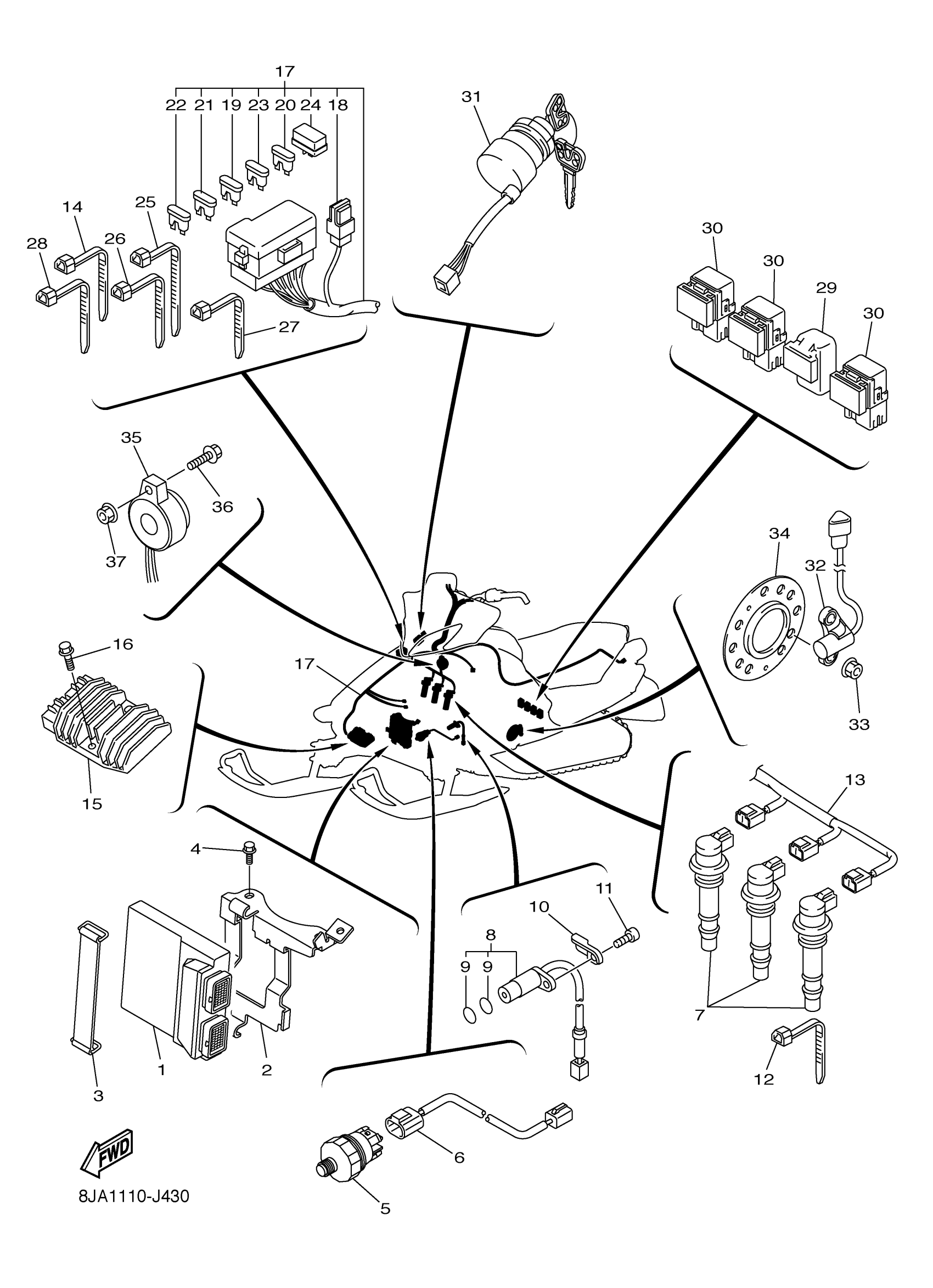

Yamaha RS90LTGTZW (RS VECTOR LTX GT) 8JB10 2010 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

8JA-8591A-00-00

$935.99

2

BRACKET, UNIT

8HF-85991-00-00

Unavailable

3

BAND, BATTERY

2T4-82131-00-00

$8.99

4

BOLT, FLANGE

95812-06010-00

$2.98

5

OIL PRESSURE SWITCH

8FP-82504-01-00

$71.99

6

WIRE, SUB-LEAD

8GL-82318-00-00

$26.99

7

IGNITION COIL ASSY

8ES-82310-00-00

$159.99

8

PICK-UP ASSY

8GL-81670-01-00

$140.99

9

O-RING 1

5VY-8A8E1-00-00

$6.99

10

PLATE

5VY-15589-02-00

$4.99

11

BOLT,SOCKET

91317-06016-00

$1.25

12

CLAMP(4FM)

90464-15195-00

$4.41

13

LEAD WIRE ASSY

8HF-81515-00-00

Unavailable

14

CLAMP(4FM)

90464-15195-00

$4.41

15

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$323.99

16

. BOLT, FLANGE

90105-06184-00

Unavailable

17

WIRE HARNESS ASSY

8JA-82590-00-00

Unavailable

18

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

19

FUSE

5JJ-82151-20-00

Unavailable

20

FUSE (15A)

67F-82151-50-00

Unavailable

21

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

22

FUSE (5A)

67F-82151-20-00

Unavailable

23

. FUSE (3A)

67F-82151-30-00

Unavailable

24

DIODE ASSY

4WA-81980-00-00

Unavailable

25

CLAMP(4FM)

90464-15195-00

$4.41

26

CLAMP(4FM)

90464-15195-00

$4.41

27

CLAMP

90464-13077-00

Unavailable

28

CLAMP

90464-14006-00

Unavailable

29

RELAY ASSY

5DM-81950-01-00

Unavailable

30

RELAY ASSY (8FP-01)

8FP-81950-01-00

Unavailable

31

MAIN SWITCH ASSY

8HF-82510-00-00

Unavailable

32

SENSOR, SPEED

8GK-83755-12-00

Unavailable

33

NUT, NYLON

95717-08300-00

Unavailable

34

HOUSING, FRONT AXLE

8EK-47551-00-00

Unavailable

35

BUZZER

8GL-83383-00-00

Unavailable

36

SCREW, WITH WASHER

90159-05035-00

Unavailable

37

NUT, FLANGE

95702-05500-00

Unavailable
