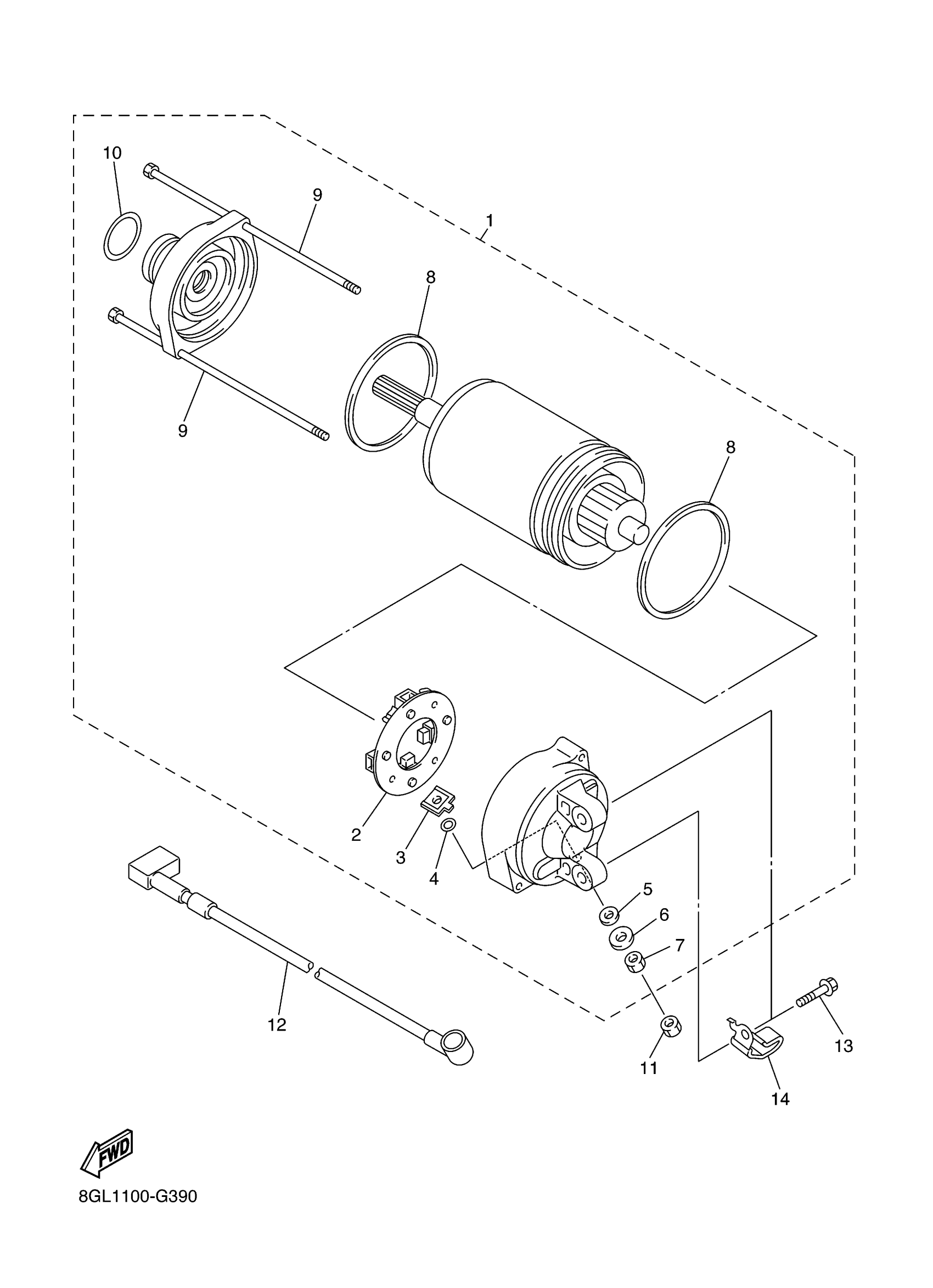

Yamaha RS90LTGTAS (RS VECTOR LTX GT) 8JB2 2011 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

8GL-81890-01-00

$312.99

2

BRUSH SET

2S3-81801-00-00

$82.99

3

BUSH, TERMINAL

2S3-8182G-00-00

Unavailable

4

O-RING (26H)

93210-06632-00

$8.49

5

WASHER, PLAIN

8FA-8181L-00-00

Unavailable

6

WASHER

1D7-81835-00-00

$2.29

7

NUT(650)

95380-06700-00

$8.49

8

GASKET

5PX-81861-00-00

Unavailable

9

SCREW

8ES-81846-01-00

$5.49

10

O-RING (437)

93210-24235-00

$7.49

11

NUT(650)

95380-06700-00

$8.49

12

CORD COMP.

8ES-8183G-00-00

Unavailable

13

BOLT, FLANGE

95812-08030-00

$3.81

14

CLAMP

90465-08030-00

Unavailable
