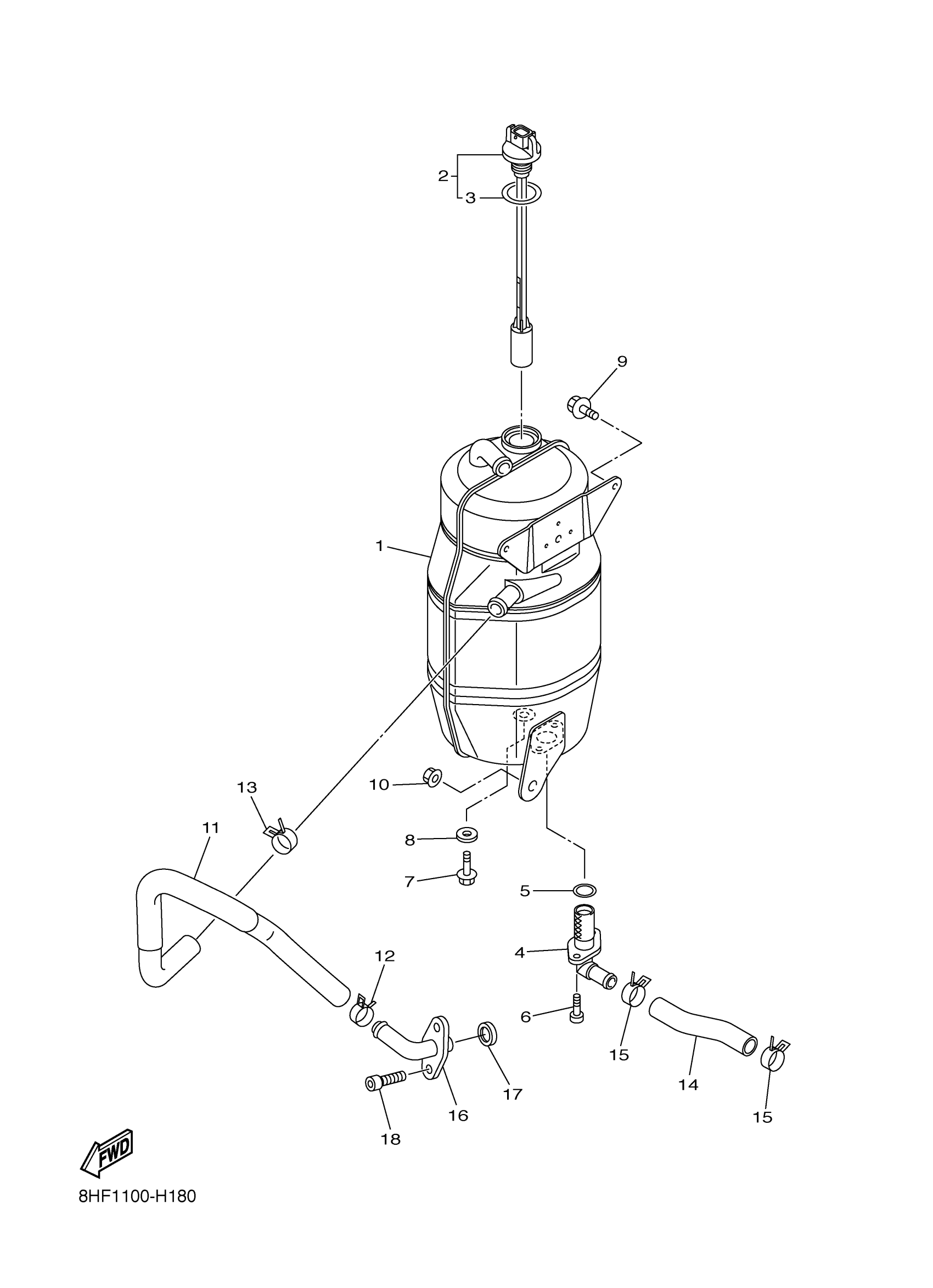

Yamaha RS90LTGTAS (RS VECTOR LTX GT) 8JB2 2011 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8HF-21751-01-00

Unavailable

2

OIL LEVEL GAUGE ASSY

8GL-85720-00-00

$60.99

3

O-RING

8FP-85075-00-00

$11.49

4

OIL PIPE COMP. 2

8GL-13406-00-00

$121.99

5

O-RING

93210-24001-00

$8.49

6

BOLT(3MA)

91312-06016-00

$5.60

7

BOLT, FLANGE

95817-08012-00

$5.49

8

GASKET(3AJ)

90430-08204-00

$8.99

9

BOLT, FLANGE

95817-06016-00

$2.75

10

NUT, SELF-LOCKING

95602-08200-00

$3.20

11

HOSE, OIL 1

8GM-13464-00-00

Unavailable

12

CLIP(34X)

90467-22097-00

$9.49

13

CLIP(34X)

90467-22097-00

$9.49

14

HOSE, OIL 2

8HF-13465-00-00

Unavailable

15

CLIP(34X)

90467-22097-00

$9.49

16

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

Unavailable

17

O-RING (26H)

93210-16629-00

Unavailable

18

BOLT(3MA)

91312-06016-00

$5.60
