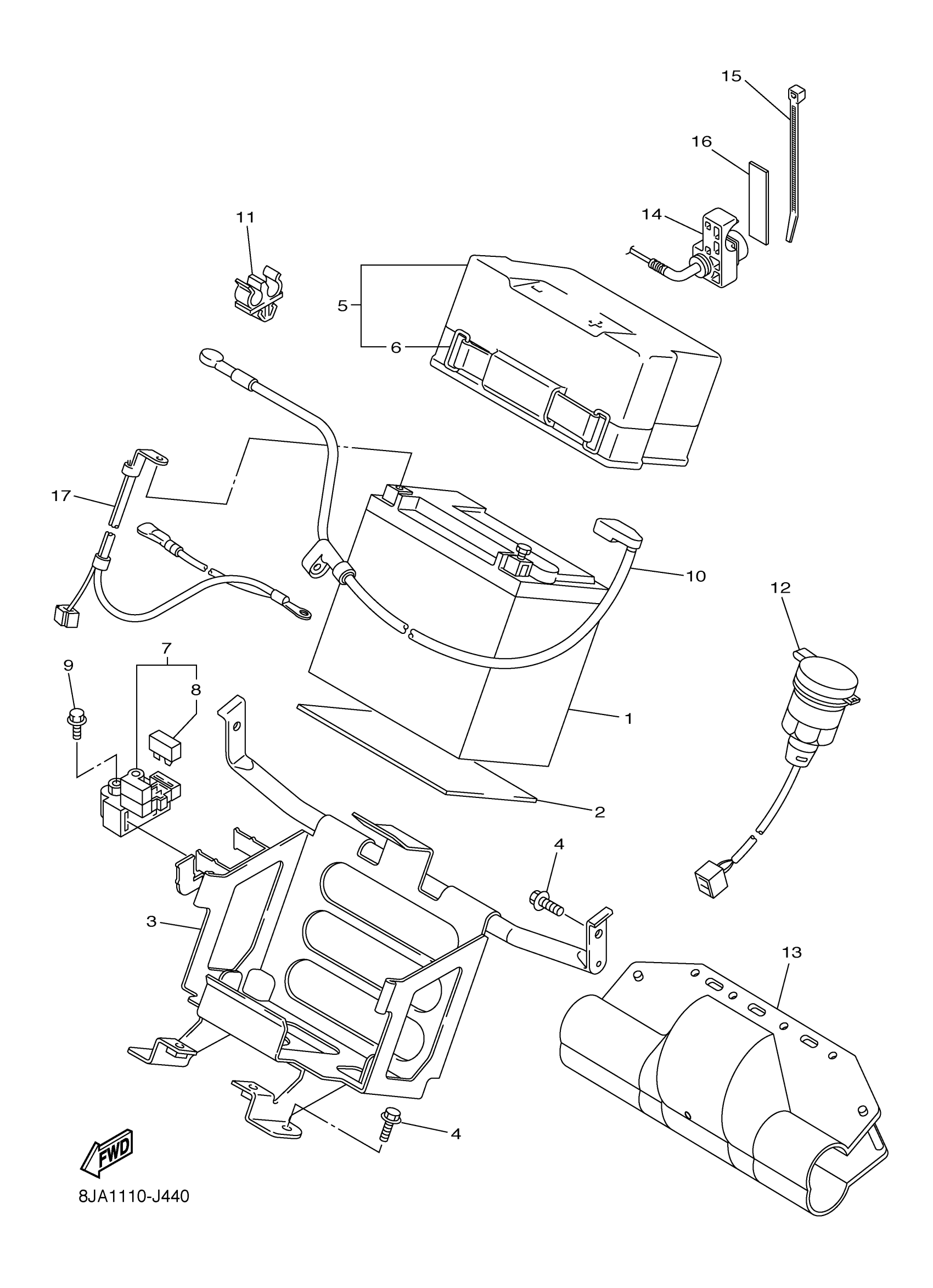

Yamaha RS90LTGTAS (RS VECTOR LTX GT) 8JB2 2011 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

2

SEAT, BATTERY

8FA-82122-00-00

Unavailable

3

BRACKET, BATTERY

8HF-2199G-00-00

Unavailable

4

BOLT, FLANGE

95814-08016-00

$9.49

5

COVER, BATTERY

8FA-82129-00-00

$41.99

6

BAND, BATTERY

8DM-82131-10-00

$16.49

7

STARTER RELAY ASSY

8HG-81940-00-00

$127.99

8

FUSE (10A)

42X-82151-00-00

$4.32

9

BOLT, FLANGE

95022-06008-00

$8.49

10

WIRE, PLUS LEAD

8HF-82115-00-00

Unavailable

11

CLAMP(87A)

90464-08126-00

$1.54

12

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

13

COVER

8FP-8252U-00-00

Unavailable

14

TERMINAL COMP.

8HK-8254B-00-00

Unavailable

15

CLAMP(3XW)

90464-35132-00

$9.49

16

DAMPER

8HF-84527-00-00

Unavailable

17

WIRE, MINUS LEAD

8GM-82116-00-00

Unavailable
