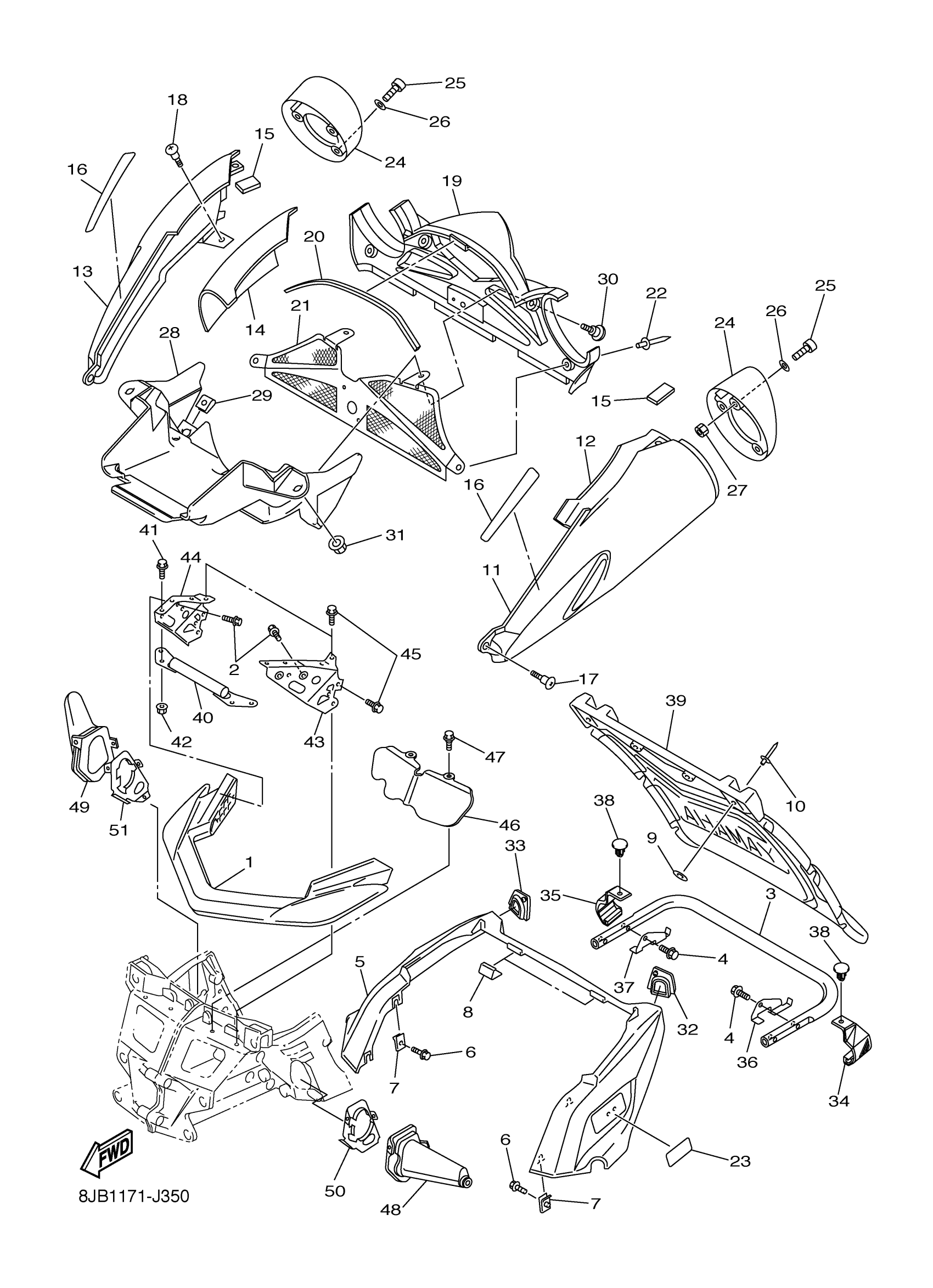

Yamaha RS90LTGTAS (RS VECTOR LTX GT) 8JB2 2011 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BUMPER, REAR 1
8FG-77541-01-00
$187.99
4
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
5
BUMPER, REAR 2
8EP-77542-00-00
$73.99
6
BOLT, FLANGE
95817-06016-00
$2.75
7
NUT, SPRING(4ES)
90183-06069-00
Unavailable
8
TAPE 4
8FA-7717H-00-00
$1.25
9
WASHER, PLATE
90201-04027-00
$3.02
10
RIVET, BLIND
90267-47200-00
$2.75
11
PROTECTOR 1
8FP-77551-01-P2
$115.99
12
LINING, SHROUD 1
8FP-77261-00-00
Unavailable
13
PROTECTOR 2
8FP-77552-01-P2
Unavailable
14
LINING, SHROUD 2
8FP-77262-00-00
Unavailable
15
LINING, SHROUD 3
8FP-77263-00-00
$4.46
16
PROTECTOR, SIDE 1
8FR-77561-00-00
Unavailable
17
SCREW, BINDING
90154-06009-00
Unavailable
18
BOLT
90109-06220-00
Unavailable
19
COVER, TAILLIGHT
8FP-84516-01-00
Unavailable
20
TRIM 8
8FP-77234-00-00
Unavailable
21
LOUVER 1
8FP-77441-00-00
Unavailable
22
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
23
SEAL, BODY SIDE 1
8FT-7814E-00-00
Unavailable
24
CAP
8FP-77517-00-00
Unavailable
25
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
26
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
27
NUT, HEXAGON
95380-06600-00
Unavailable
28
BRACKET, TAILLIGHT
8FP-2117E-01-00
Unavailable
29
NUT, SPRING(4ES)
90183-06069-00
Unavailable
30
BOLT
90109-06220-00
Unavailable
31
NUT, U FLANGE
95604-06200-00
Unavailable
32
GROMMET 1
8EP-77431-00-00
Unavailable
33
GROMMET 2
8EP-77432-00-00
Unavailable
34
COVER, 3
8EP-77563-00-00
Unavailable
35
COVER, 4
8EP-77564-00-00
Unavailable
36
PROTECTOR 4
8EP-77554-00-00
Unavailable
37
PROTECTOR 5
8EP-77555-00-00
Unavailable
38
PLUG
90338-08220-00
Unavailable
39
FLAP
8GT-K7595-00-00
Unavailable
40
BRKT. ,FR. FOOD
8FP-21979-00-00
Unavailable
41
BOLT, FLANGE
95817-06014-00
Unavailable
42
NUT, FLANGE
95702-06500-00
Unavailable
43
BRACKET, FRONT
8FA-21949-00-00
Unavailable
44
BRACKET, FRONT BUMPER
8FA-21959-00-00
Unavailable
45
BOLT, FLANGE
95814-08016-00
Unavailable
46
COVER, FRONT
8FP-22865-00-00
Unavailable
47
BOLT
90109-06261-00
Unavailable
48
COVER 1
8FU-2198F-01-00
Unavailable
49
COVER 3
8FU-2198J-01-00
Unavailable
50
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
51
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
