Description

Price

1

TANK, OIL

8FG-21751-02-00

$565.99

2

OIL PIPE COMP. 2

8FG-13406-00-00

Unavailable

3

O-RING (603)

93210-19026-00

$8.49

4

BOLT,SOCKET

91317-06016-00

$1.25

5

BOLT, FLANGE

95817-08012-00

$5.49

6

GASKET(3AJ)

90430-08204-00

$8.99

7

OIL LEVEL GAUGE ASSY

8FA-85720-01-00

$87.99

8

CLIP

90468-08104-00

$3.93

9

CLIP (7K7)

90467-11044-00

$8.49

10

BOLT, FLANGE

95817-06016-00

$2.75

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

VALVE ASSY.

8ES-13520-00-00

Unavailable

13

PIPE, OIL TANK BREATHER

8ES-21745-00-00

Unavailable

14

CLIP

90468-08104-00

$3.93

15

PIPE, OIL TANK

8ES-2174N-00-00

Unavailable

16

CLIP (7K7)

90467-11044-00

$8.49

17

PIPE 1

8ES-21816-00-00

Unavailable

18

CLIP (23E)

90467-20085-00

Unavailable

19

CLIP (21V)

90467-22080-00

Unavailable

20

BOLT, FLANGE

95817-06020-00

Unavailable

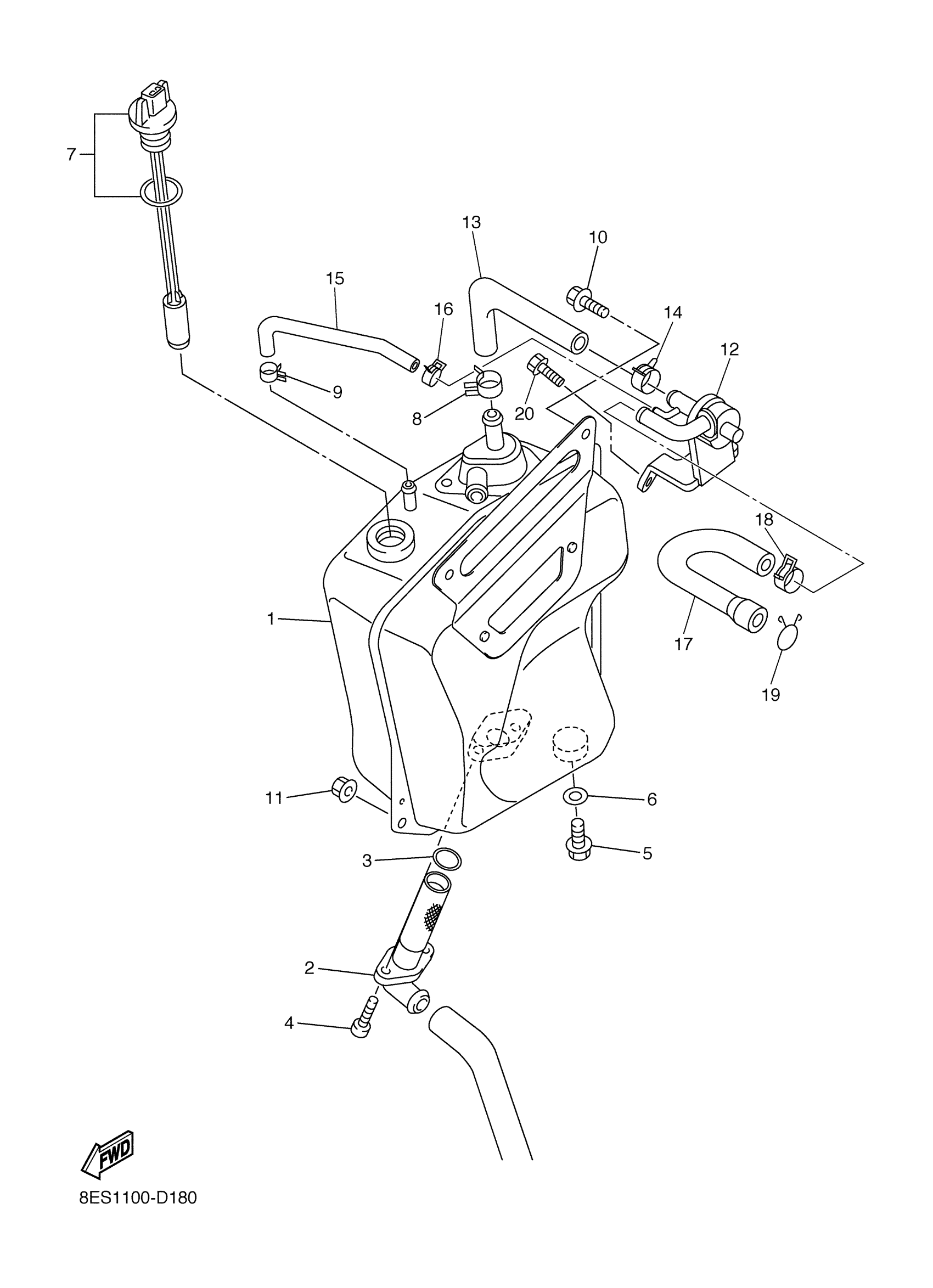

Yamaha RS90K (RS Vector) 8ES1 2005 OIL TANK Diagram

TANK, OIL

OIL PIPE COMP. 2

O-RING (603)

BOLT,SOCKET

BOLT, FLANGE

GASKET(3AJ)

OIL LEVEL GAUGE ASSY

CLIP

CLIP (7K7)

BOLT, FLANGE

NUT, SELF-LOCKING

VALVE ASSY.

PIPE, OIL TANK BREATHER

CLIP

PIPE, OIL TANK

CLIP (7K7)

PIPE 1

CLIP (23E)

CLIP (21V)

BOLT, FLANGE
