Description

Price

1

COVER, HEADLIGHT

8ES-W7725-00-00

$352.99

2

DAMPER 1

8ES-77198-00-00

Unavailable

3

PLATE 1

8FA-77185-00-00

$57.99

4

PLATE 2

8FA-77186-00-00

$57.99

5

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

6

SCREW, BINDING

98907-06014-00

$7.99

7

WINDSHIELD COMP.

8GG-K7210-00-00

Unavailable

7

WINDSHIELD COMP.

8GX-K7210-00-00

Unavailable

8

. TRIM, UPPER

8FJ-K7213-00-00

Unavailable

9

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

10

NUT(1KT)

90179-05523-00

$8.49

11

FAIRING

8FA-77231-A1-33

$214.99

11

FAIRING

8FA-77231-A0-P2

Unavailable

12

NUT, SPRING(4ES)

90183-06069-00

Unavailable

13

SCREW, BINDING

90154-06009-00

$4.61

14

TRIM, LOWER

8FA-77214-00-00

Unavailable

15

TRIM 3

8FA-77215-00-00

Unavailable

16

NUT, SPRING(4ES)

90183-06069-00

Unavailable

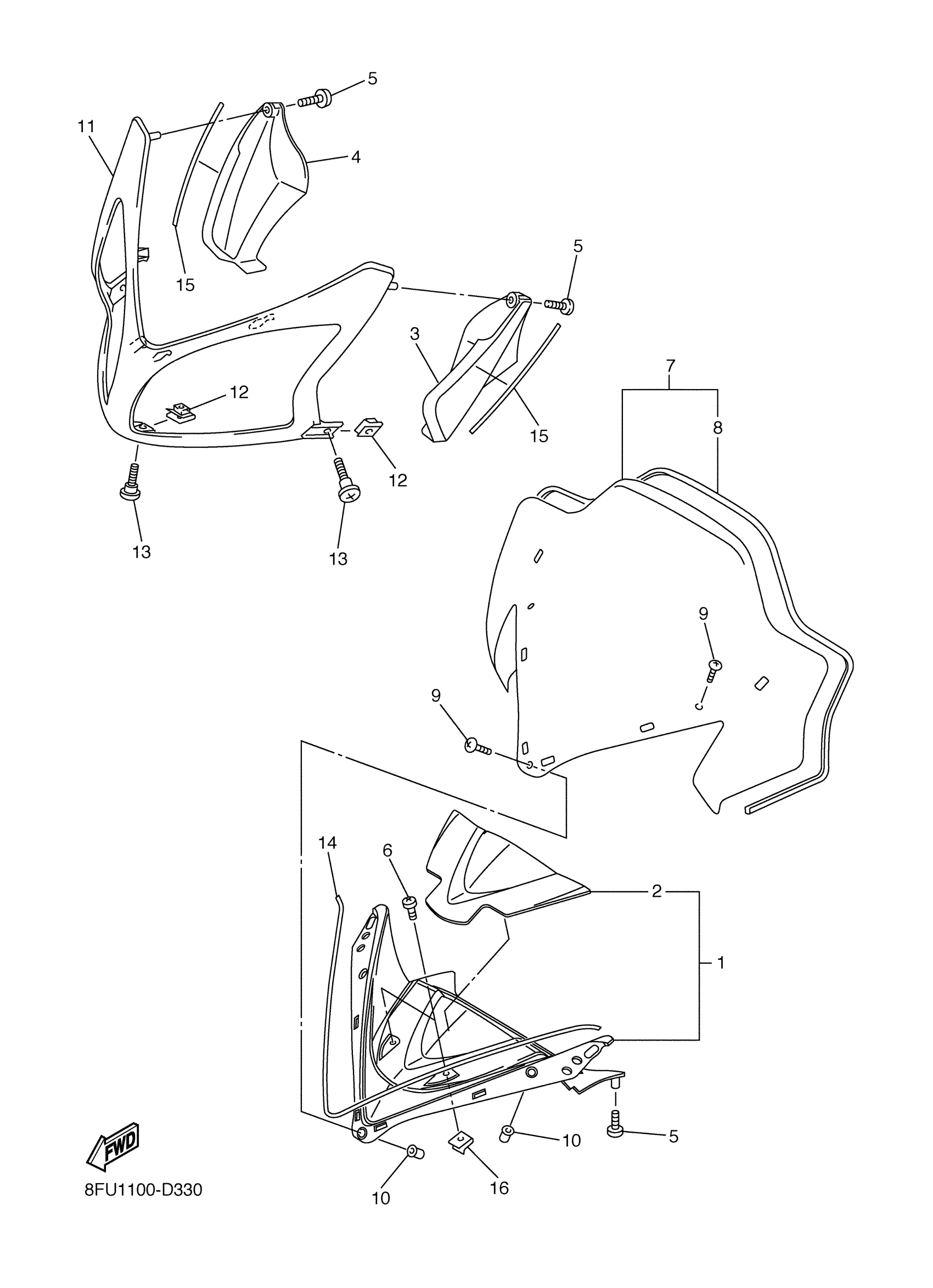

Yamaha RS90GTW (VECTOR GT) 8GG3 2007 WINDSHIELD Diagram

COVER, HEADLIGHT

DAMPER 1

PLATE 1

PLATE 2

SCREW, TAPPING(4MV)

SCREW, BINDING

WINDSHIELD COMP.

WINDSHIELD COMP.

. TRIM, UPPER

SCREW, ROUND HEAD(1UX)

NUT(1KT)

FAIRING

FAIRING

NUT, SPRING(4ES)

SCREW, BINDING

TRIM, LOWER

TRIM 3

NUT, SPRING(4ES)
