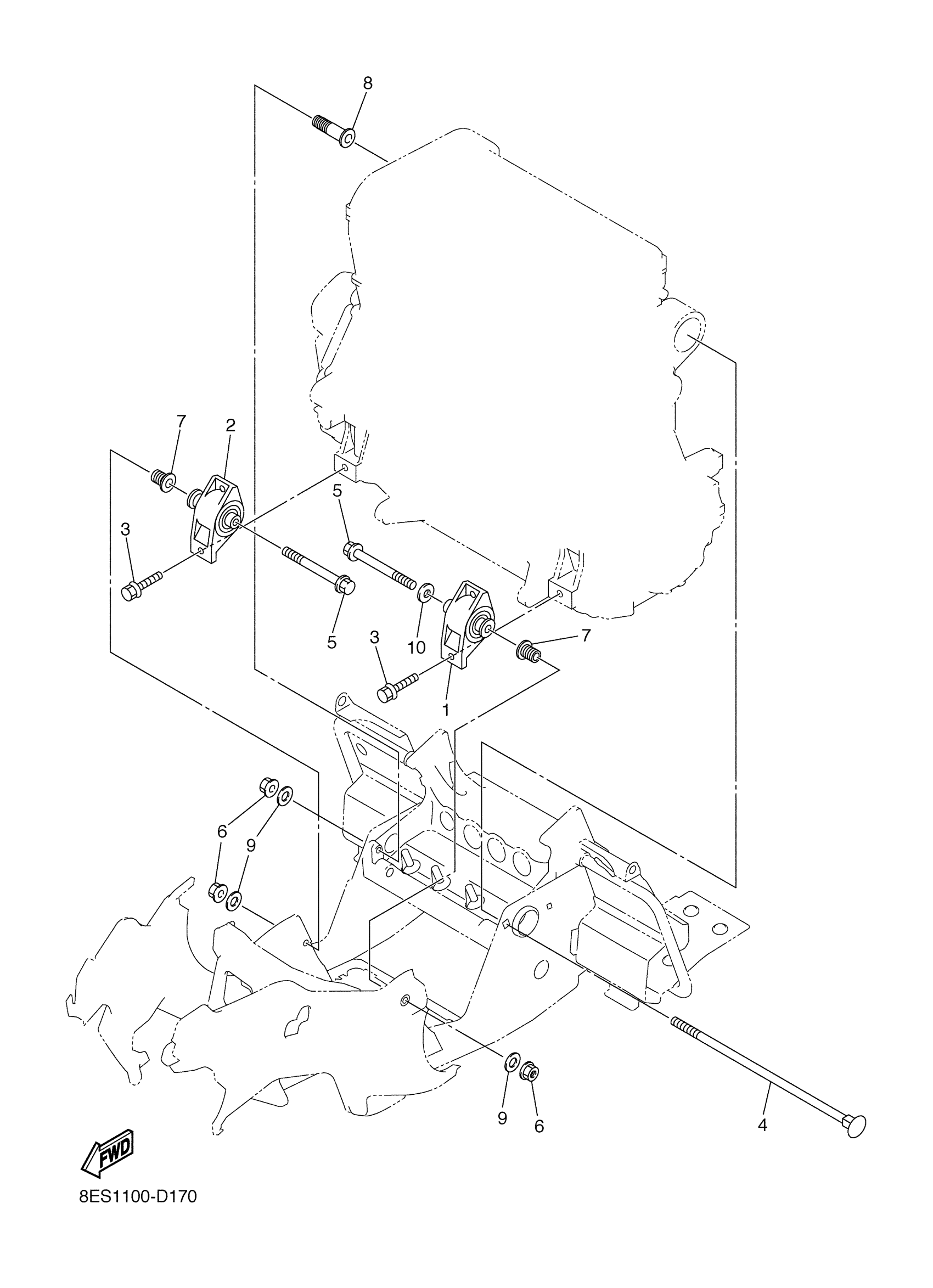

Yamaha RS90GTL (VECTOR GT) 8GG1 2006 ENGINE BRACKET Diagram

#

Description
Price

1

ENGINE BRACKET COMP.

8ES-21410-00-00

Unavailable

2

ENGINE BRACKET COMP. 2

8ES-21420-00-00

Unavailable

3

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

4

BOLT, ENGINE MOUNT

8FA-21481-02-00

Unavailable

5

BOLT, FLANGE

95817-12100-00

$8.49

6

NUT(3EF)

90179-12657-00

$5.60

7

BOLT, ENGINE ADJUSTING

8FG-21495-00-00

Unavailable

8

BOLT

8ES-2149C-00-00

Unavailable

9

WASHER, PLATE(8CJ)

90201-120T5-00

$7.49

10

WASHER, PLATE (5E3)

90201-125A3-00

$2.17
