- RS90GTAXW (RS VECTOR GT 40TH ANNIVERSARY) 8HC3 2008
RADIATOR HOSE

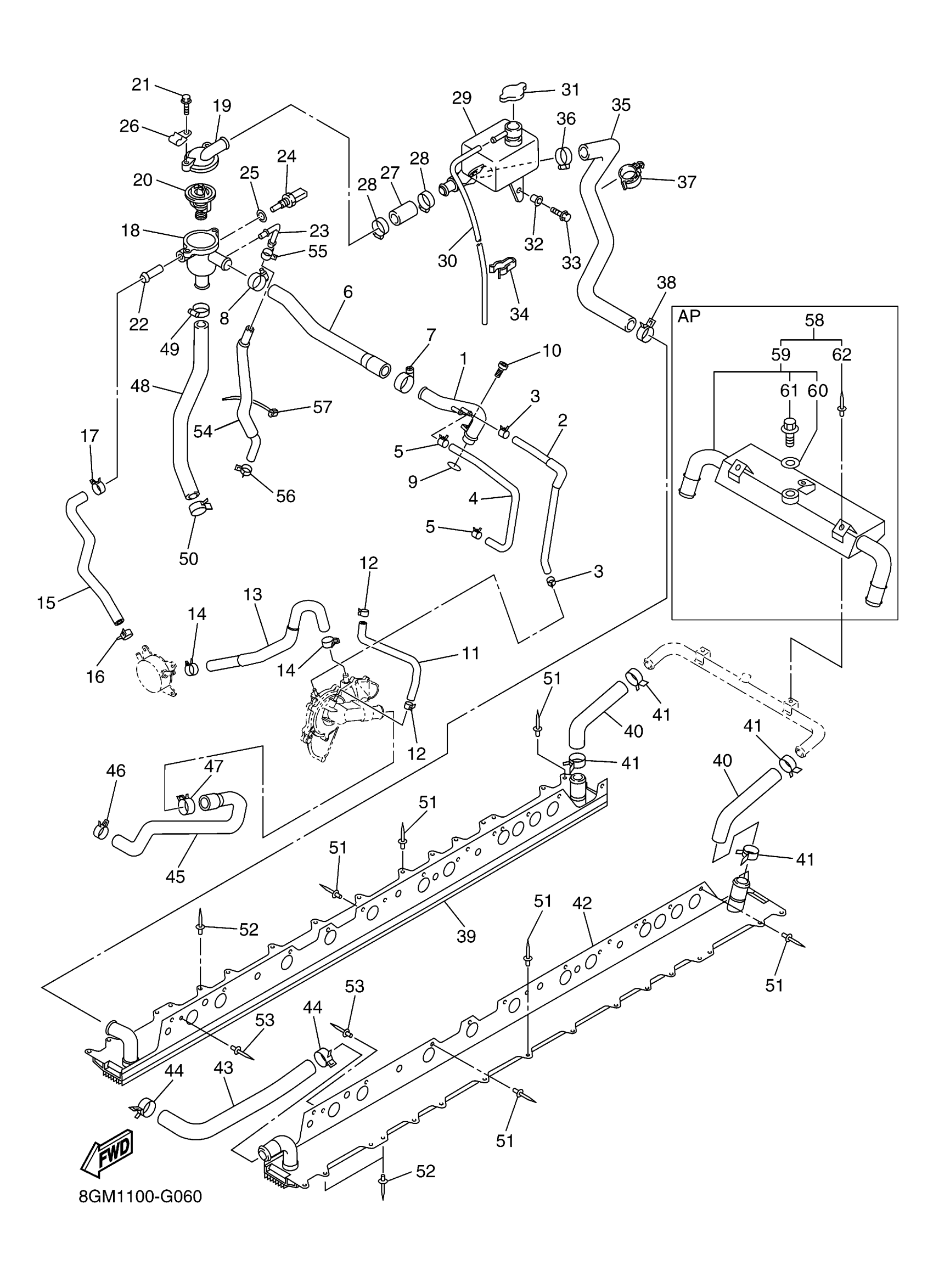

Yamaha RS90GTAXW (RS VECTOR GT 40TH ANNIVERSARY) 8HC3 2008 RADIATOR HOSE Diagram
#
1
PIPE 2
8ES-12482-00-00
Unavailable
2
PIPE 5
8ES-12485-01-00
Unavailable
3
CLIP(3BM)
90467-10135-00
$8.49
4
HOSE 2
8ES-12577-00-00
Unavailable
5
CLIP(3BM)
90467-10135-00
$8.49
6
HOSE 2
8ES-1243E-00-00
Unavailable
7
HOSE CLAMP ASSY(3GM)
90450-38040-00
$17.99
8
HOSE CLAMP ASSY
90450-35001-00
$5.60
9
O-RING
93210-26006-00
$8.49
10
BOLT(3MA)
91312-06016-00
$5.60
11
HOSE 3
8ES-12578-00-00
Unavailable
12
CLIP
90467-110A2-00
Unavailable
13
HOSE 5
8ES-12588-00-00
Unavailable
14
CLIP(3TB)
90467-17128-00
$8.49
15
HOSE 6
8GM-12589-00-00
Unavailable
16
CLIP(3TB)
90467-17128-00
$8.49
17
CLIP(3TB)
90467-17128-00
$8.49
18
HOUSING, THERMOSTA
8FA-W1258-02-00
Unavailable
19
COVER, THERMOSTAT
5EB-12413-00-00
Unavailable
20
THERMOSTAT ASSY
8FA-12410-00-00
Unavailable
21
. BOLT, FLANGE
95027-06020-00
Unavailable
22
JOINT, HOSE 3
8FA-12584-00-00
Unavailable
23
JOINT, HOSE 4
8FA-12594-00-00
Unavailable
24
THERMOSENSOR ASSY
8CC-85790-01-00
Unavailable
25
WASHER, PLATE
90201-12790-00
Unavailable
26
. CLAMP
90465-06M28-00
Unavailable
27
HOSE,3
8FA-1243F-00-00
Unavailable
28
HOSE CLAMP ASSY
90450-35001-00
$5.60
29
TANK, RESERVE
8FA-1249B-02-00
Unavailable
30
HOSE (L600)
90445-083J5-00
Unavailable
31
CAP, RADIATOR
4FL-12462-00-00
Unavailable
32
COLLAR (838-84757-00)
90387-06024-00
Unavailable
33
BOLT, FLANGE
95817-06020-00
Unavailable
34
CLAMP(53Y)
90464-15065-00
Unavailable
35
HOSE, 4
8FA-1244G-01-00
Unavailable
36
HOSE CLAMP ASSY
90450-35001-00
$5.60
37
CLAMP
90464-32002-00
Unavailable
38
CLIP (8M6)
90467-28046-00
Unavailable
39
HEAT EXCHANGER
8FJ-1240F-01-00
Unavailable
40
PIPE 6
8FA-12476-00-00
Unavailable
41
CLIP (8M6)
90467-28046-00
Unavailable
42
HEAT EXCHANGER
8FJ-1240E-01-00
Unavailable
43
PIPE 7
8FA-12477-00-00
Unavailable
44
CLIP (8M6)
90467-28046-00
Unavailable
45
PIPE 8
8ES-1248A-00-00
Unavailable
46
CLIP (8M6)
90467-28046-00
Unavailable
47
CLIP
90467-310A0-00
Unavailable
48
PIPE 9
8HF-1248E-00-00
Unavailable
49
HOSE CLAMP ASSY
90450-35001-00
$5.60
50
CLIP (8M6)
90467-28046-00
Unavailable
51
RIVET, BLIND
90267-47195-00
Unavailable
52
RIVET, BLIND
90267-47195-00
Unavailable
53
RIVET, BLIND
90267-47197-00
Unavailable
54
HOSE 4
8FA-12579-00-00
Unavailable
55
CLIP(3BM)
90467-10135-00
$8.49
56
CLIP (7K7)
90467-11044-00
Unavailable
57
CLAMP(4FM)
90464-15195-00
Unavailable
58
HEAT EXCHANGER KIT
8ET-124A0-00-00
Unavailable
59
HEAT EXCHANGER ASSY 4
8ET-1241A-02-00
Unavailable
60
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
61
BOLT, FLANGE
95817-06016-00
Unavailable
62
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
