FUEL TANK

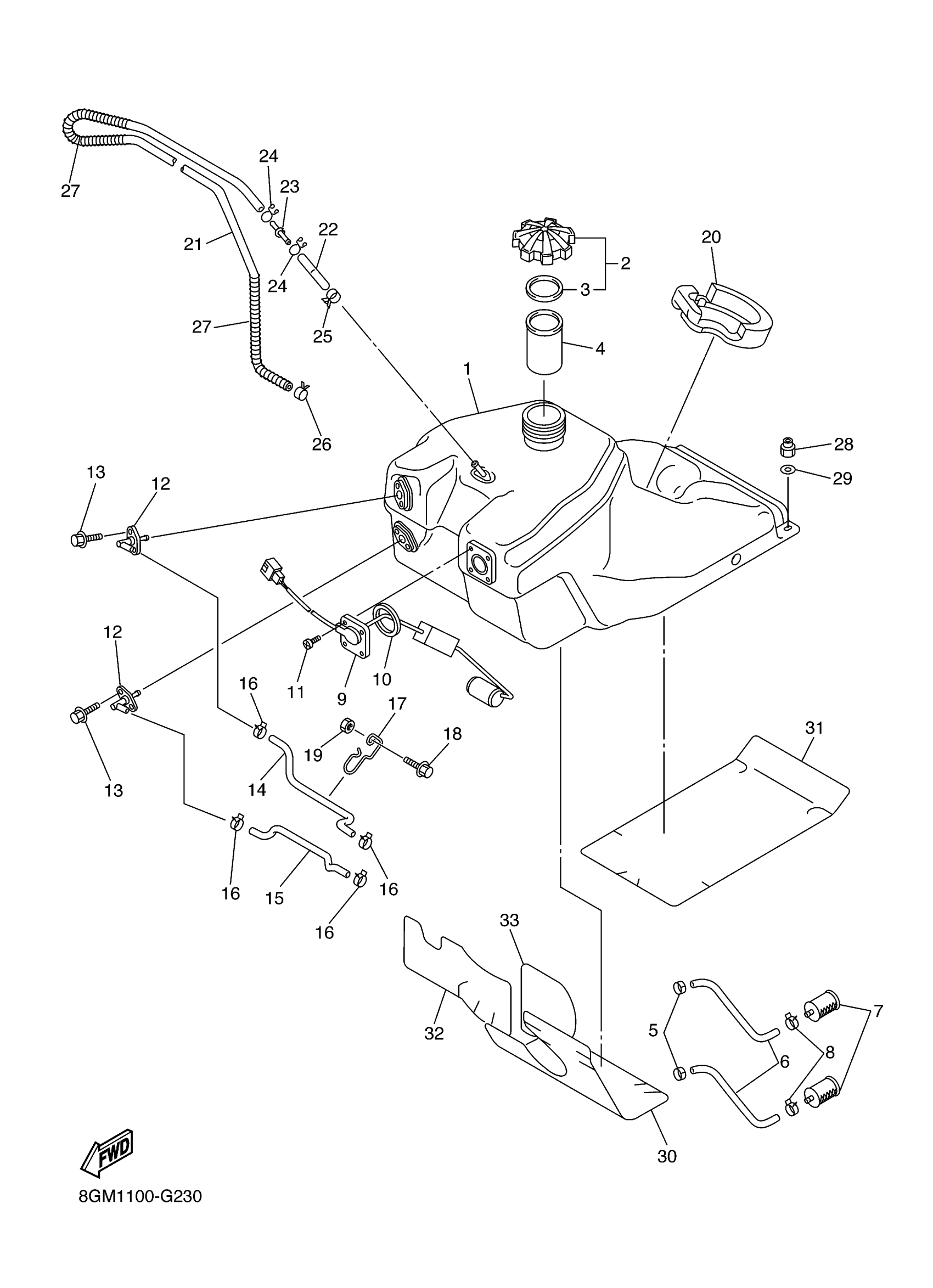

Yamaha RS90GTAXW (RS VECTOR GT 40TH ANNIVERSARY) 8HC3 2008 FUEL TANK Diagram
#
1
TANK, FUEL
8GM-24111-00-00
Unavailable
2
CAP ASSY
8FG-24610-01-00
$40.99
3
GASKET, CAP 1
8HV-24641-00-00
Unavailable
4
TUBE, FILLER
8FP-24114-00-00
Unavailable
5
CLIP
90468-04092-00
Unavailable
6
PIPE, SUCTION 1
8FA-24335-01-00
Unavailable
7
FILTER ASSY
8H5-24560-00-00
Unavailable
8
CLIP (7K7)
90467-11044-00
$8.49
9
SENDER UNIT ASSY, FUEL METER
8FR-85752-00-00
Unavailable
10
O-RING (102)
93210-41041-00
$7.49
11
SCREW, BIND
98902-05008-00
$1.70
12
SUCTION PIPE COMP. 1
8CR-24301-01-00
Unavailable
13
BOLT, FLANGE
95817-06016-00
$2.75
14
PIPE, FUEL 1
8GM-24311-00-00
Unavailable
15
PIPE, FUEL 1
8GM-24311-10-00
Unavailable
16
CLIP (7K7)
90467-11044-00
$8.49
17
HOLDER
8GM-2419A-00-00
Unavailable
18
BOLT, FLANGE
95817-06016-00
$2.75
19
NUT, U FLANGE
95604-06200-00
Unavailable
20
DAMPER, LOCATING 1
8FP-24181-01-00
Unavailable
21
TUBE, FLEXIBLE VINYL
91A20-05110-00
Unavailable
22
PIPE, JOINT
8FR-24461-00-00
Unavailable
23
PIPE, JOINT
8H8-24376-00-00
Unavailable
24
CLIP (8L2)
90467-08017-00
Unavailable
25
CLIP (8A1)
90467-09026-00
Unavailable
26
CLIP (8A1)
90467-09026-00
Unavailable
27
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
28
NUT, NYLON
95717-08300-00
Unavailable
29
WASHER, PLATE
90201-08053-00
Unavailable
30
PROTECTOR, FUEL TANK
8FP-24141-00-00
Unavailable
31
PROTECTOR, FUEL TANK
8FA-24141-10-00
Unavailable
32
INSULATOR, FUEL TANK 1
8FP-2416F-00-00
Unavailable
33
INSULATOR, FUEL TANK 1
8FP-2416F-10-00
Unavailable
